8061SM20.32

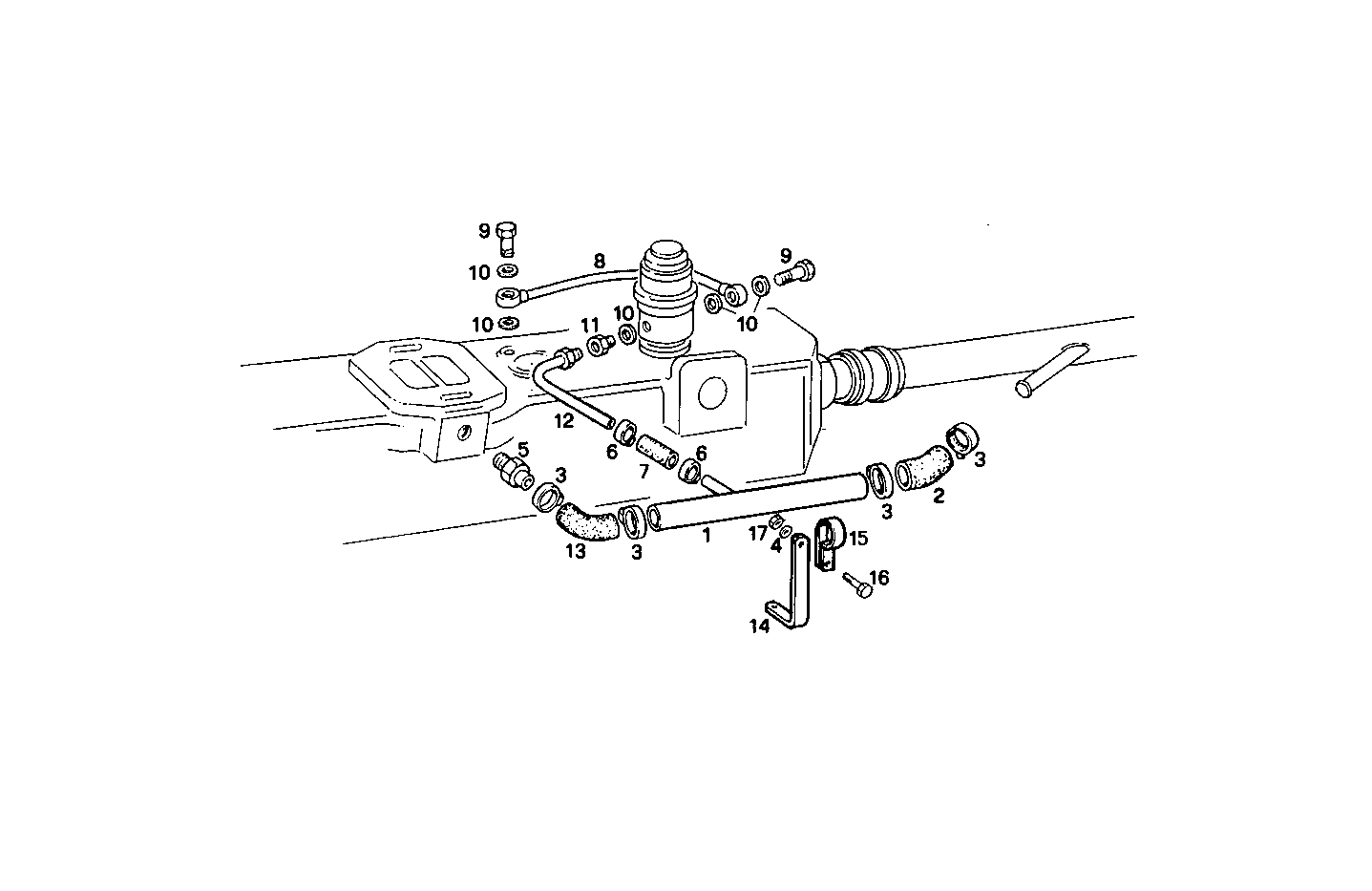

3210.082/03 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8017438 WATER PIPE
2 17738187 WATER HOSE
3 17764593 CLIP Ø20/32 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 4633506 THREADED UNION M22X1,5
6 17764393 CLIP Ø12/20 MM
7 4931996 WATER HOSE
8 8011619 WATER PIPE
9 4864083 SCREW CONNECTOR M14X1,5X30 MM
10 98474308 SEAL GASKET Ø14X22 MM
11 16500214 THREADED UNION M14X1,5/M16X1,5
12 8017437 WATER PIPE
13 98421373 RUBBER SLEEVE
14 8106380 RETAINER
15 4763804 FASTENING BRACKET
16 16605424 SCREW M8X16 MM (8.8)
17 17037931 HEXAGON NUT M8X1,25
