8061SM20.42

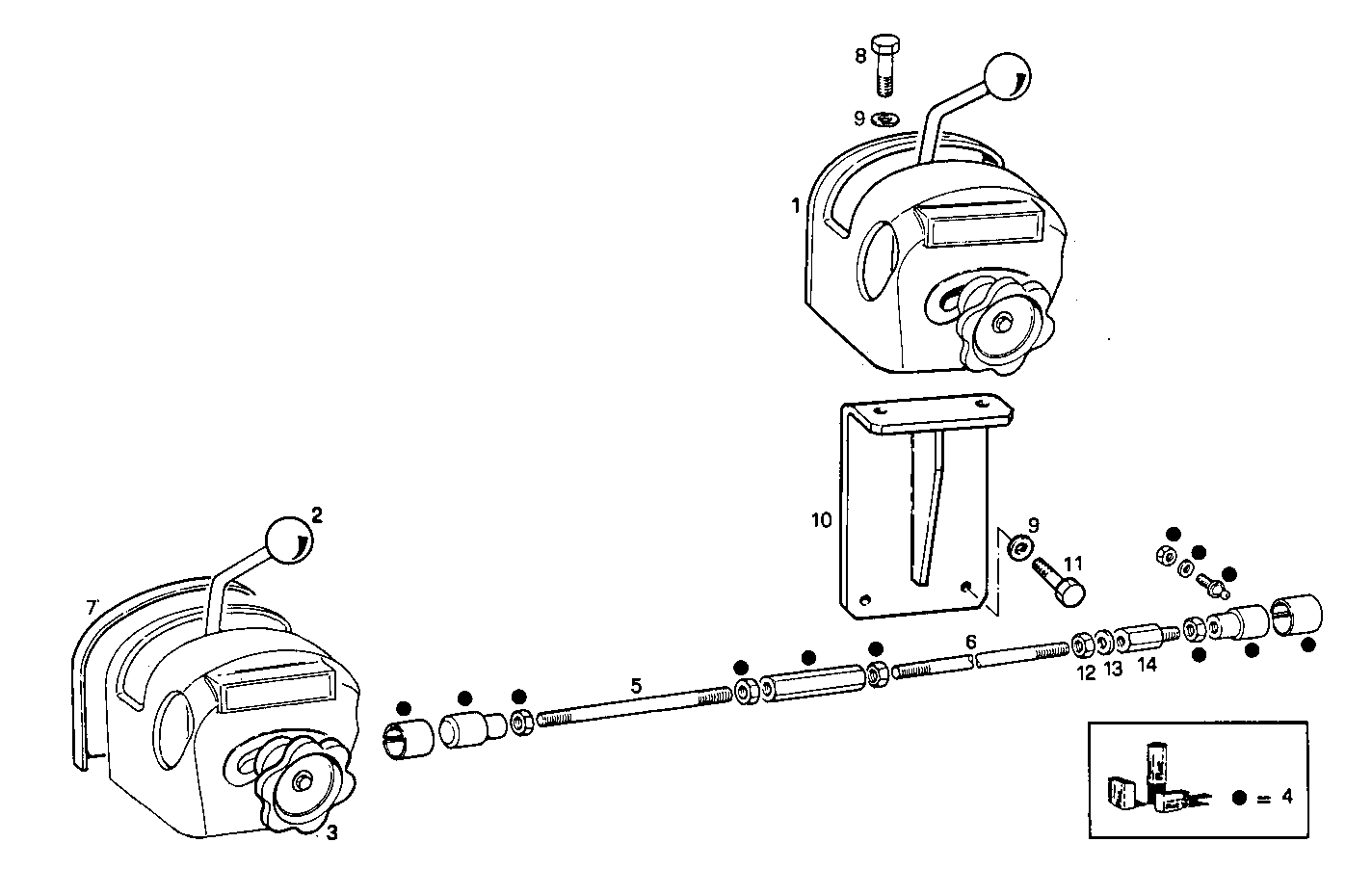

A24020022 HAND ACCELERATOR - assembled
| Item | Part number | Description |
|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR ASSY |
| 2 | 4927041 | HANDLE BALL |
| 3 | 4927042 | HANDWHEEL |
| 4 | 8090372 | KIT |
| 5 | 4936606 | TIE ROD |
| 6 | 4912940 | TIE ROD |
| 7 | 4927115 | COVER |
| 8 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 8017582 | RETAINER |
| 11 | 11306921 | SCREW M10X1,25X30 |
| 12 | 16979331 | HEXAGON NUT M6X1 |
| 13 | 17088474 | WASHER Ø6X12 MM |
| 14 | 8105581 | STUD |
