8061SRi10.05

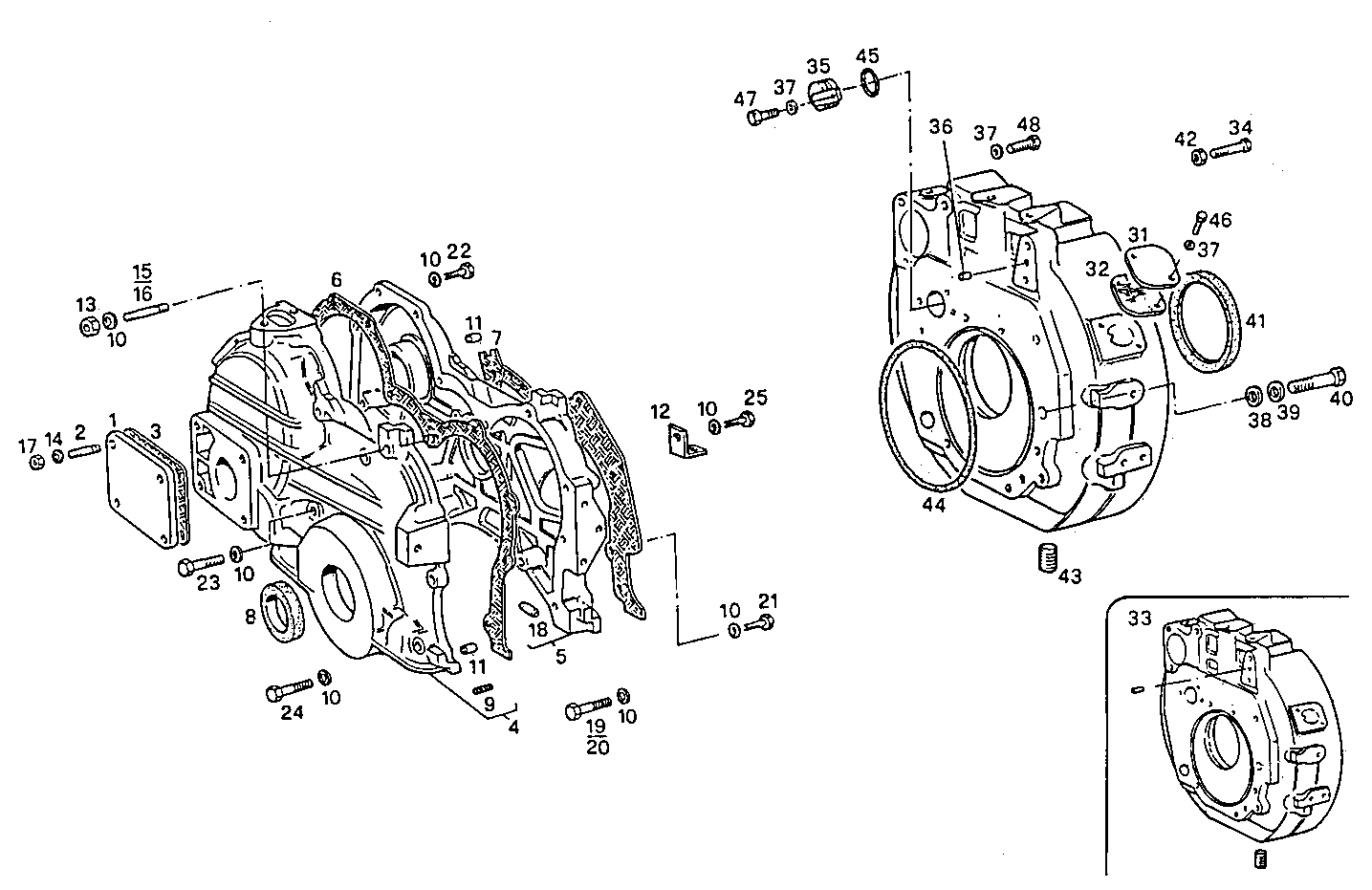

0430.056 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4804219 COVER
2 4615276 STUD M8X20
3 4850986 FLAT ENGINE GASKET
4 4769187 FRONT C.CASE COVER ASSY
5 4766126 FRONT C.CASE COVER ASSY
6 98424045 FLAT ENGINE GASKET
7 98424046 FLAT ENGINE GASKET
8 99469265 SHAFT SEAL CORCOS
9 13526170 THREADED INSERT M10X1,25X20 MM
10 17094914 WASHER 8x16
11 10839610 DOWEL PIN Ø8 MM
12 8005646 RETAINER
13 17037931 HEXAGON NUT M8X1,25
14 17088474 WASHER Ø6X12 MM
15 13543621 STUD M8X16X30 MM
16 13543620 STUD M8X16X30
17 17037821 HEXAGON NUT M6X1
18 4605220 OIL NOZZLE
19 16043521 SCREW M8X22
20 16605734 HEXAGON BOLT M8X30 MM
21 16605824 HEXAGON BOLT M8X35 MM
22 16606124 HEXAGON BOLT M8X50 MM
23 16044921 HEXAGON BOLT M8X1,25X85 MM
24 16606524 HEXAGON BOLT M8X70 MM
25 16605924 SCREW M8X40 MM
31 98417985 COVER
32 98417986 FLAT ENGINE GASKET
33 4784723 FLYWHEEL HOUSING ASSY
34 16612324 HEXAGON BOLT M14X35 MM
35 4718740 PLUG
36 17275510 DOWEL PIN Ø10 MM
37 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
38 17090274 WASHER Ø10X20 MM
39 11200171 SPRING WASHER Ø15 MM
40 11306921 SCREW M10X1,25X30
41 99457401 SHAFT SEAL CORCOS
42 17038721 NUT M14X2 [from ...]
43 16998011 PLUG M35X1,5
44 17299781 O-RING Ø196,2X5,33 MM
45 17289281 O-RING Ø34,5 MM SP=3,53 MM
47 16605424 SCREW M8X16 MM (8.8)
