8061SRi10.05

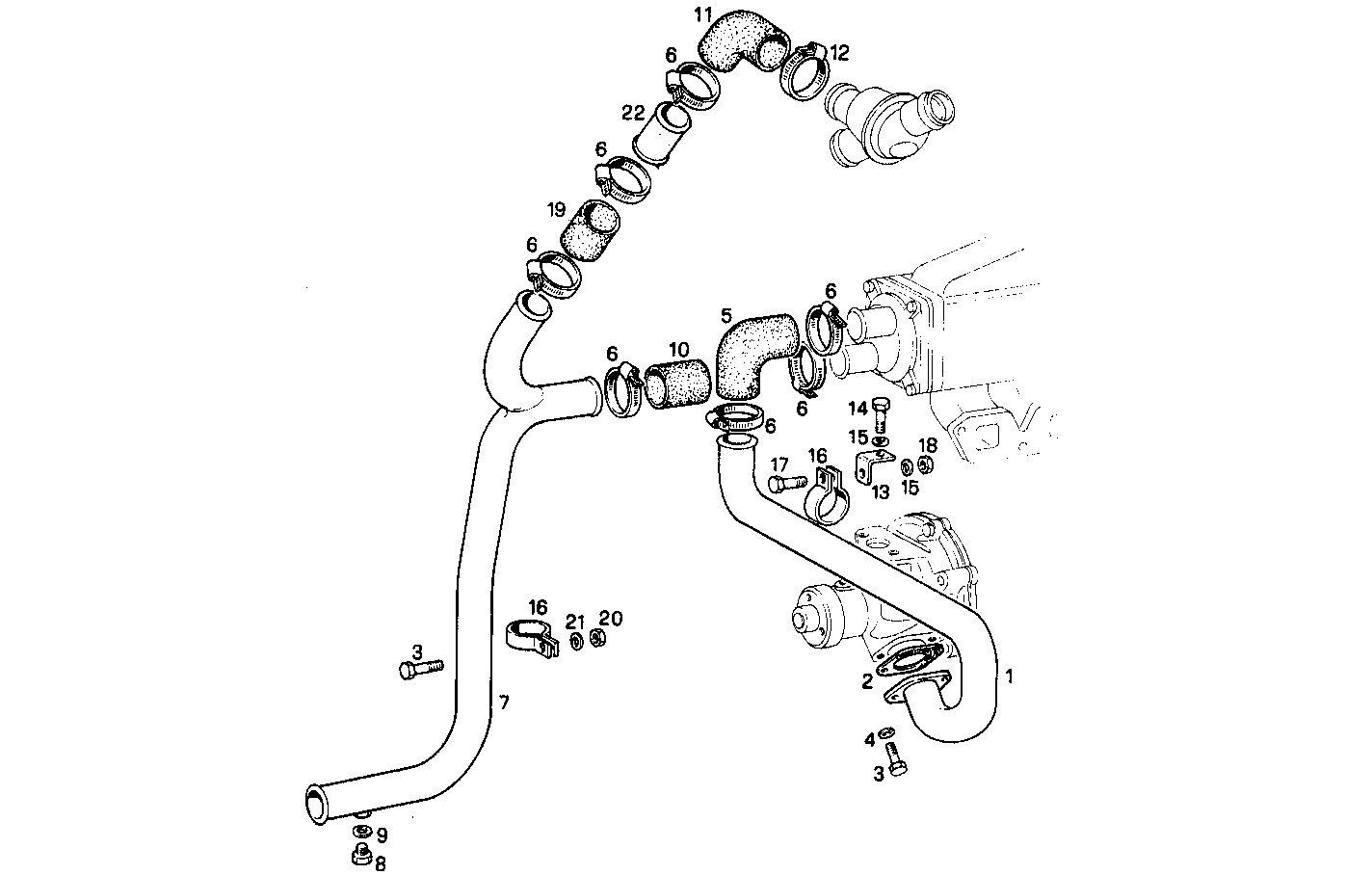

3210.060/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8013418 | WATER PIPE |
| 2 | 98418621 | GASKET |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17094914 | WASHER 8x16 |
| 5 | 8102099 | RUBBER SLEEVE |
| 6 | 17764791 | CLIP Ø32/50 MM |
| 7 | 8019645 | WATER PIPE |
| 8 | 16992111 | THREADED PLUG M10X1 |
| 9 | 4858606 | GASKET Ø10X14X1 MM |
| 10 | 17742687 | RUBBER SLEEVE |
| 11 | 4951429 | WATER HOSE |
| 12 | 17764891 | CLIP Ø40/60 MM |
| 13 | 8102705 | RETAINER |
| 14 | 16043421 | HEXAGON BOLT M8X20 MM |
| 15 | 17090174 | SPRING WASHER Ø10X20 MM |
| 16 | 8103077 | CLIP |
| 17 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 18 | 17038121 | HEXAGON NUT M10 |
| 19 | 17742887 | RUBBER SLEEVE |
| 20 | 17037931 | HEXAGON NUT M8X1,25 |
| 21 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 22 | 8019644 | WATER PIPE |
