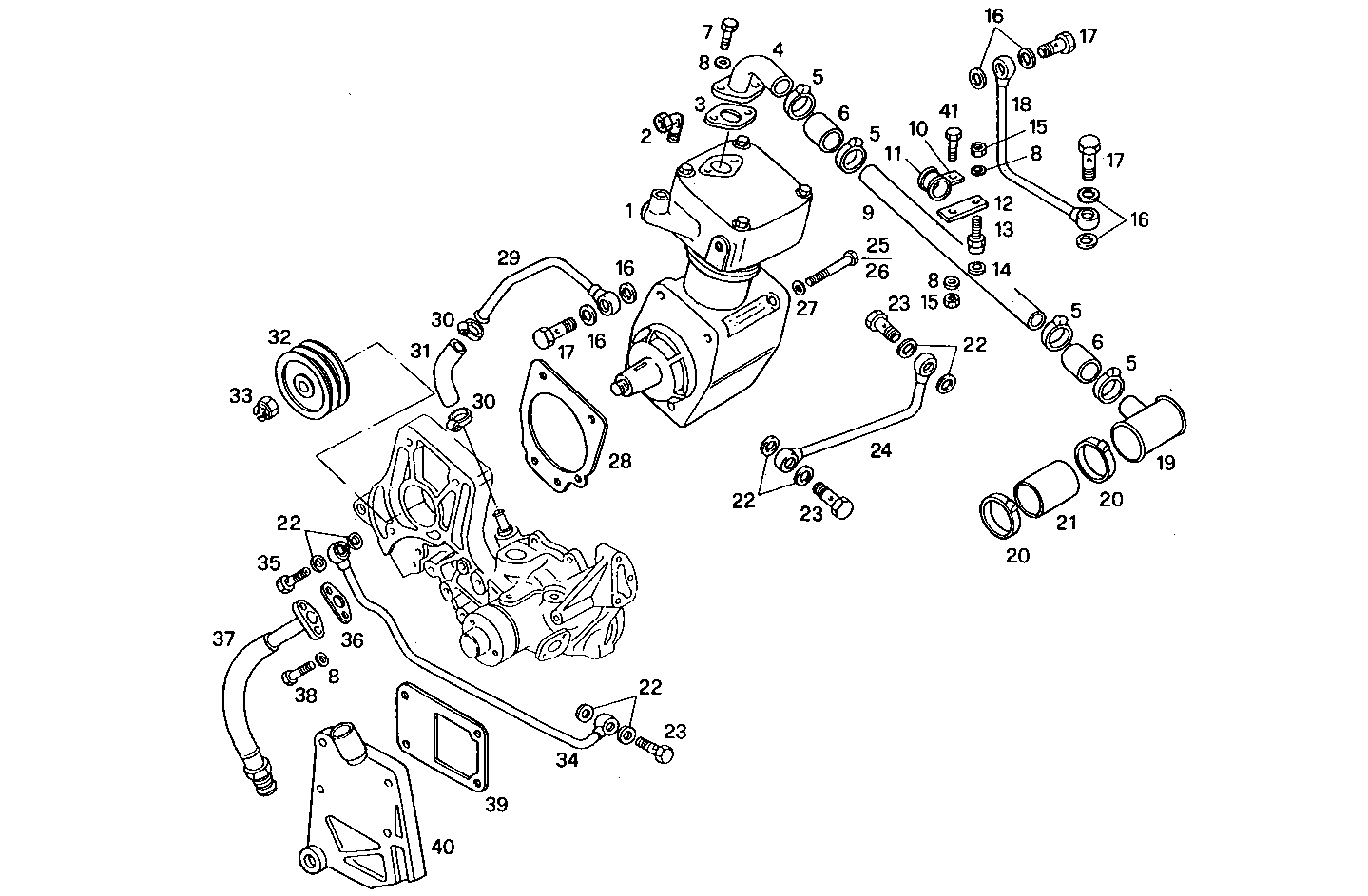

| Item |
Part number |
Description |
|
1 |
8016550 |
AIR COMPRESSOR ASSY WABCO |
|
2 |
8110267 |
PIPE SOCKET |
|
3 |
98418772 |
FLAT ENGINE GASKET |
|
4 |
8100116 |
CONNECTOR |
|
5 |
17764591 |
CLIP Ø20/32 MM |
|
6 |
17738187 |
WATER HOSE |
|
7 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
8016541 |
WATER PIPE |
|
10 |
4760226 |
FASTENING BRACKET |
|
11 |
4747140 |
RUBBER PAD |
|
12 |
4929652 |
RETAINER |
|
13 |
8009967 |
NUT |
|
14 |
98416134 |
WASHER [from 555940] |
|
15 |
17037931 |
HEXAGON NUT M8X1,25 |
|
16 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
17 |
4864084 |
BANJO BOLT M16X1,5 |
|
18 |
98425218 |
WATER PIPE Ø12 MM |
|
19 |
8100075 |
WATER PIPE |
|
20 |
17765091 |
CLIP Ø60/80 MM |
|
21 |
17746687 |
RUBBER SLEEVE |
|
22 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
23 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
24 |
8014959 |
WATER PIPE |
|
25 |
15972221 |
SCREW M10X1,25X120 |
|
26 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
27 |
17095004 |
WASHER Ø10X18X2 MM |
|
28 |
99445563 |
FLAT ENGINE GASKET |
|
29 |
8016543 |
WATER PIPE |
|
30 |
17764491 |
CLIP Ø16/25 MM |
|
31 |
98425477 |
WATER HOSE |
|
32 |
98419182 |
COMPRESSOR PULLEY |
|
33 |
98413776 |
NUT |
|
34 |
98424575 |
OIL LINE |
|
35 |
98406316 |
BANJO BOLT M10X1,25 |
|
36 |
4842490 |
FLAT ENGINE GASKET |
|
37 |
98424277 |
OIL LINE |
|
38 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
39 |
98444018 |
FLAT ENGINE GASKET |
|
40 |
8016514 |
COVER |
|
41 |
16605424 |
SCREW M8X16 MM (8.8) |
