| Item |
Part number |
Description |
|

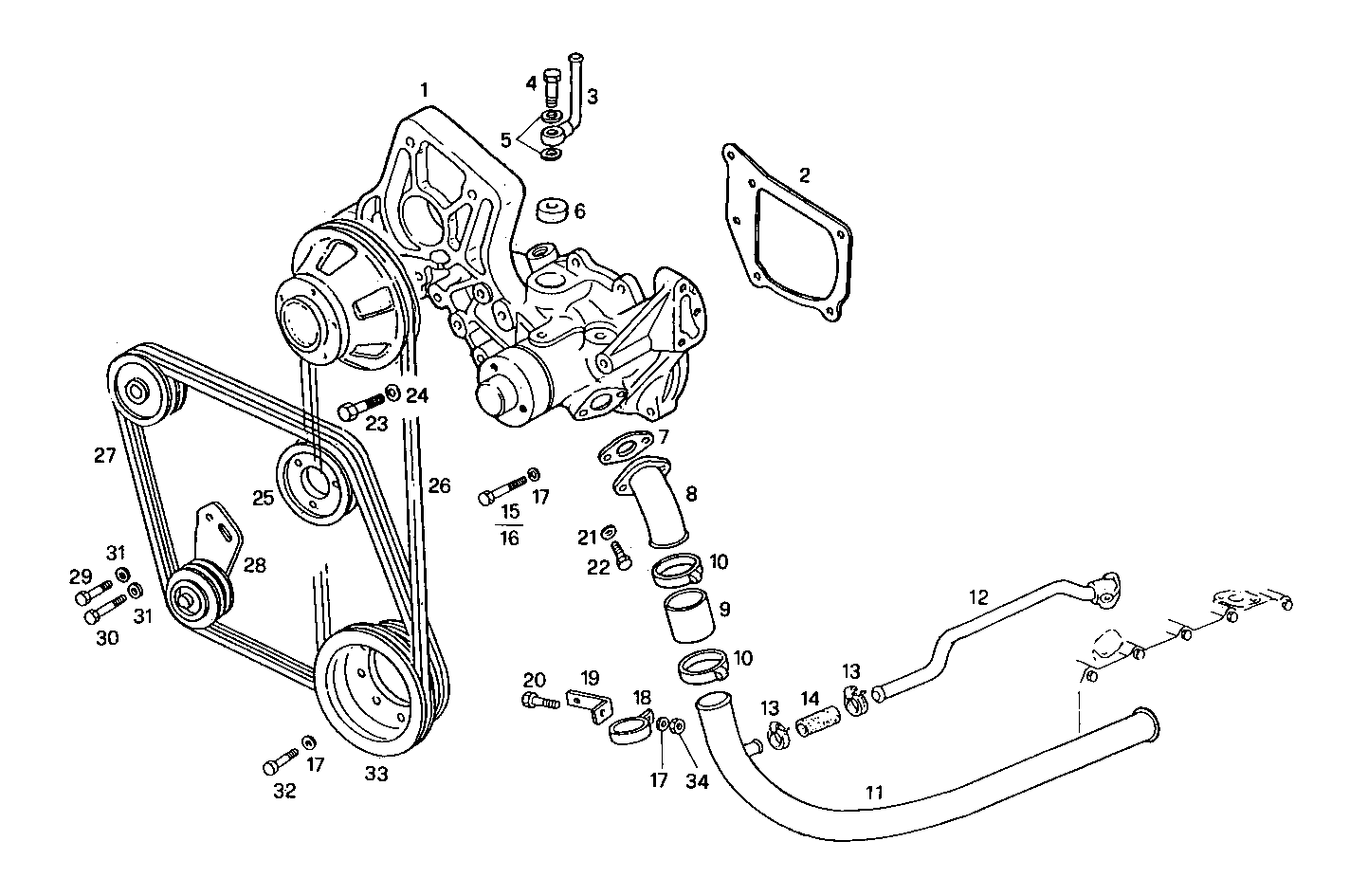

1 |
98415831 |
WATER PUMP ASSY |
|
2 |
4842822 |
FLAT ENGINE GASKET |
|
3 |
8016621 |
WATER PIPE |
|
4 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
5 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
6 |
8013358 |
PLUG |
|
7 |
98418621 |
GASKET |
|
8 |
4772995 |
WATER PIPE |
|
9 |
17742887 |
RUBBER SLEEVE |
|
10 |
17764791 |
CLIP Ø32/50 MM |
|
11 |
8016520 |
WATER PIPE |
|
12 |
8107555 |
WATER PIPE |
|
13 |
17764591 |
CLIP Ø20/32 MM |
|
14 |
98421371 |
AIR HOSE |
|
15 |
15971921 |
HEXAGON BOLT M10X105 MM |
|
16 |
15972321 |
HEXAGON BOLT M10X125 MM |
|
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
18 |
4936741 |
CLIP |
|
19 |
4929652 |
RETAINER |
|
20 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
21 |
17094904 |
WASHER Ø8X16X1,6 MM |
|
22 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
23 |
16045721 |
HEXAGON BOLT M8X125 MM |
|
24 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
25 |
98419016 |
WATER PUMP PULLEY |
|
26 |
98454857 |
V-BELT |
|
27 |
4838851 |
V-BELT KIT |
|
28 |
98429847 |
BELT TENSIONER |
|
29 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
30 |
11227921 |
HEXAGON BOLT M10X28 MM |
|
31 |
17793904 |
WASHER Ø10X25 MM SP=1,5 |
|
32 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
33 |
8014973 |
PULLEY |
|
34 |
17038121 |
HEXAGON NUT M10 |
