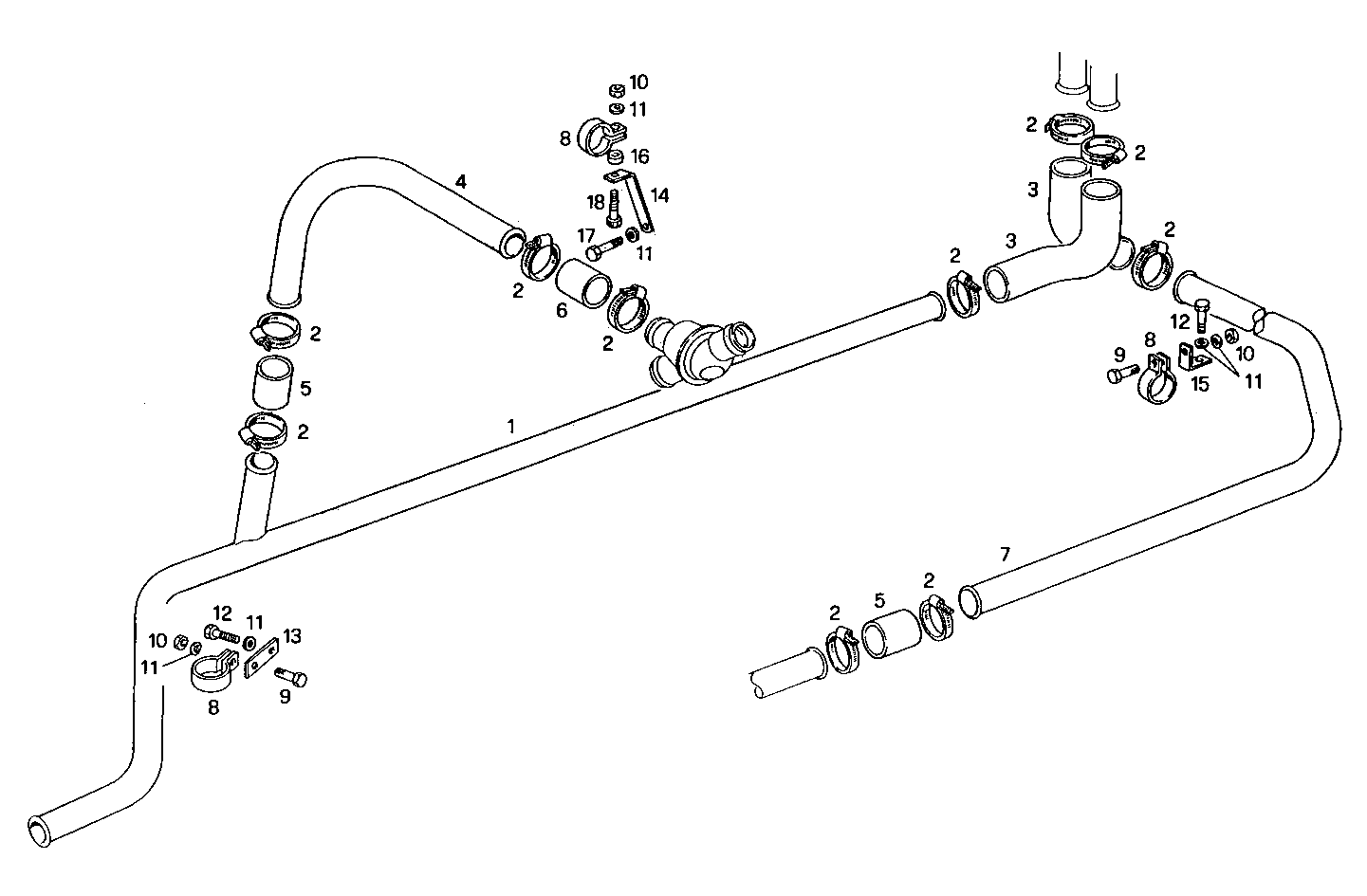

| Item |
Part number |
Description |
|
1 |
8016528 |
WATER PIPE |
|
2 |
17764791 |
CLIP Ø32/50 MM |
|
3 |
4644083 |
WATER HOSE |
|
4 |
8016529 |
WATER PIPE |
|
5 |
17742887 |
RUBBER SLEEVE |
|
6 |
98447313 |
WATER HOSE Ø45 MM/Ø38 MM |
|
7 |
8016527 |
WATER PIPE |
|
8 |
4936741 |
CLIP |
|
9 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
10 |
17038121 |
HEXAGON NUT M10 |
|
11 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
12 |
15970321 |
HEXAGON BOLT M10X16 MM |
|
13 |
4929652 |
RETAINER |
|
14 |
8110973 |
RETAINER |
|
15 |
8110697 |
RETAINER |
|
16 |
8101581 |
SPACING BAR |
|
17 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
18 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
