8061SRi10.05

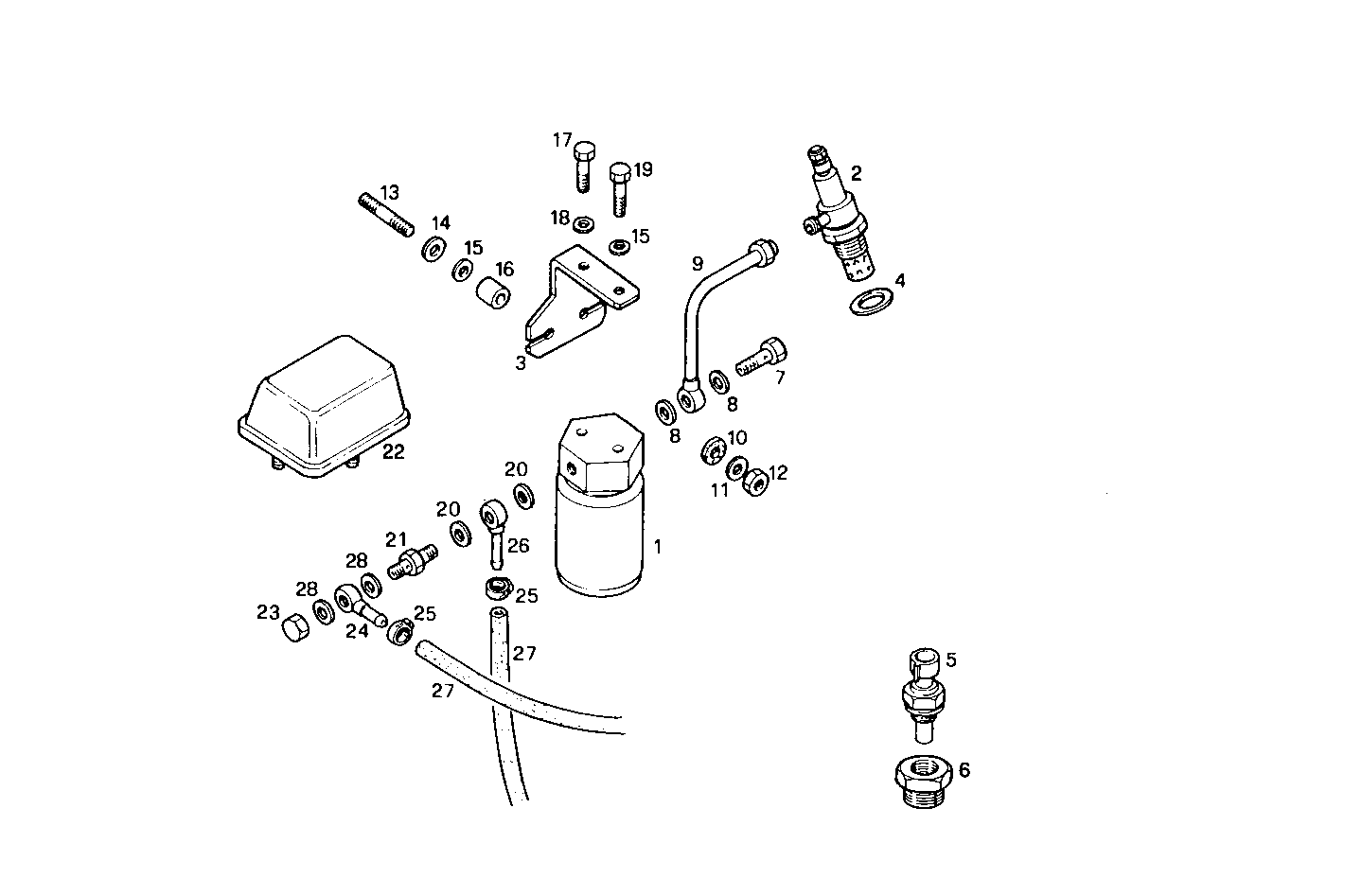

A20000016 THERMOSTARTER - 12V

Iveco/FPT THERMOSTARTER

Item Part number Description
1 98494902 ELECTROVALVE
2 4849601 THERMO-STARTER
3 4829507 RETAINER
4 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
5 4857248 TRANSMITTER
6 4931480 PIPE SOCKET
7 4864079 SCREW CONNECTOR M10X1
8 98474305 WASHER Ø10X17 MM SP=2,3
9 8014902 FUEL LINE
10 4833816 INSULATING RING
11 12643701 WASHER Ø6X18 MM
12 17037821 HEXAGON NUT M6X1
13 16744924 STUD M6X12X16
14 12643724 WASHER Ø6 MM
15 17088474 WASHER Ø6X12 MM
16 4833815 SPACING BAR
17 16602024 SCREW M5X12 MM (8.8)
18 11199279 SPRING WASHER Ø5X10X0,5 MM
19 16603524 SCREW M6X12 MM (8.8)
21 98469450 BYPASS VALVE
22 98411034 ELECTR.CONTR.UNIT
23 98469675 THREADED PLUG M12X1
24 98433829 BANJO COUPLING [up to 1555507]
25 18087991 CLIP Ø8/16 MM
26 98417522 PIPE SOCKET
27 19056687 RUBBER HOSE Ø7,5 MM
28 98474306 WASHER Ø12X20 MM SP=1,9 MM
