8061SRi25.05A580

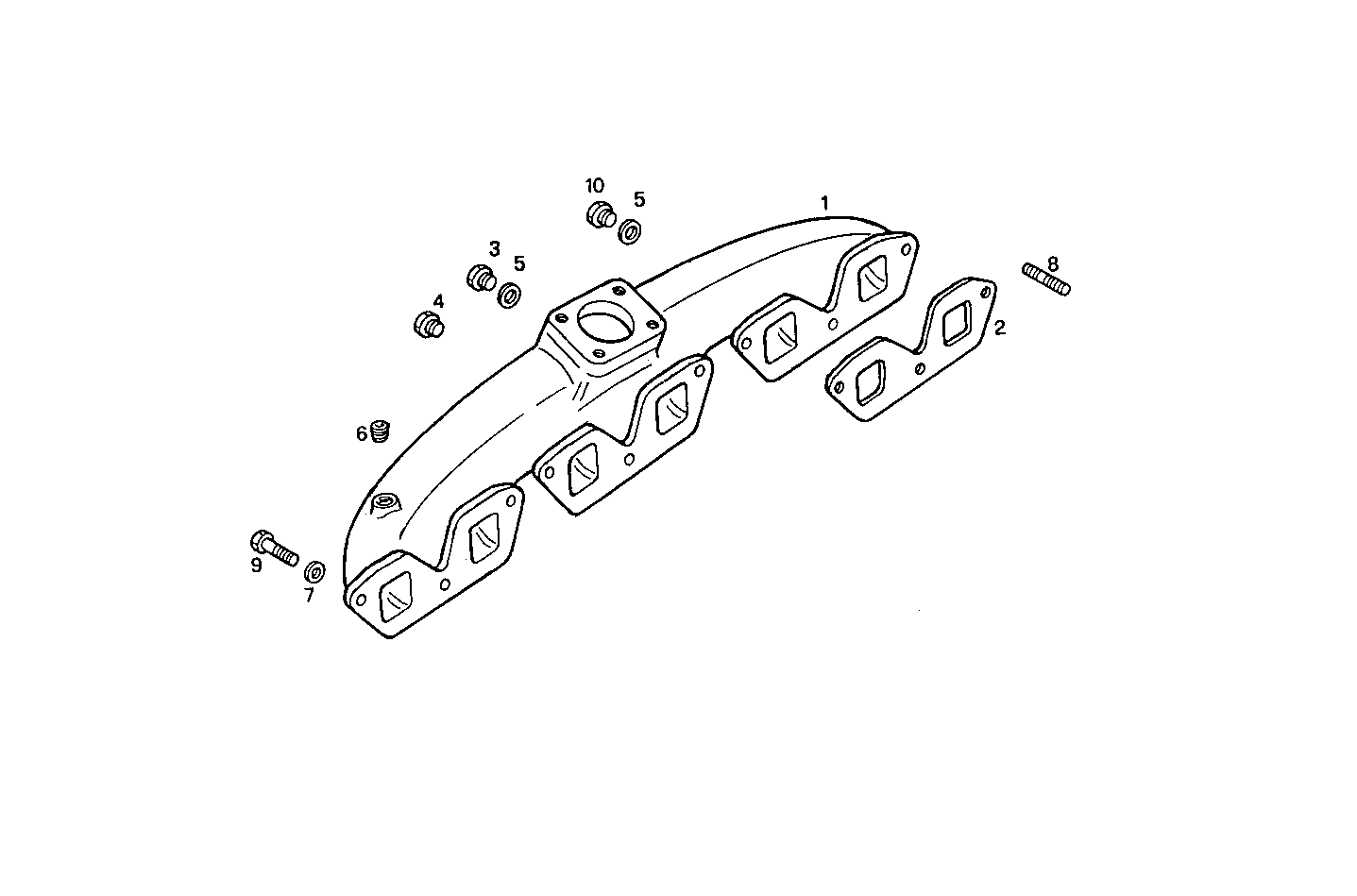

0710.005 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4776966 INTAKE ELBOW
2 4851921 INTAKE ELBOW GASK.
3 4753563 PLUG M10X1,5
4 4577310 THREADED PLUG
5 4858606 GASKET Ø10X14X1 MM
6 16997711 LOCK PLUG M22X1,5
7 17094914 WASHER 8x16
8 13543321 STUD M8X16X20 MM
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 16992111 THREADED PLUG M10X1
