8061SRi25.06

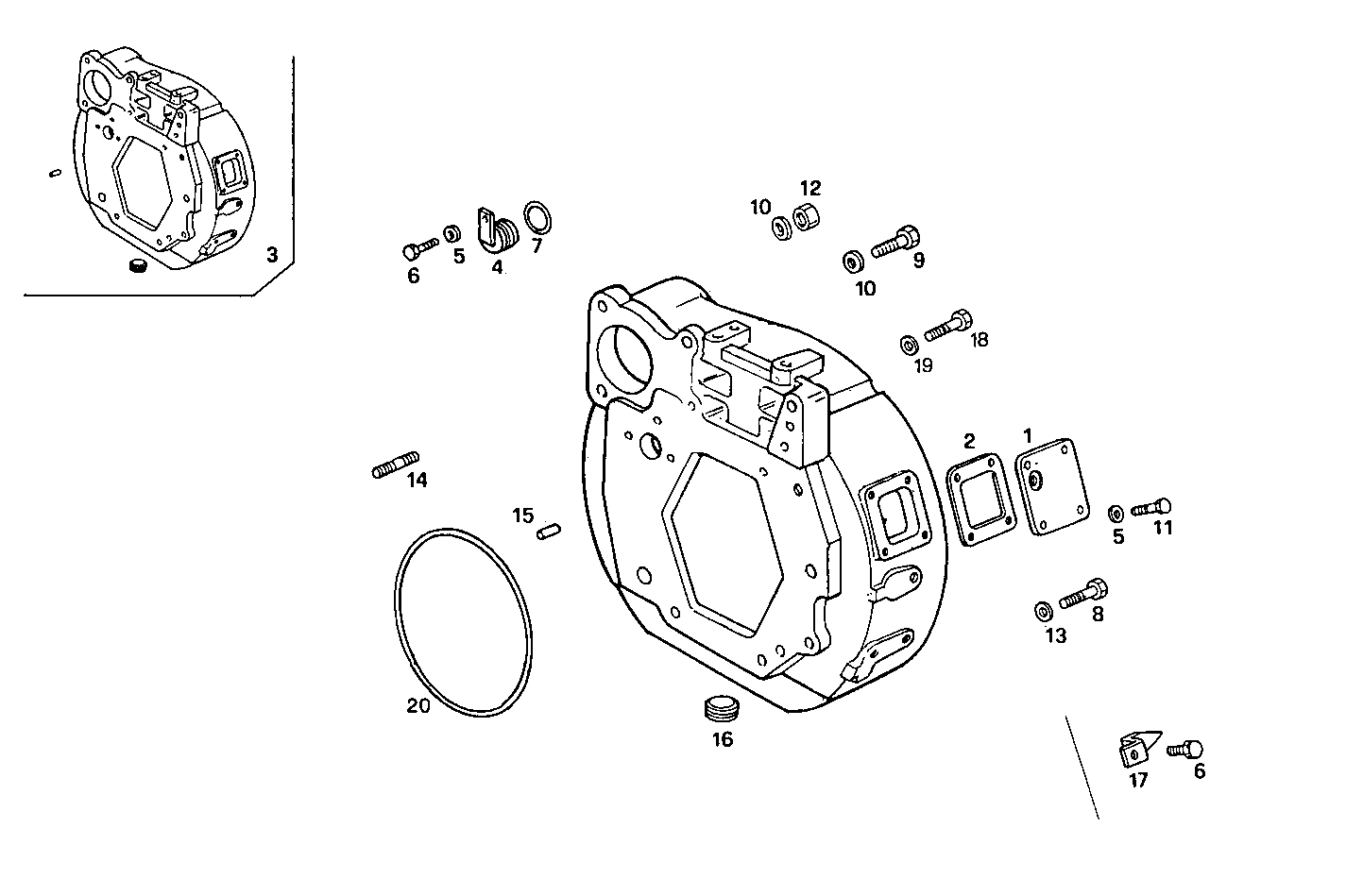

0430.129/02 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 8025809 | COVER |
| 2 | 98417986 | FLAT ENGINE GASKET |
| 3 | 8108289 | FLYWHEEL HOUSING ASSY |
| 4 | 4718740 | PLUG |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 14482880 | O-RING Ø34,52X3,53 MM |
| 8 | 11306921 | SCREW M10X1,25X30 |
| 9 | 16612324 | HEXAGON BOLT M14X35 MM |
| 10 | 11200171 | SPRING WASHER Ø15 MM |
| 11 | 16043521 | SCREW M8X22 |
| 12 | 17038721 | NUT M14X2 [from ...] |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 16735724 | STUD M14X20X55 [from ...] |
| 15 | 10839710 | DOWEL PIN Ø10X15 MM |
| 16 | 14325601 | LOCK PLUG M35X1,5 |
| 17 | 4607446 | INDICATOR |
| 18 | 16605824 | HEXAGON BOLT M8X35 MM |
| 20 | 14483081 | O-RING Ø5,33X196,2 MM |
