8061SRi26.05

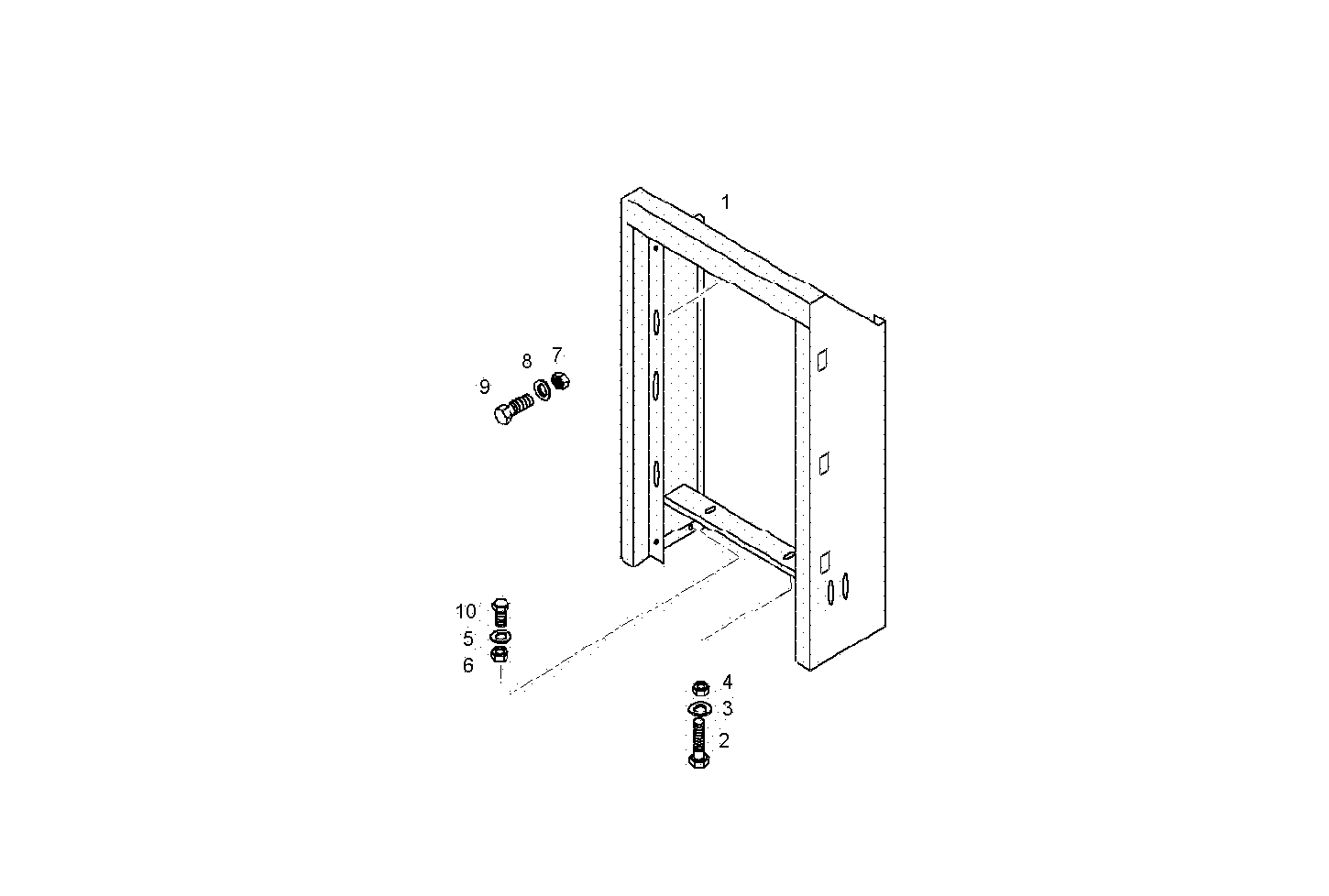

A22010076 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8031923 | SUPPORT |
| 2 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 3 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
| 4 | 17038131 | HEXAGON NUT M10 |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 17037925 | HEXAGON NUT M8X1,25 |
| 8 | 17089574 | WASHER Ø8X16 MM |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 16603677 | HEXAGON BOLT M6X16 MM |
