8061SRi26.06

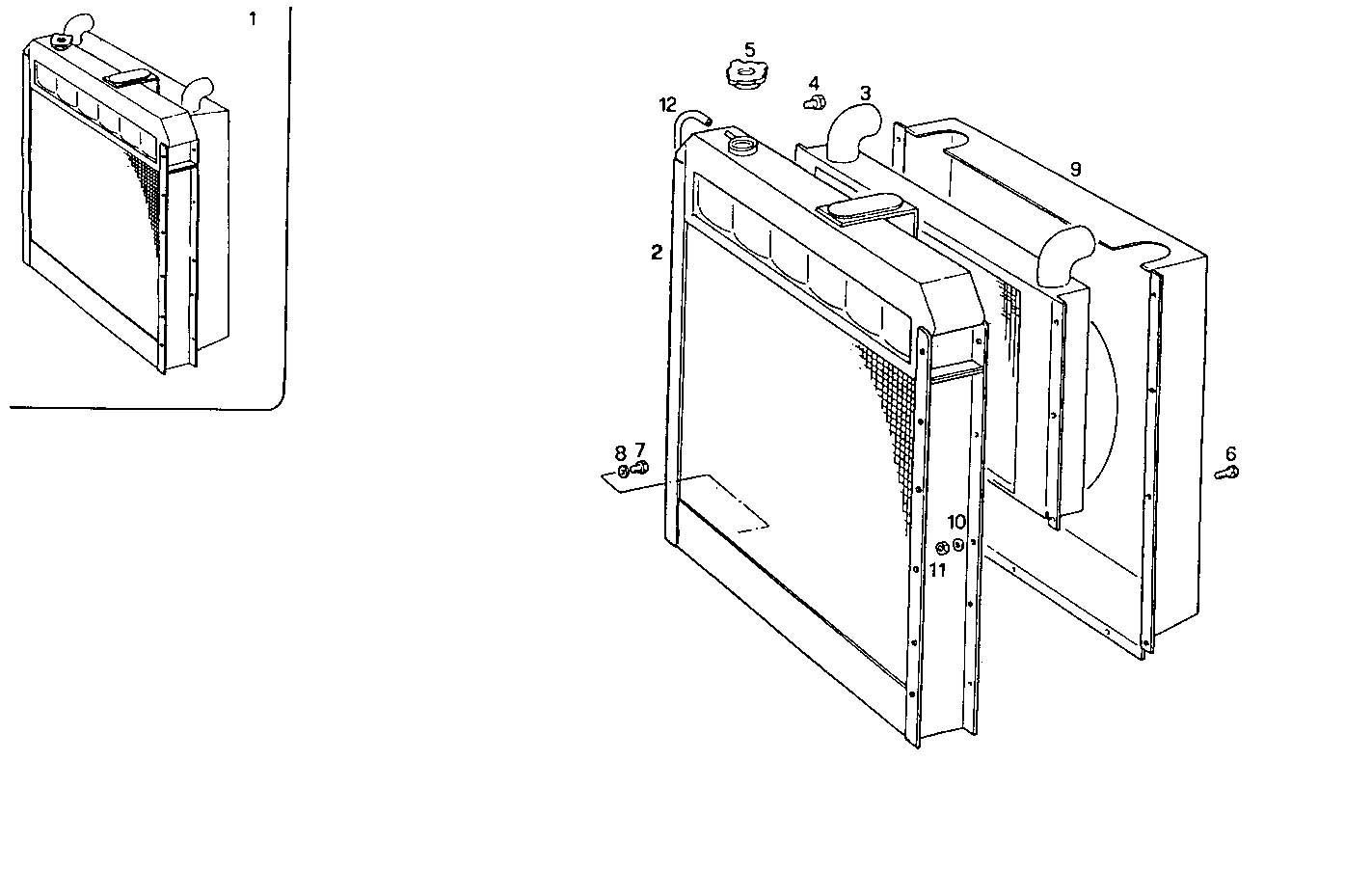

3300.029/01 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8025739 WATER RADIATOR ASSY
2 8025741 WATER RADIATOR
3 8018659 INTERCOOLER [from 05-94]
4 8105096 PLUG
5 8107632 RADIATOR PLUG
6 16605524 HEXAGON BOLT M8X20 MM
7 16992340 THREADED PLUG M14X1,5
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 8018658 AIR HOOD
10 17094914 WASHER 8x16
11 17037931 HEXAGON NUT M8X1,25
12 17723181 WATER HOSE
