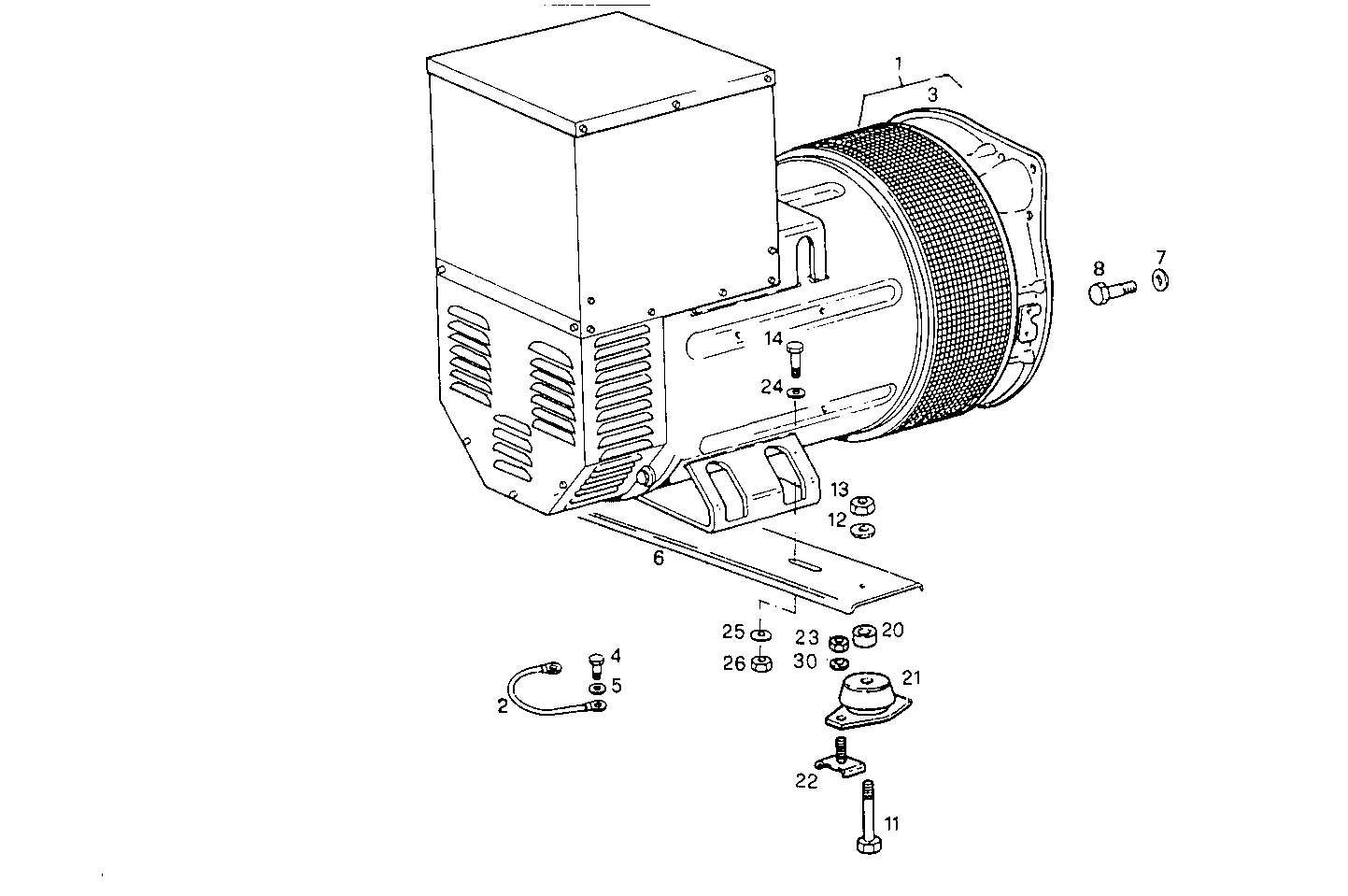

| Item |
Part number |
Description |
|
1 |
8028054 |
ELECTRIC MACHINE ECO 342 L/4 50-60 HZ |
|
2 |
8110852 |
EARTH WIRE |
|
3 |
8026953 |
COUPLING BELL |
|
4 |
16043124 |
SCREW M8X14 MM |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8015167 |
SUPPORT |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
11 |
16614924 |
SCREW M16X55 |
|
12 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
13 |
17038921 |
NUT M16X2 |
|
14 |
16614724 |
SCREW M16X45 |
|
20 |
8005402 |
SPACING BAR 35MM |
|
21 |
4911960 |
RUBBER PAD |
|
22 |
8016024 |
SCREW |
|
23 |
17038121 |
HEXAGON NUT M10 |
|
24 |
4929369 |
WASHER |
|
25 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
30 |
17090974 |
SPRING WASHER Ø12X24 MM |
|
31 |
8026983 |
COUPLING BELL |
