8061SRi27.05

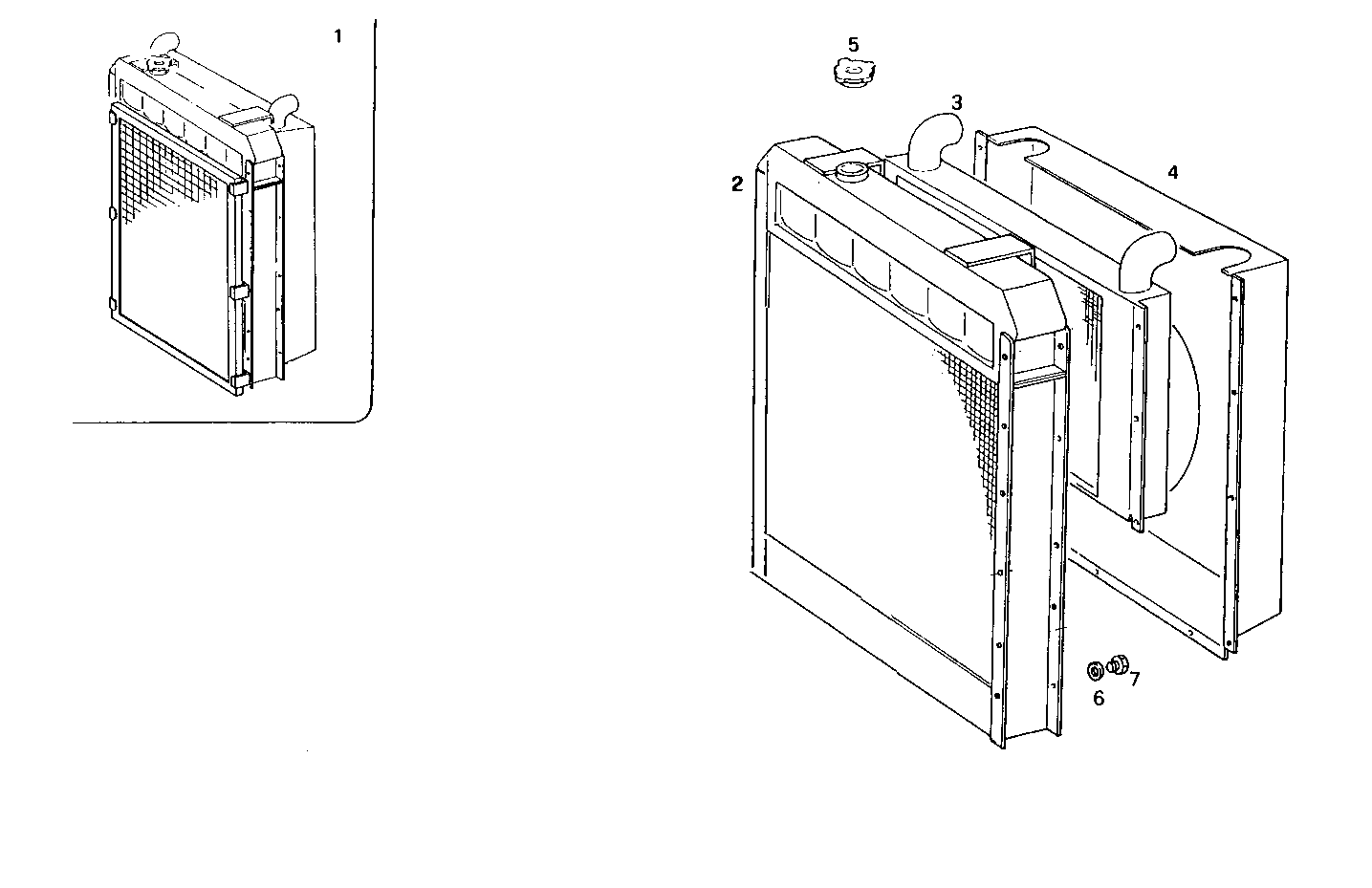

T22010077/01 RADIATOR 2 CIRCUITS AIR/WATER (COMPONETS )
| Item | Part number | Description |
|---|---|---|
| 1 | 8025287 | WATER RADIATOR ASSY |
| 2 | 8025288 | WATER RADIATOR |
| 3 | 8018492 | AIR/AIR INTERCOOLER |
| 4 | 8025181 | AIR HOOD |
| 5 | 8107632 | RADIATOR PLUG |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 16992340 | THREADED PLUG M14X1,5 |
