8061SRi27.05A582

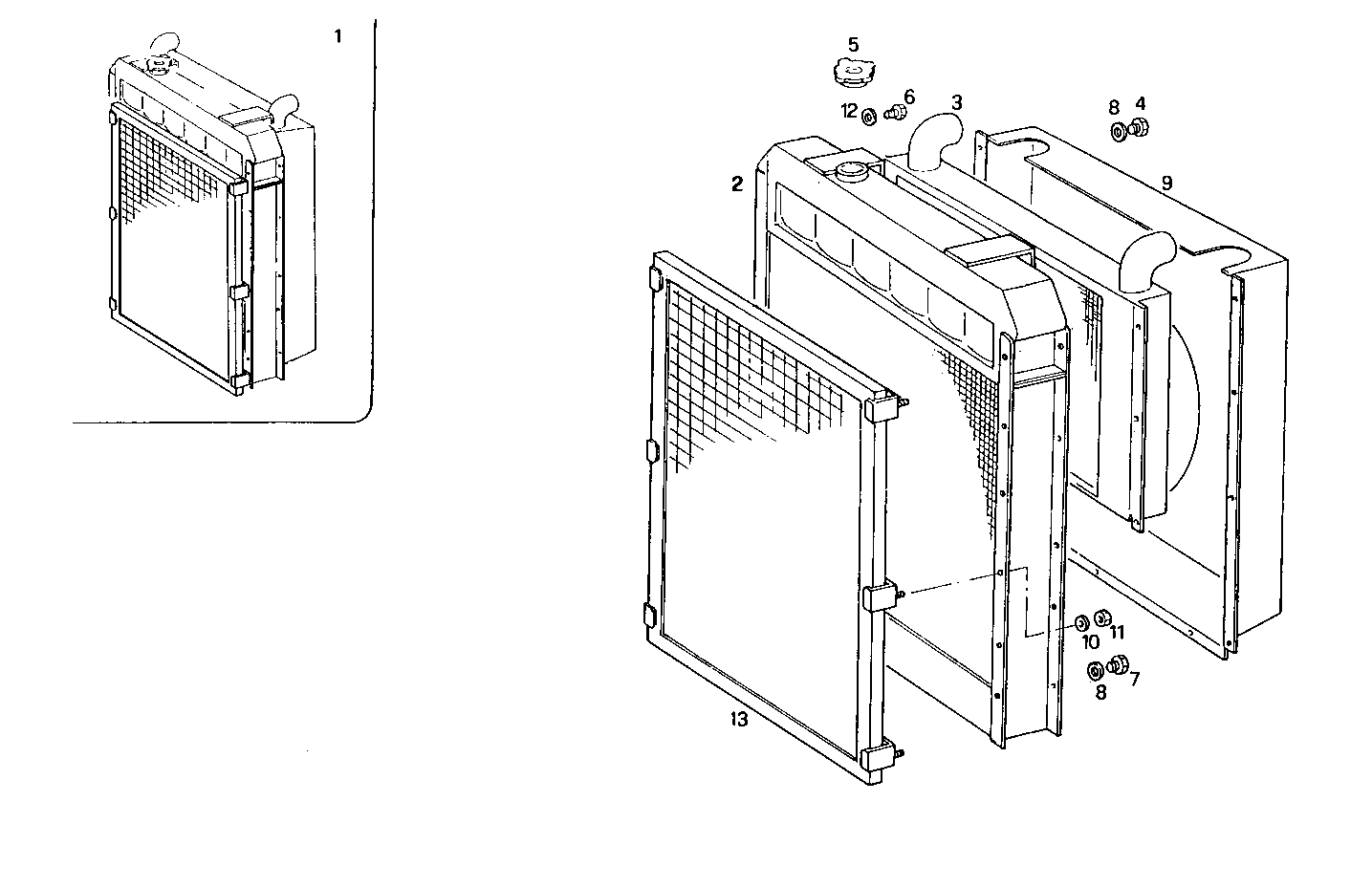

3300.021/01 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8039037 WATER RADIATOR
1 8025180 WATER RADIATOR ASSY
2 8025288 WATER RADIATOR
3 8018492 AIR/AIR INTERCOOLER
4 8105096 PLUG
5 8107632 RADIATOR PLUG
6 16992211 THREADED PLUG M12X1,5
7 16992340 THREADED PLUG M14X1,5
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 8025181 AIR HOOD
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 17037921 HEXAGON NUT M8X1,25
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 8108066 PROTECTION
