8061SRi27.06

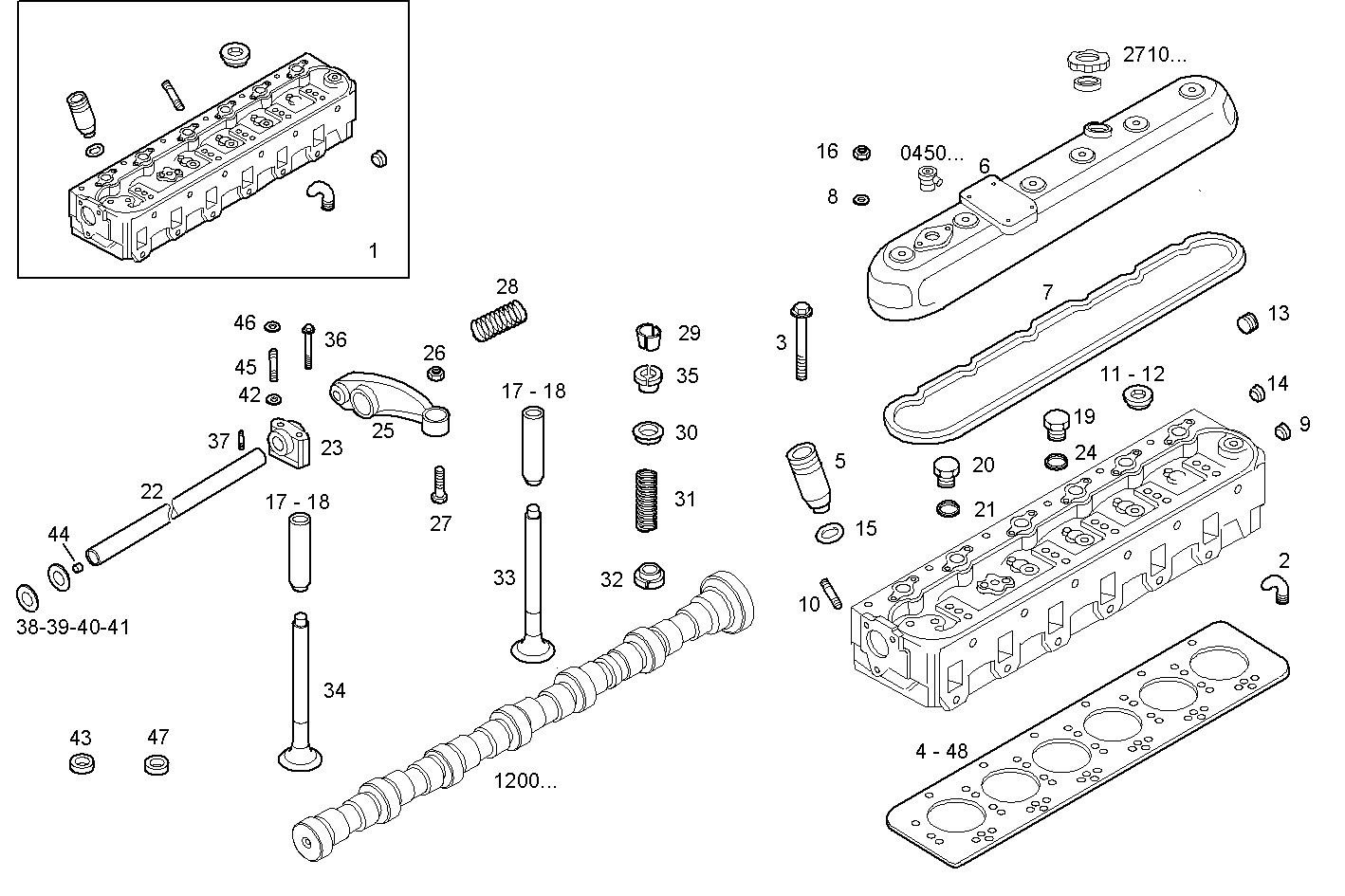

0600.199 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 99431695 CYLINDER HEAD ASSY
2 4818862 WATER CONVEYOR
3 4796457 CYL.HEAD STUD
4 1907832 CYL.HEAD GASKET SP=1,35 MM
5 4770859 NOZZLE HOLDER SEAT
6 99486569 CYL. HEAD COVER [from 344746]
7 98427866 HEAD COVER GASKET [from 344746]
8 98416134 WASHER [from 555940]
9 99434231 THREADED PLUG M10X1,25
10 500380521 STUD M8X12X45
11 14282470 LOCK PLUG Ø28 MM
12 14282170 LOCK PLUG Ø20 MM
13 14282970 LOCK PLUG Ø45 MM
14 16992411 THREADED PLUG M16X1,5
15 17278981 O-RING Ø25,12 MM SP=1,78 MM
16 98417659 NUT [from 555940]
17 4802126 VALVE GUIDE
18 4802127 VALVE GUIDE +0,2
19 16991170 LOCK PLUG Ø36 MM
20 10300611 LOCK PLUG M14X1,5
21 4858608 SEAL GASKET dia.14x19,5x1,5
22 4838844 ROCKER SHAFT ASSY
23 4601295 ROCKER BRACKET
24 4858609 WASHER Ø16X22 MM SP=1,5 MM
25 4848973 ROCKER ARM ASSY
26 4338920 ADJUSTING NUT
27 4699783 ROCKER ARM SCREW
28 4601296 ROCKER ARM SPRING
29 4838680 VALVE CAP
30 4780558 SPRING CAP TOP
31 4812347 ENGINE VALV.SPRING
32 4817424 SPRING CAP BOTTOM
33 1908408 INLET VALVE
34 1908409 EXHAUST VALVE
35 4819891 VALVE CONE
36 98439855 HEXAGON BOLT M8X65
37 4846851 SPIGOT SCREW
38 4639661 SUPPORT RING SP=1 MM
39 4570798 SUPPORT RING SP=0,7 MM
40 4570799 SUPPORT RING SP=0,5 MM
41 11066676 CIRCLIP Ø18 MM
42 17094914 WASHER 8x16
43 98495495 VALVE SEAT +0.05
44 16987801 LOCK PLUG Ø12 MM
45 98458149 STUD [from 608189]
46 17037925 HEXAGON NUT M8X1,25
47 98495493 VALVE SEAT STD.
48 1907838 CYL.HEAD GASKET SP=1,58 MM
