8061SRi27.06

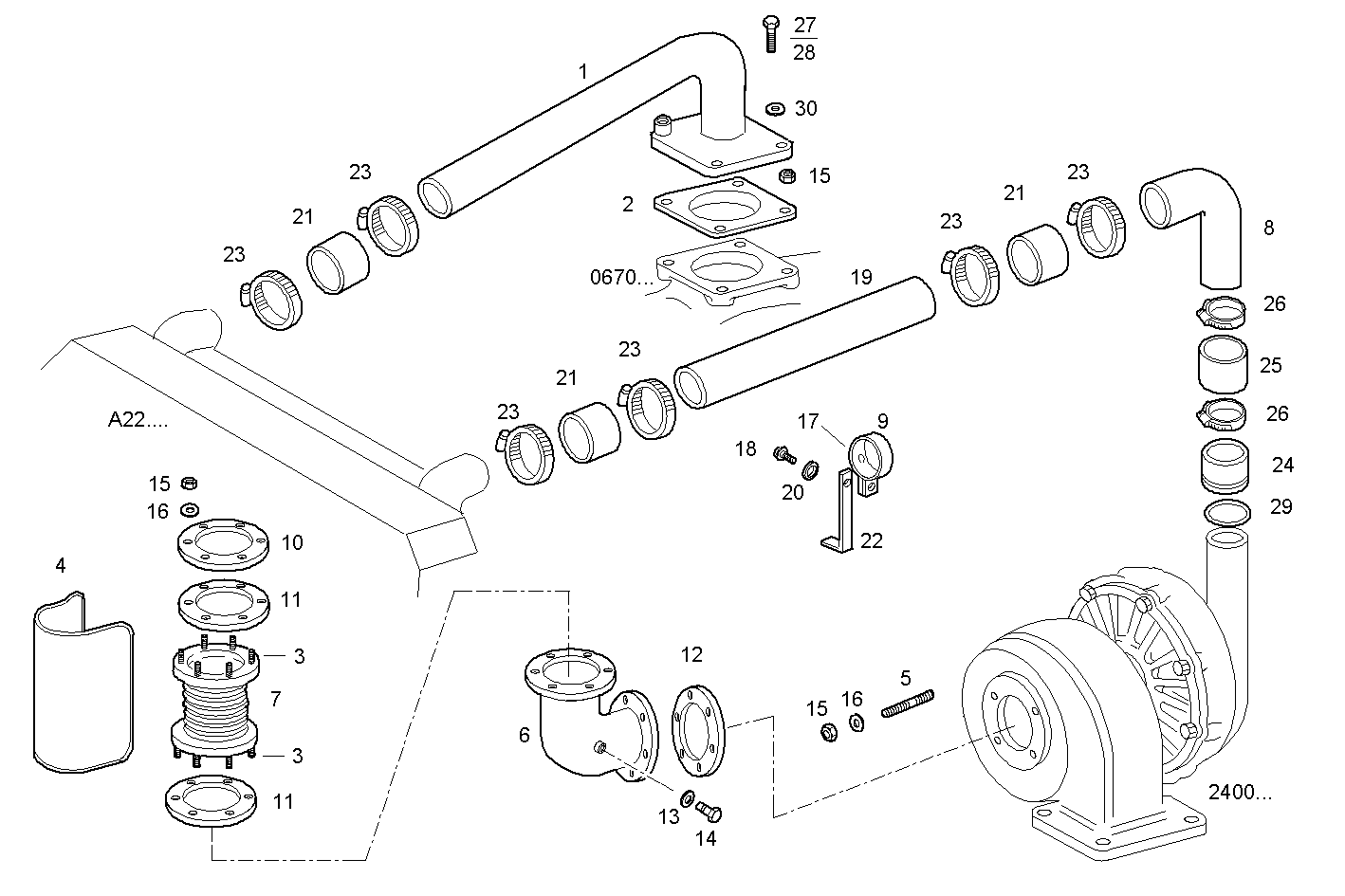

2420.226 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8024996 AIR PIPE/DUCT
2 98400790 FLAT ENGINE GASKET
3 16729524 STUD M8X1,25X30
4 8008237 PROTECTION
5 16729424 STUD M8X1,25X25
6 8039822 EXHAUST ELBOW
7 4935378 EXHAUST BELLOWS
8 8107648 AIR MANIFOLD
9 4936328 CLIP ASSY
10 4919183 FLANGE
11 8009606 GASKET
12 8009733 GASKET
13 4858607 WASHER Ø12X17 MM SP=1,5 MM
14 16992211 THREADED PLUG M12X1,5
15 17037925 HEXAGON NUT M8X1,25
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 4565875 RUBBER PAD
18 15970921 HEXAGON BOLT M10X1,25X35 MM
19 8018708 AIR PIPE/DUCT [from 09-1994]
20 17090174 SPRING WASHER Ø10X20 MM
21 99444730 WATER HOSE Ø 60 MM
22 8027318 RETAINER
23 8019910 CLIP
24 504120282 TURBOCHARGER HOSE
25 99444733 RUBBER SLEEVE
26 17764991 CLIP Ø50/70 MM
27 16605624 HEXAGON BOLT M8X25 MM (8.8)
28 16605824 HEXAGON BOLT M8X35 MM
29 17295681 O-RING
30 17094914 WASHER 8x16
