8061SRi27.06

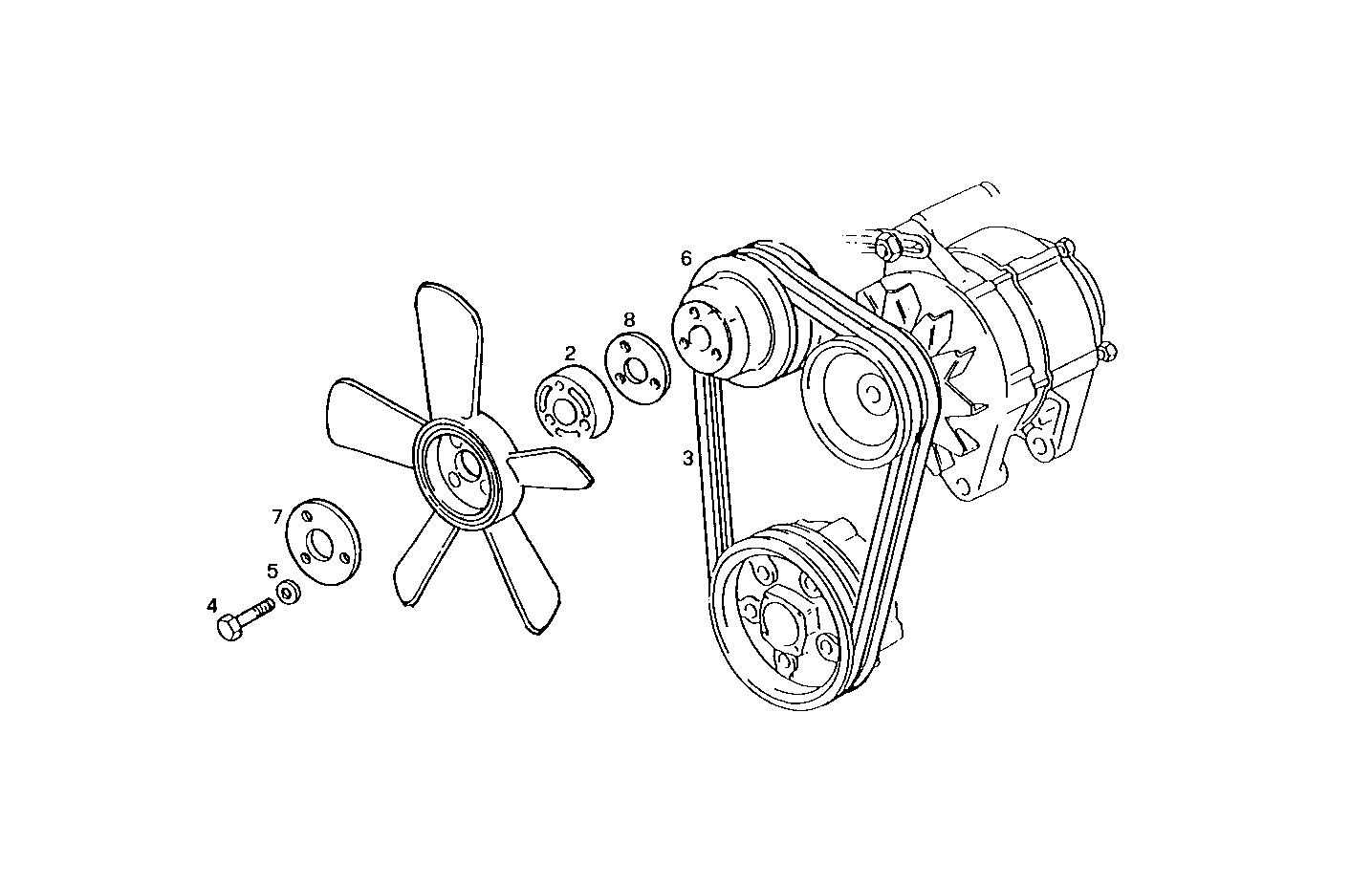

3240.087 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8025182 | FAN |
| 2 | 4606458 | SPACING BAR |
| 3 | 4847051 | SET OF V-BELTS L=1130 MM |
| 4 | 16606324 | HEXAGON BOLT M8X60 MM |
| 5 | 17089574 | WASHER Ø8X16 MM |
| 6 | 4619286 | WATER PUMP PULLEY |
| 7 | 4584861 | SPACING BAR |
| 8 | 8101950 | SPACING BAR |
