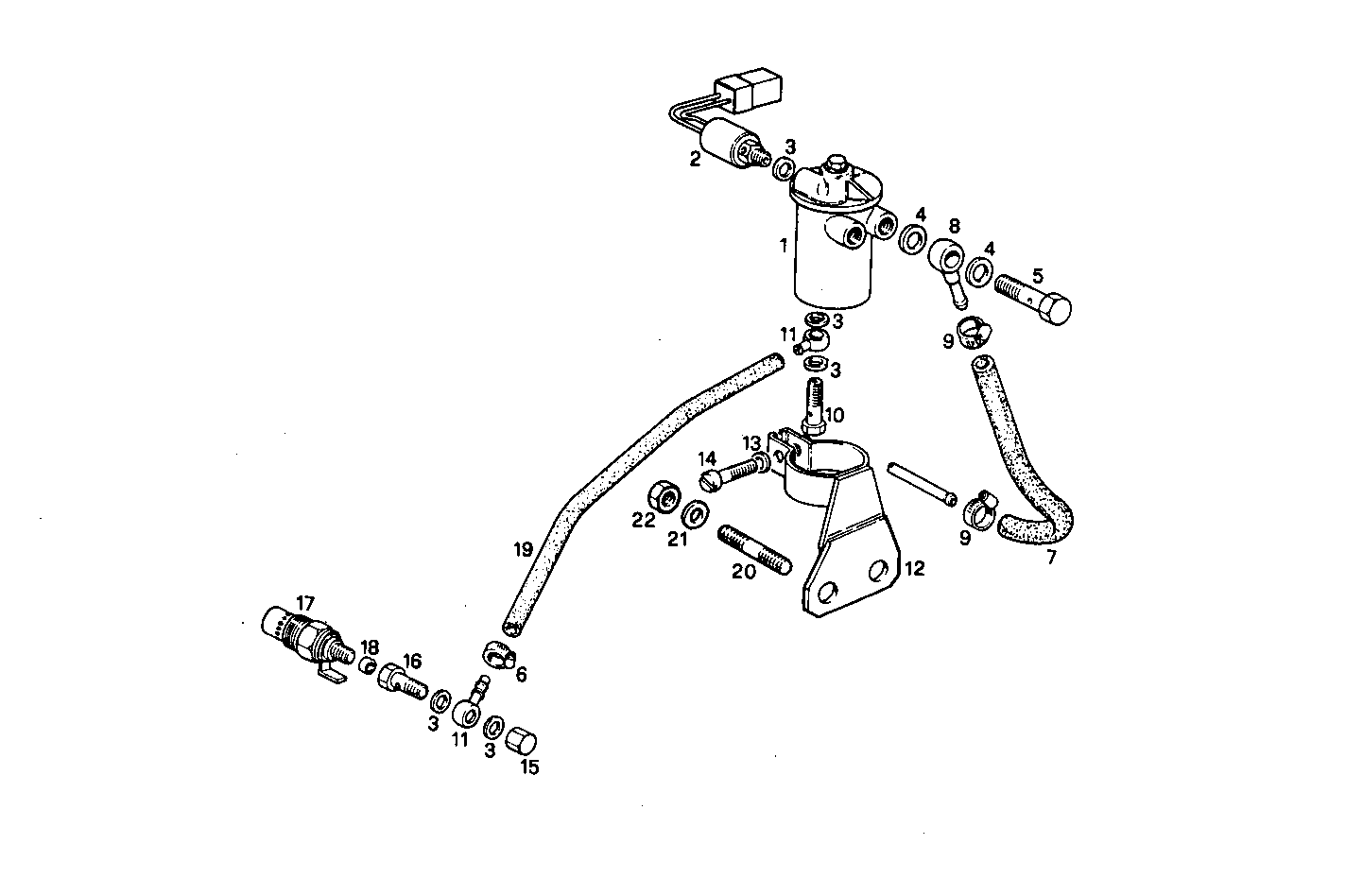

| Item |
Part number |
Description |
|
1 |
4815431 |
TANK FOR PREHEATER |
|
2 |
98414208 |
ELECT.V.VE.PREHEAT |
|
3 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
4 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
5 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
6 |
18087692 |
CLIP Ø8/12 MM |
|
7 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
8 |
98405514 |
PIPE SOCKET |
|
9 |
18087991 |
CLIP Ø8/16 MM |
|
10 |
4864078 |
BANJO BOLT M8X1,25 |
|
11 |
4551099 |
SWIVEL COUPLING |
|
12 |
8103713 |
SUPPORT |
|
13 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
14 |
17132214 |
SCREW |
|
15 |
11902017 |
LOCK PLUG M8 |
|
16 |
4551101 |
SCREW CONNECTOR |
|
17 |
4724604 |
THERMO-STARTER |
|
18 |
4557649 |
WASHER |
|
19 |
17724387 |
HOSE |
|
20 |
13546121 |
STUD M10X1,25X20 MM |
|
21 |
17090271 |
WASHER Ø10X20X2,6 MM |
|
22 |
17038221 |
HEXAGON NUT M10 |
