8061SRi27.06

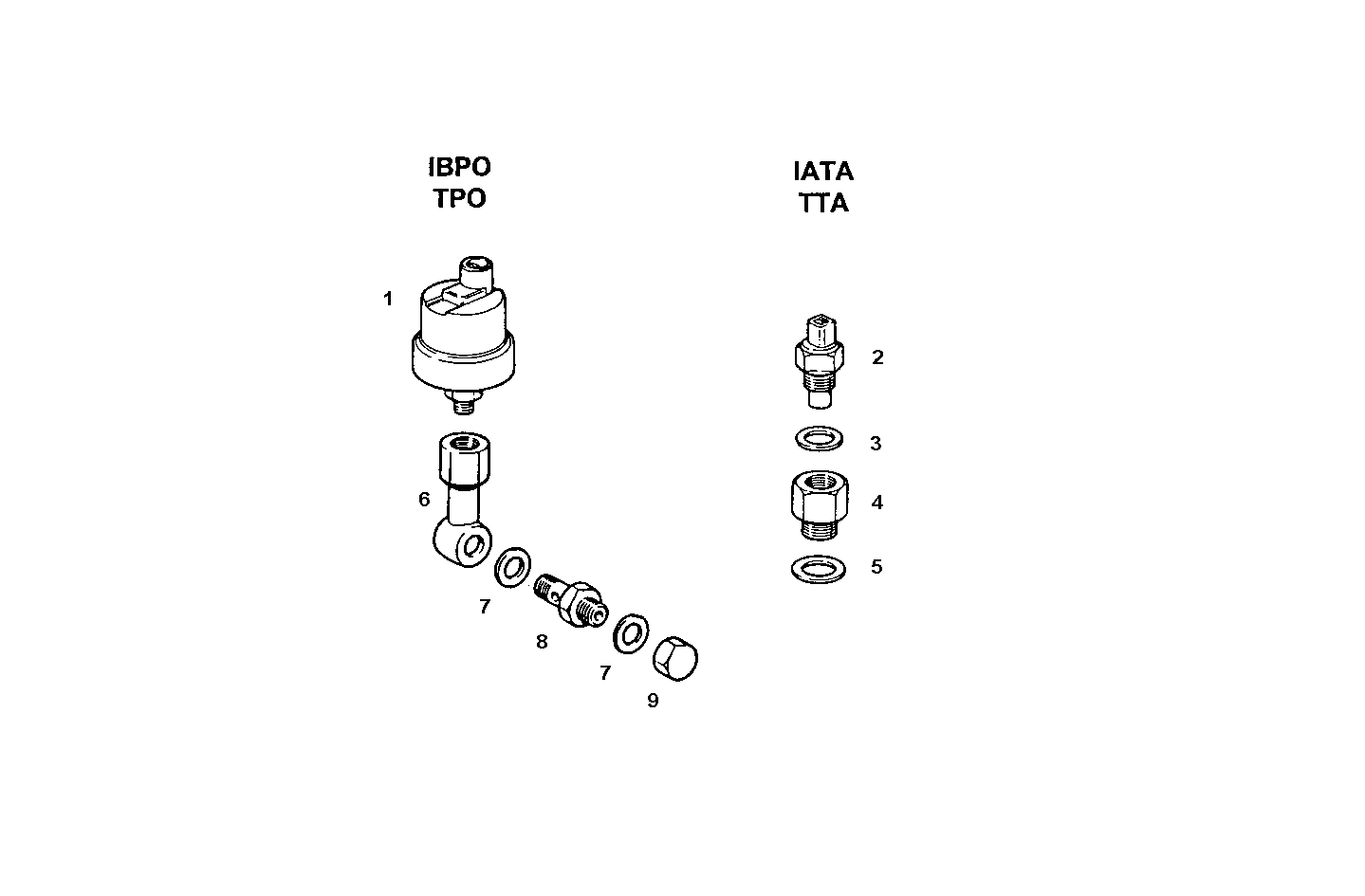

A38550084 SENDER UNITS ALARMS INSTRUMENT - 12/24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8102598 | TRANSMITTER IBPO-TPO |
| 2 | 8108436 | TRANSMITTER IATA-TTA |
| 3 | 4927546 | PIPE SOCKET |
| 4 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 5 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 10284460 | SEAL GASKET Ø10X16 MM |
| 8 | 4607792 | SCREW CONNECTOR |
| 9 | 99448327 | LOCK PLUG |
