8061SRi40.00

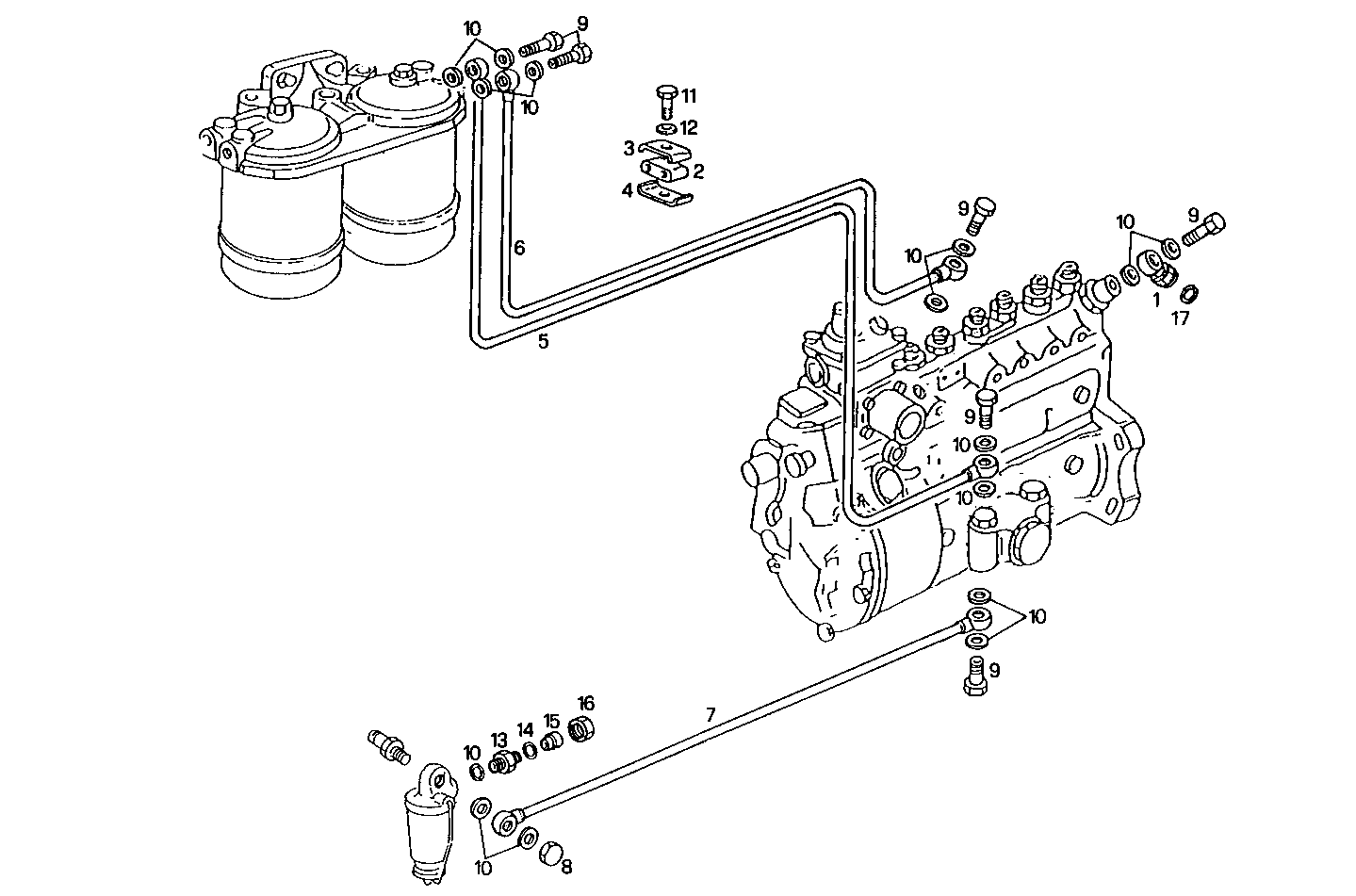

2030.164 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8029491 | PIPE SOCKET |
| 2 | 4659217 | DOWEL |
| 3 | 4659218 | CLIP |
| 4 | 4659219 | PLATE |
| 5 | 98420170 | FUEL LINE |
| 6 | 98419869 | FUEL LINE |
| 7 | 98413562 | FUEL LINE |
| 8 | 10182817 | LOCK PLUG |
| 9 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 10 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 11 | 16602324 | HEXAGON BOLT M5X25 MM |
| 12 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 13 | 16500214 | THREADED UNION M14X1,5/M16X1,5 |
| 14 | 8024646 | O-RING Ø6 MM |
| 15 | 16507511 | WASHER |
| 16 | 16506811 | NUT |
| 17 | 8024645 | O-RING Ø4 MM |
