8061SRi40.00

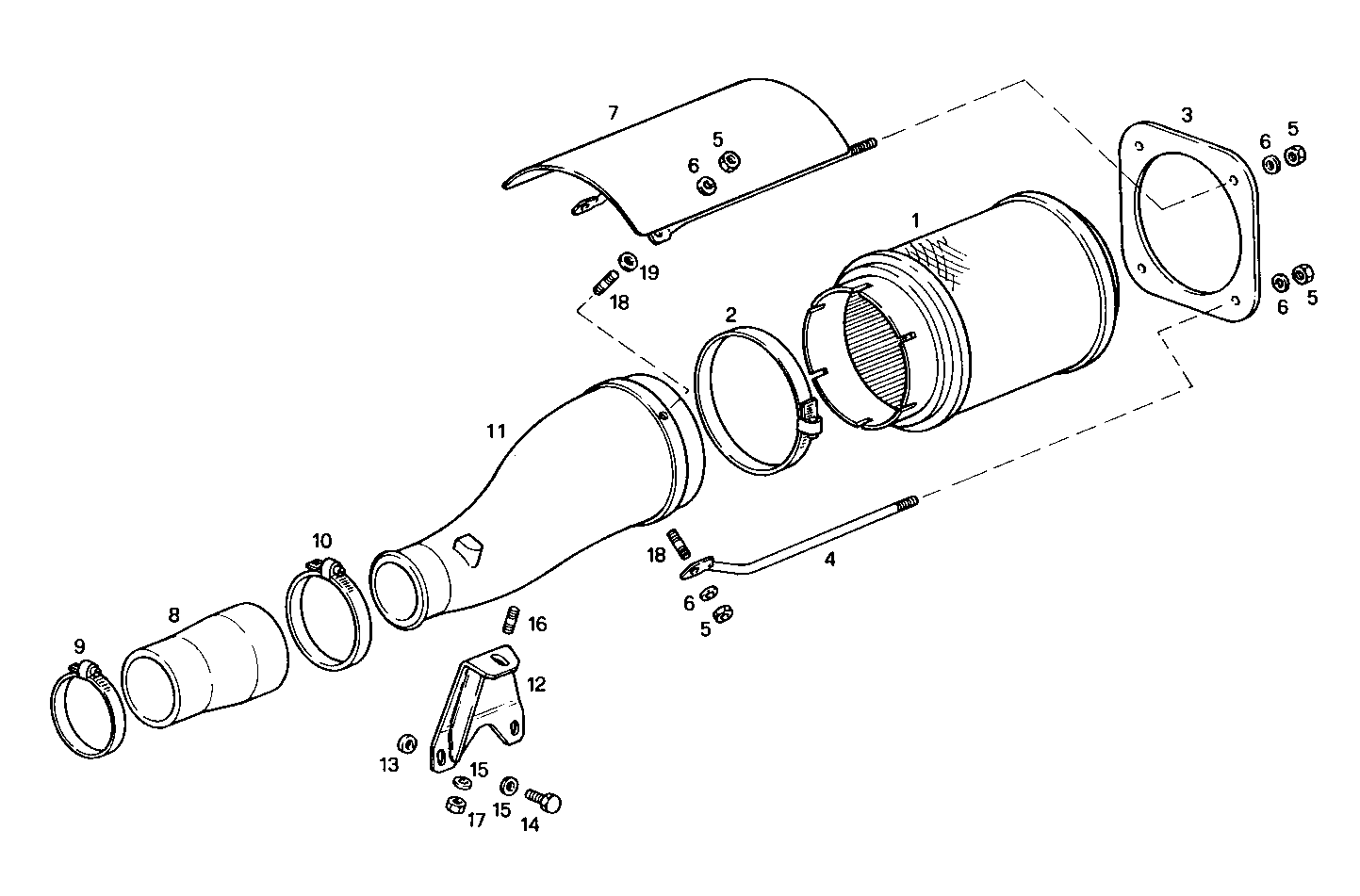

A21020001 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8017271 | AIR CLEANER |
| 2 | 17765891 | CLIP Ø140/160 MM |
| 3 | 8113633 | FLANGE |
| 4 | 8030435 | TIE ROD |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 8031389 | PROTECTION |
| 8 | 8019166 | RUBBER SLEEVE Ø70/80 MM |
| 9 | 17765191 | CLIP Ø70/90 MM |
| 10 | 17765291 | CLIP Ø80/100 MM |
| 11 | 8030052 | AIR PIPE/DUCT |
| 12 | 8030079 | RETAINER |
| 13 | 16665604 | WASHER Ø10X20 MM |
| 14 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 15 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 16 | 16729224 | STUD M8X16 MM |
| 17 | 17037931 | HEXAGON NUT M8X1,25 |
| 18 | 16727624 | STUD M6X16 MM |
| 19 | 98428276 | SPACING BAR |
