8061SRi41.00

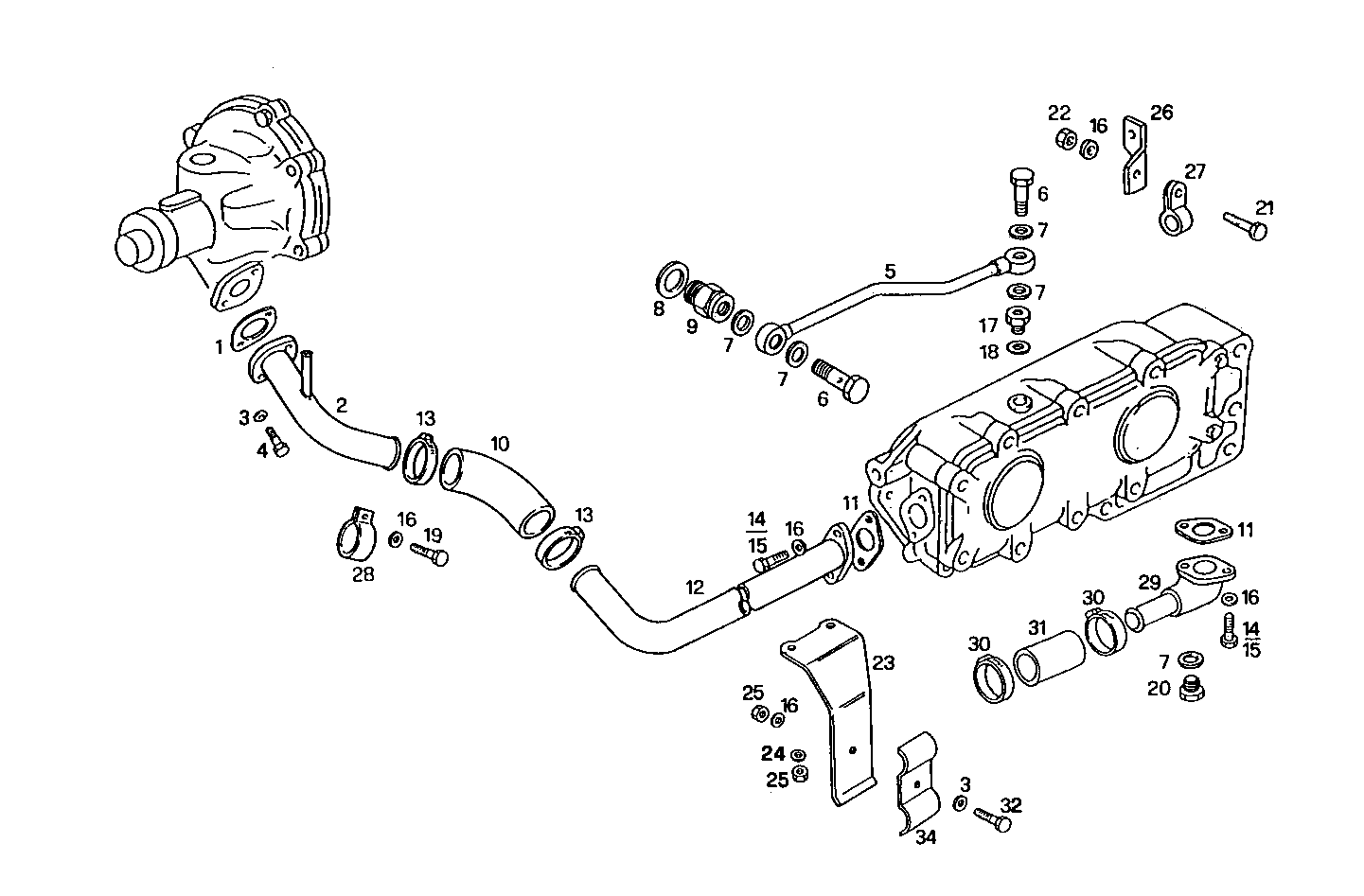

3210.205/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 8031047 WATER PIPE
3 17094914 WASHER 8x16
4 98401723 HEXAGON BOLT M8X1,25X12 MM
5 98445356 WATER PIPE
6 4864080 SCREW CONNECTOR M10X1,25
7 4858606 GASKET Ø10X14X1 MM
8 16508460 WASHER 22x27x1,5
9 98445134 THREADED UNION SP=7 MM
10 500331119 WATER HOSE
11 4779623 FLAT ENGINE GASKET
12 500326779 WATER PIPE
13 17764892 PIPE CLIP Ø40-60 MM
14 16606424 HEXAGON BOLT M8X65 MM
15 16043724 HEXAGON BOLT M8X28 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 98446813 THREADED UNION
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 16992111 THREADED PLUG M10X1
21 16605424 SCREW M8X16 MM (8.8)
22 17042531 HEXAGON NUT M8
23 500329889 RETAINER
24 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
25 17037931 HEXAGON NUT M8X1,25
26 4795309 RETAINER
27 10449890 PIPE CLIP Ø53 MM
28 8027280 CLIP
29 8024945 WATER PIPE
30 17764791 CLIP Ø32/50 MM
31 8016662 RUBBER SLEEVE
32 16606224 HEXAGON BOLT M8X55 MM
34 4801128 RETAINER
