8061SRi41.00

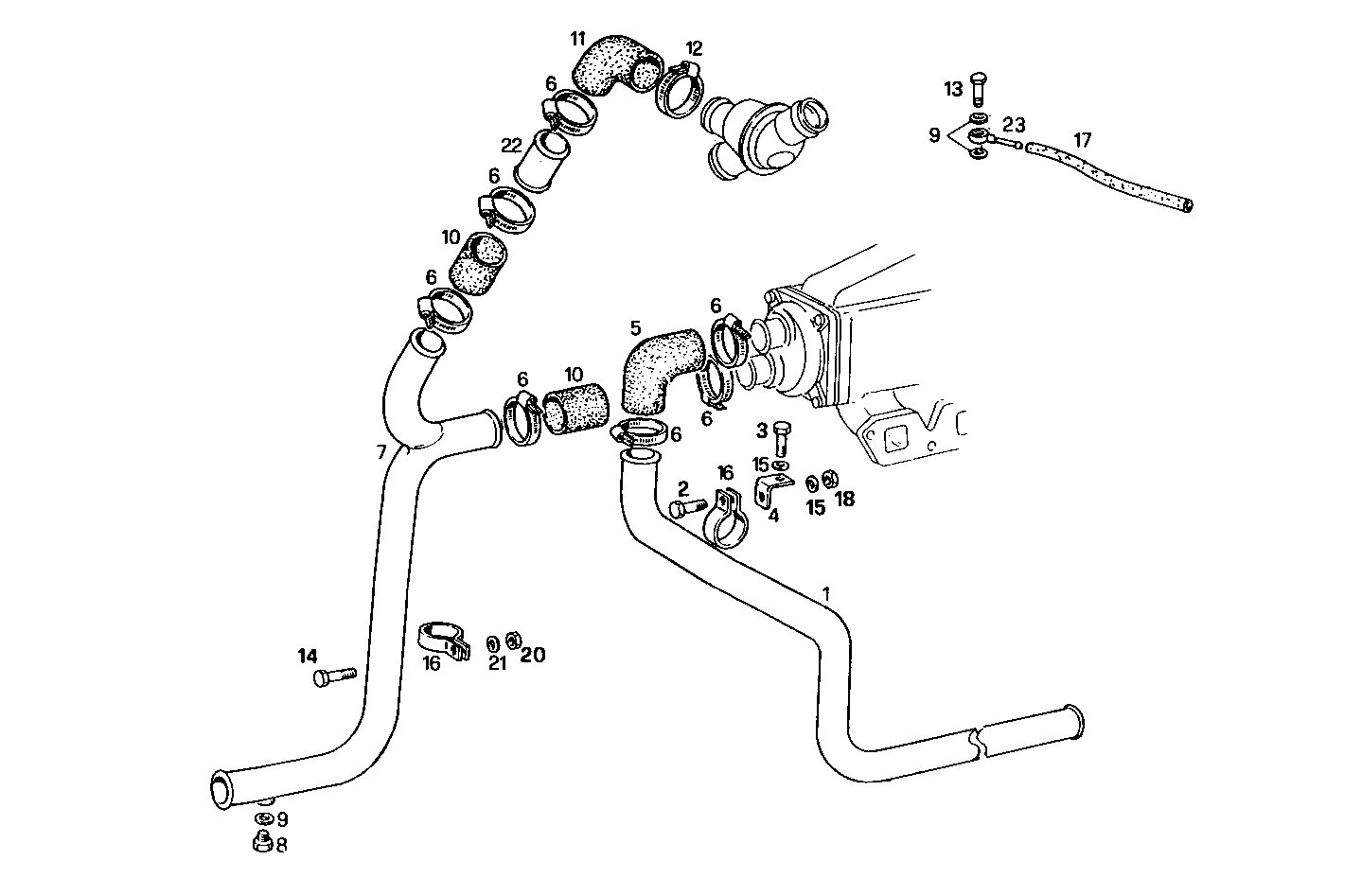

3210.205/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8029521 | WATER PIPE |
| 2 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 3 | 15970521 | HEXAGON BOLT M10X20 MM |
| 4 | 8005646 | RETAINER |
| 5 | 8017516 | WATER HOSE |
| 6 | 17764791 | CLIP Ø32/50 MM |
| 7 | 8019644 | WATER PIPE |
| 8 | 16992111 | THREADED PLUG M10X1 |
| 9 | 4858606 | GASKET Ø10X14X1 MM |
| 10 | 17742687 | RUBBER SLEEVE |
| 11 | 4951429 | WATER HOSE |
| 12 | 17764891 | CLIP Ø40/60 MM |
| 13 | 4864079 | SCREW CONNECTOR M10X1 |
| 14 | 16605524 | HEXAGON BOLT M8X20 MM |
| 15 | 17090174 | SPRING WASHER Ø10X20 MM |
| 16 | 8027280 | CLIP |
| 17 | 19056687 | RUBBER HOSE Ø7,5 MM |
| 18 | 17038121 | HEXAGON NUT M10 |
| 19 | 17080174 | WASHER Ø8X16X1,4 MM |
| 20 | 17037931 | HEXAGON NUT M8X1,25 |
| 21 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 22 | 8019645 | WATER PIPE |
| 23 | 4627990 | BREATHER CONN. |
