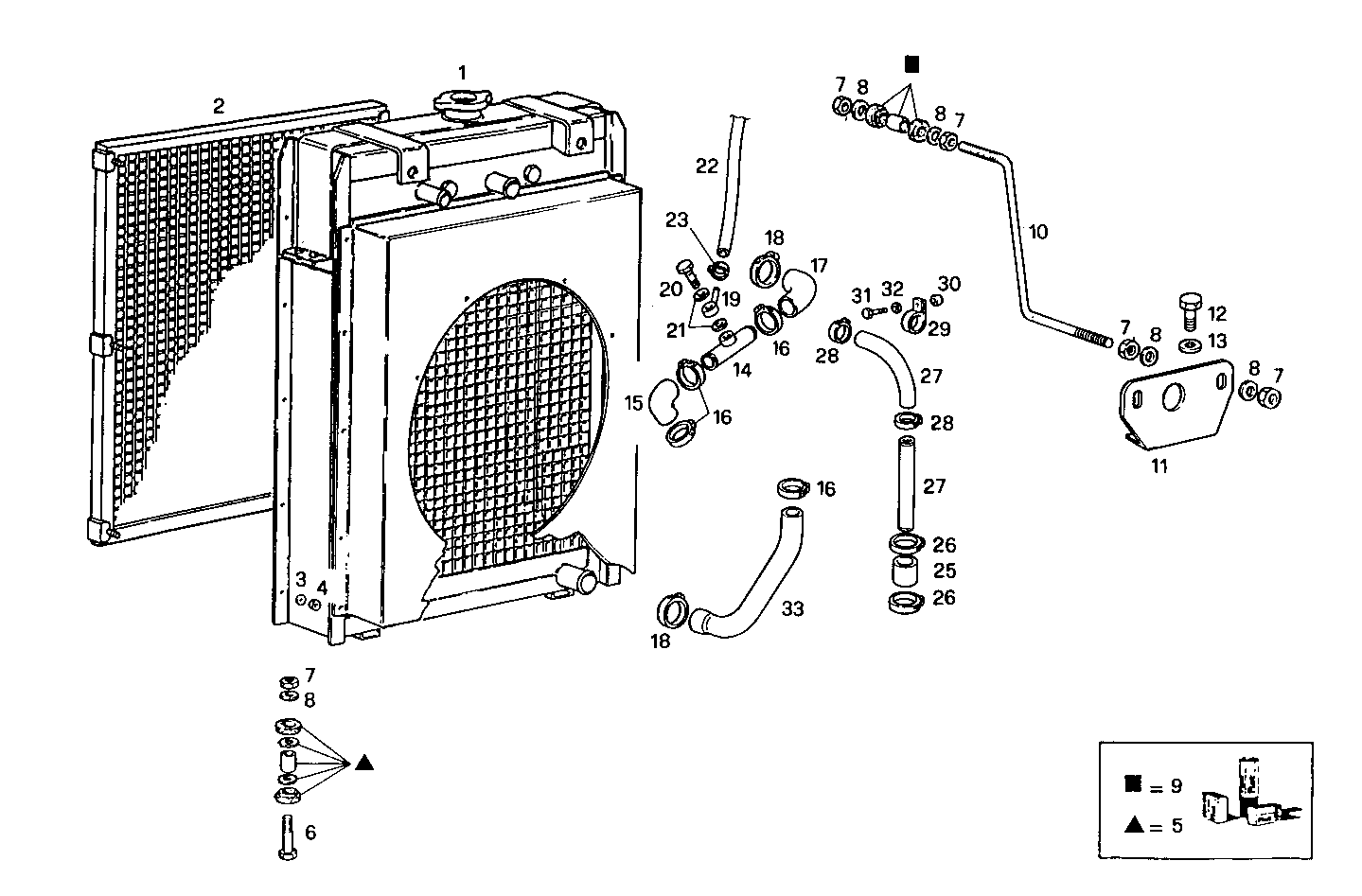

| Item |
Part number |
Description |
|
1 |
8107679 |
WATER RADIATOR ASSY |
|
2 |
8108066 |
PROTECTION |
|
3 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
4 |
17037931 |
HEXAGON NUT M8X1,25 |
|
5 |
8090977 |
KIT-RADIATOR A.S. COMPLETE |
|
6 |
16610724 |
SCREW M12X1,75X70 MM |
|
7 |
17038421 |
HEXAGON NUT M12 (8) |
|
8 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
9 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
10 |
8031385 |
TIE ROD |
|
11 |
8031386 |
RETAINER |
|
12 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
14 |
8031388 |
WATER PIPE |
|
15 |
4952453 |
WATER HOSE |
|
16 |
17764891 |
CLIP Ø40/60 MM |
|
17 |
4951318 |
RUBBER SLEEVE Ø45/50 MM |
|
18 |
17764991 |
CLIP Ø50/70 MM |
|
19 |
98405463 |
PIPE SOCKET |
|
20 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
21 |
4858606 |
GASKET Ø10X14X1 MM |
|
22 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
23 |
18087993 |
CLIP Ø8/16 MM |
|
24 |
8031387 |
WATER PIPE |
|
25 |
61321610 |
RUBBER SLEEVE |
|
26 |
17764691 |
CLIP Ø25/40 MM |
|
27 |
8029471 |
HOSE L=510 MM |
|
28 |
17764591 |
CLIP Ø20/32 MM |
|
29 |
4033229 |
CLIP |
|
30 |
4930712 |
SPACING BAR |
|
31 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
32 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
33 |
8024991 |
RUBBER SLEEVE |
