8061SRM24.00

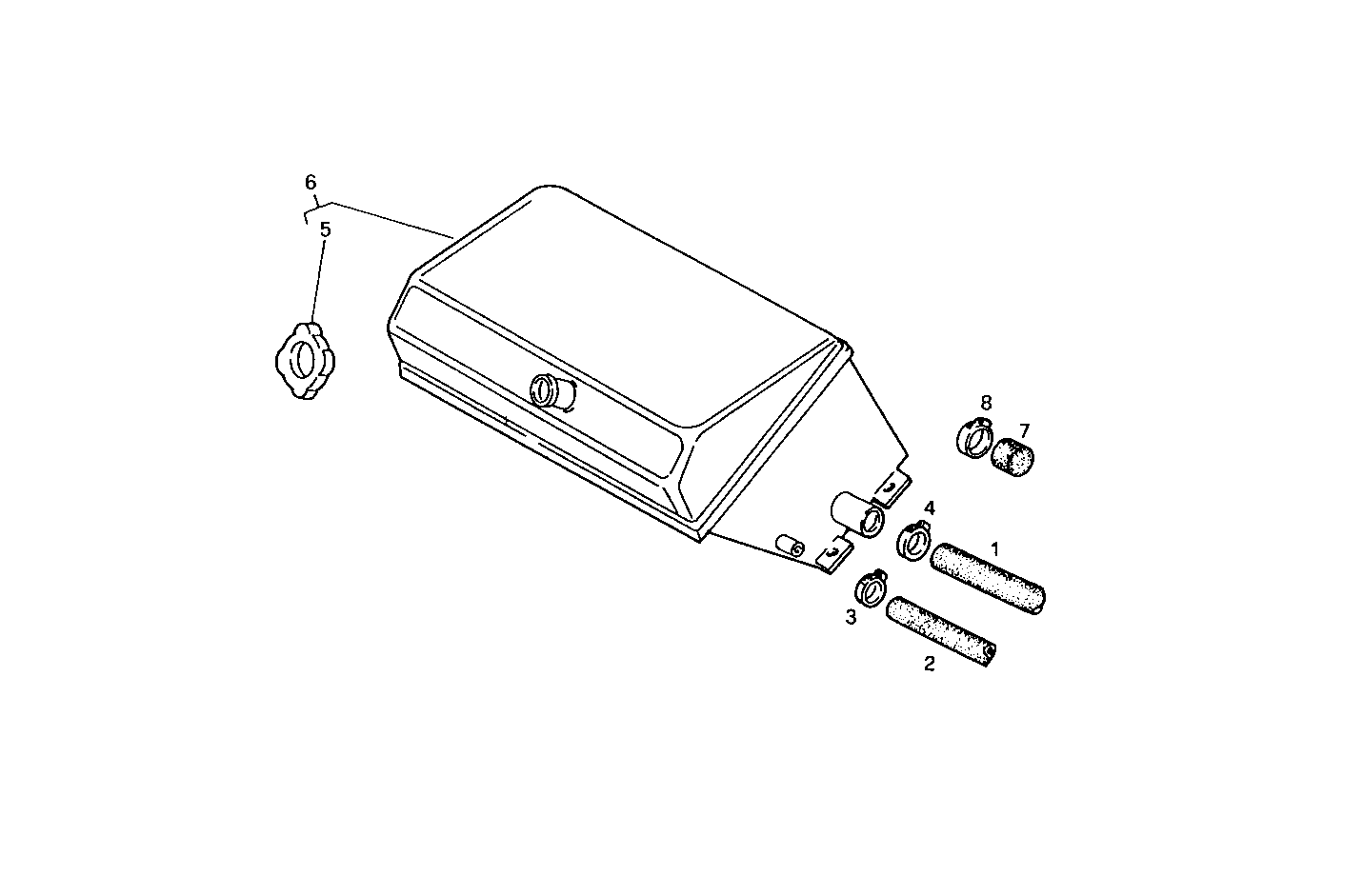

3290.005 EXPANSION TANK
| Item | Part number | Description |
|---|---|---|
| 1 | 8110633 | WATER HOSE |
| 2 | 8113815 | WATER HOSE |
| 3 | 12179690 | CLIP |
| 4 | 17764592 | CLIP Ø20/32 MM |
| 5 | 4845412 | PLUG |
| 6 | 93902289 | EXPANSION TANK ASSY |
| 7 | 8113817 | PLUG |
| 8 | 12176790 | CLIP |
