8061SRM24.10

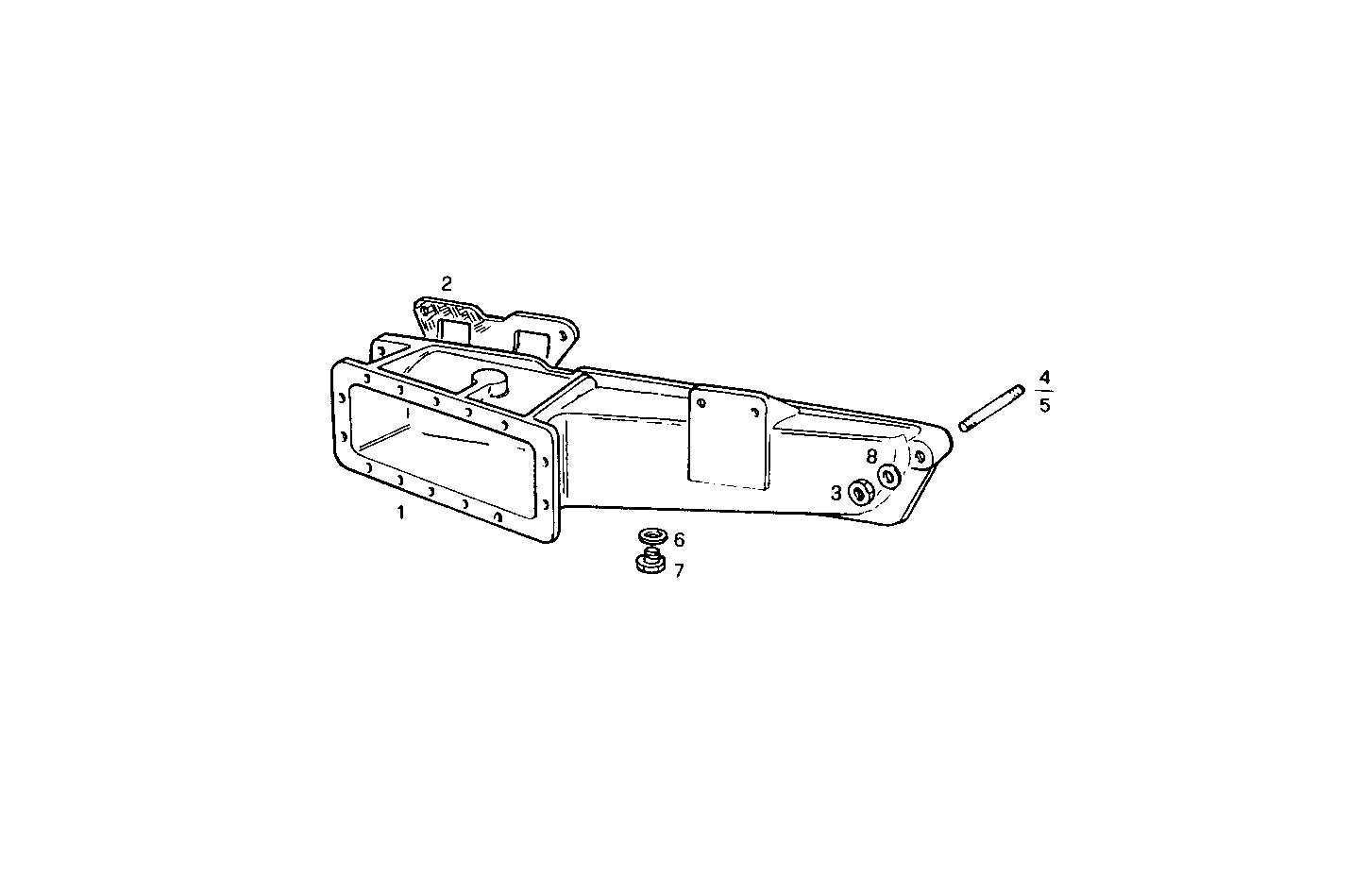

0710.010 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8111836 | INTAKE ELBOW |
| 2 | 4601827 | INTAKE ELBOW GASK. |
| 3 | 17037931 | HEXAGON NUT M8X1,25 |
| 4 | 13516821 | STUD M8X12X20 MM |
| 5 | 13517321 | STUD M8X35 MM |
| 6 | 10259960 | WASHER Ø18,2X24 MM SP=1,5 MM |
| 7 | 10300840 | LOCK PLUG M18X1,5 |
| 8 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
