8061SRM24.10

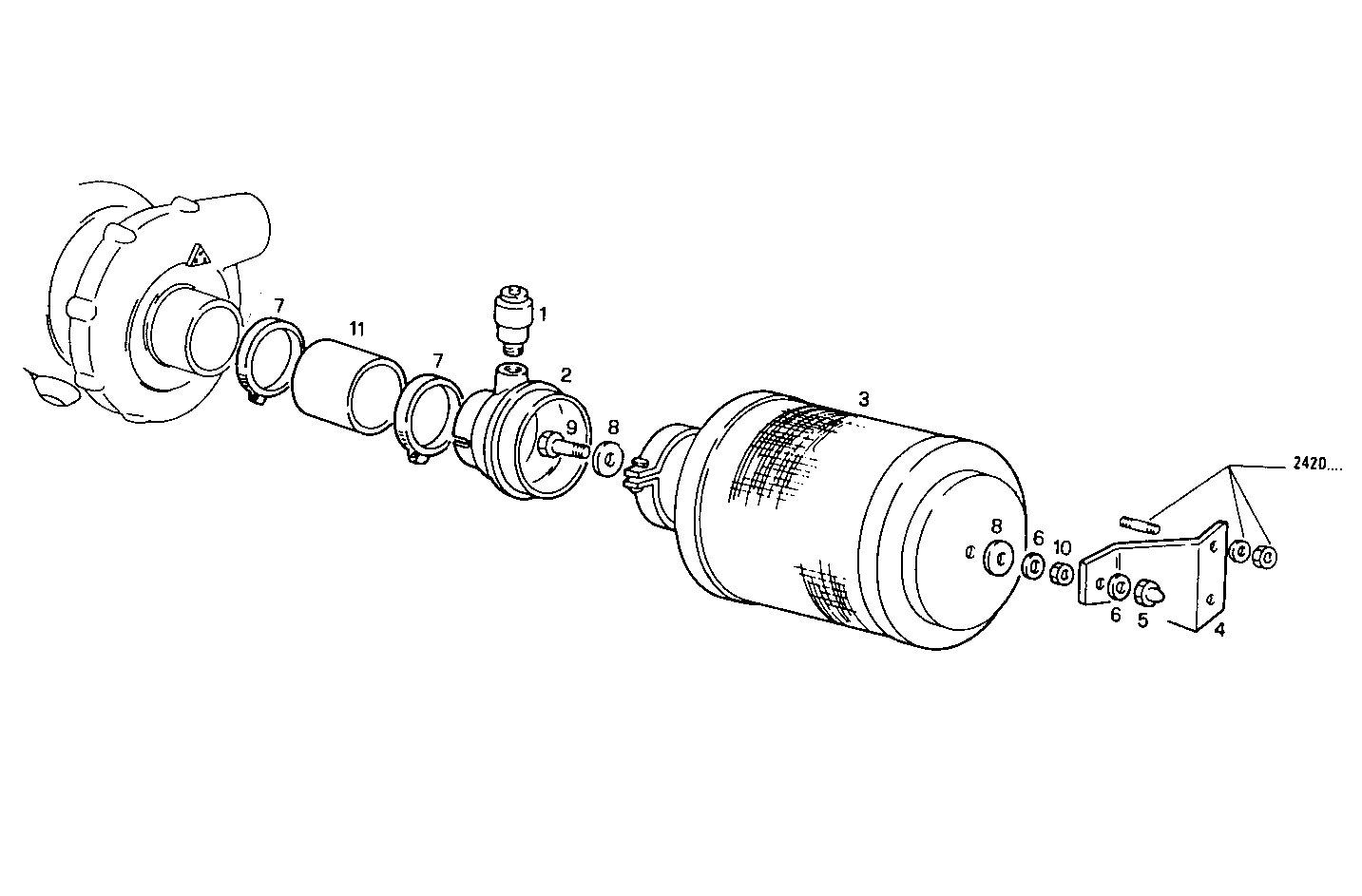

2210.004 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
| 2 | 4936788 | AIR PIPE/DUCT |
| 3 | 8113000 | AIR CLEANER ASSY |
| 4 | 8113343 | RETAINER |
| 5 | 8101714 | NUT M8X1,25 |
| 6 | 11193879 | SPRING WASHER Ø8X16 MM |
| 7 | 12177290 | CLIP Ø62-82 MM |
| 8 | 12644301 | WASHER |
| 9 | 16043821 | HEXAGON BOLT M8X30 MM |
| 10 | 16102311 | HEXAGON NUT M8 |
| 11 | 4918897 | RUBBER SLEEVE |
