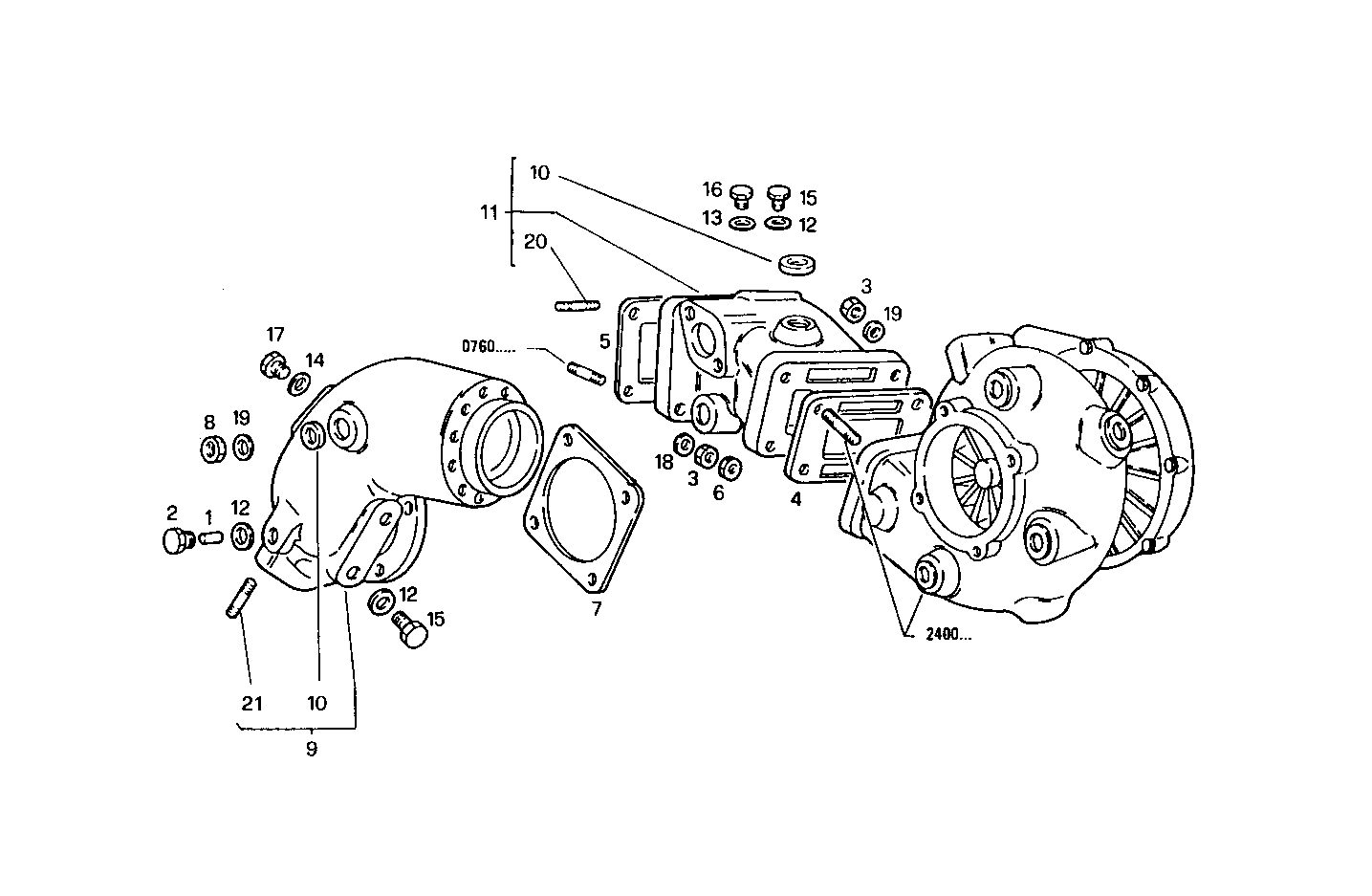

| Item |
Part number |
Description |
|
1 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
2 |
4917793 |
PLUG M18 |
|
3 |
4927248 |
NUT M10X1,25 |
|
4 |
4632123 |
GASKET |
|
5 |
8100140 |
GASKET |
|
6 |
8100961 |
NUT M10X1,25 |
|
7 |
8009599 |
GASKET |
|
8 |
12164711 |
HEXAGON NUT M10X1,25 |
|
9 |
8112754 |
AIR MANIFOLD ASSY |
|
10 |
14282470 |
LOCK PLUG Ø28 MM |
|
11 |
8102472 |
EXHAUST ELBOW ASSY |
|
12 |
10259960 |
WASHER Ø18,2X24 MM SP=1,5 MM |
|
13 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
14 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
15 |
10300840 |
LOCK PLUG M18X1,5 |
|
16 |
11903140 |
PLUG M10X1,25 |
|
17 |
10300540 |
PLUG M12X1,5 |
|
18 |
10370501 |
WASHER |
|
19 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
20 |
13516821 |
STUD M8X12X20 MM |
|
21 |
13517021 |
STUD M8X25 MM |
