8061SRM24.10

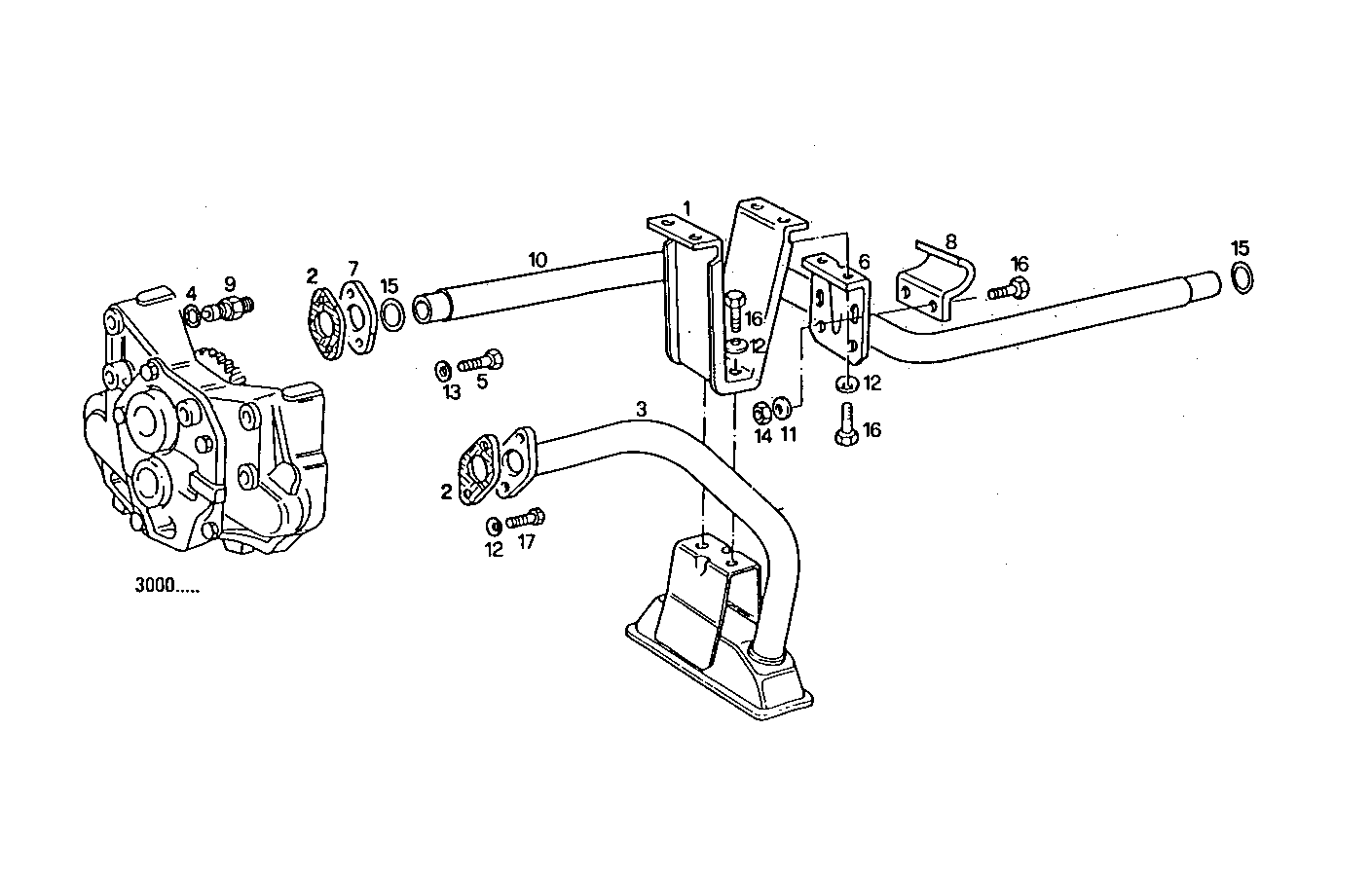

3010.013/01 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4767554 | RETAINER |
| 2 | 4617482 | FLAT ENGINE GASKET |
| 3 | 4798802 | SUCTION STRAINER |
| 4 | 561293 | O-RING |
| 5 | 16625734 | HEXAGON BOLT M8X35 |
| 6 | 4775923 | FASTENING BRACKET |
| 7 | 4773265 | FLANGED SOCKET |
| 8 | 4777690 | CLIP |
| 9 | 4785501 | SCREW CONNECTOR M10X1,25 |
| 10 | 4817902 | OIL LINE |
| 11 | 10519601 | WASHER Ø8X17 MM |
| 12 | 11193879 | SPRING WASHER Ø8X16 MM |
| 13 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 14 | 14048217 | HEXAGON NUT M8 |
| 15 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
| 16 | 16043221 | HEXAGON BOLT M8X16 MM |
| 17 | 16043421 | HEXAGON BOLT M8X20 MM |
