8061SRM24.10

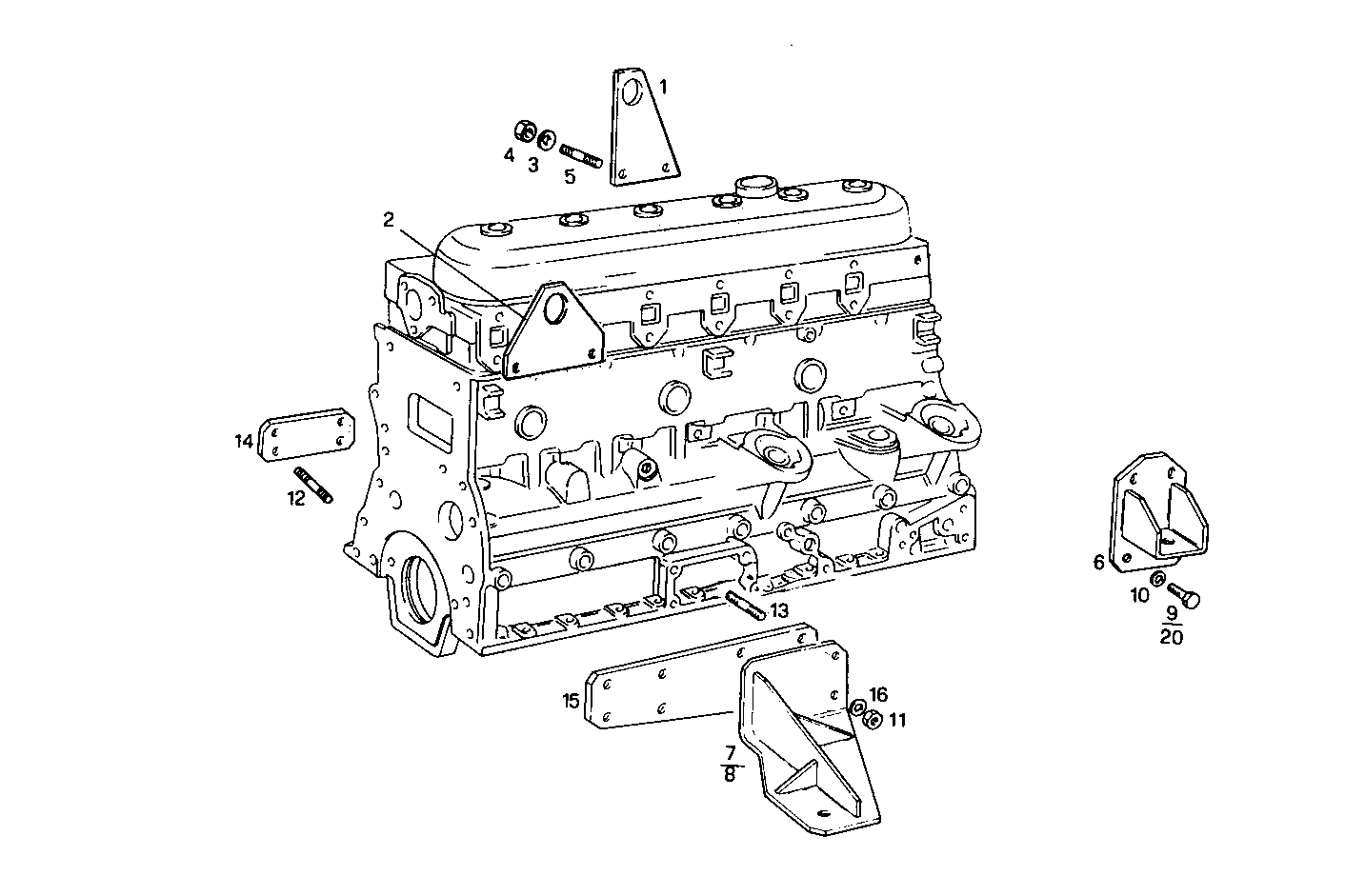

4500.016/01 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 4930458 | PLATE |
| 2 | 4932618 | HOOK |
| 3 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 16746624 | STUD M8X20 MM (8.8) |
| 6 | 8113092 | SUPPORT REAR |
| 7 | 8105561 | SUPPORT RIGHT |
| 8 | 8105562 | SUPPORT LEFT |
| 9 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 10 | 17090174 | SPRING WASHER �10X20 MM |
| 11 | 17038421 | HEXAGON NUT M12 (8) |
| 12 | 16733224 | STUD M12X1,75X30 |
| 13 | 16733424 | STUD M12X1,75X40 |
| 14 | 4927434 | SPACING BAR RIGHT |
| 15 | 4721078 | PLATE LEFT |
| 16 | 17091074 | WASHER �12X24X2,8 MM |
| 18 | 15970521 | HEXAGON BOLT M10X20 MM |
| 20 | 11306921 | SCREW M10X1,25X30 |
