8061SRM24.10

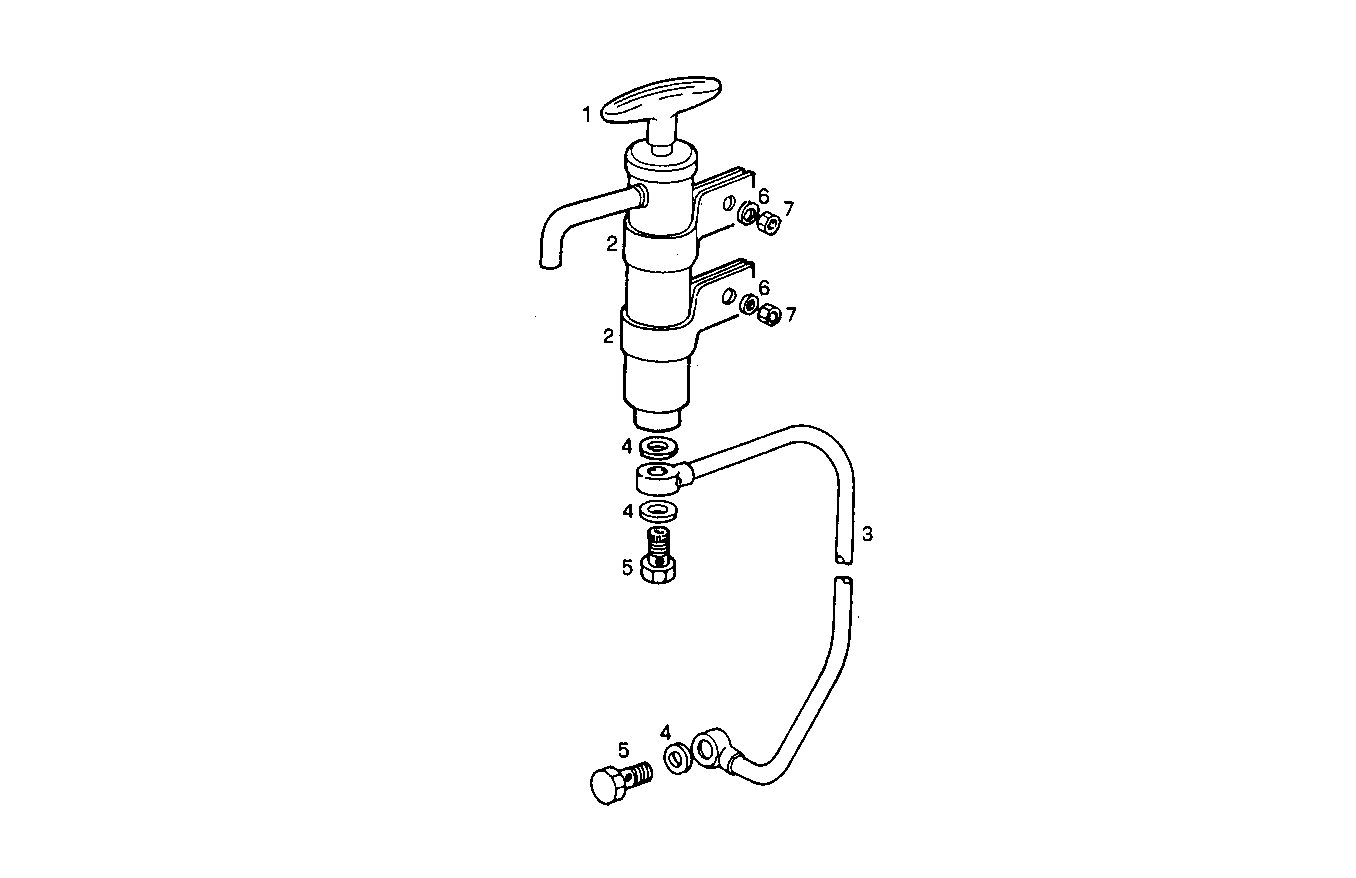

5510.039 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4928851 | CLIP |
| 3 | 8100275 | OIL LINE |
| 4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 5 | 4864084 | BANJO BOLT M16X1,5 |
| 6 | 11194074 | WASHER Ø8,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
