8061SRM24.10

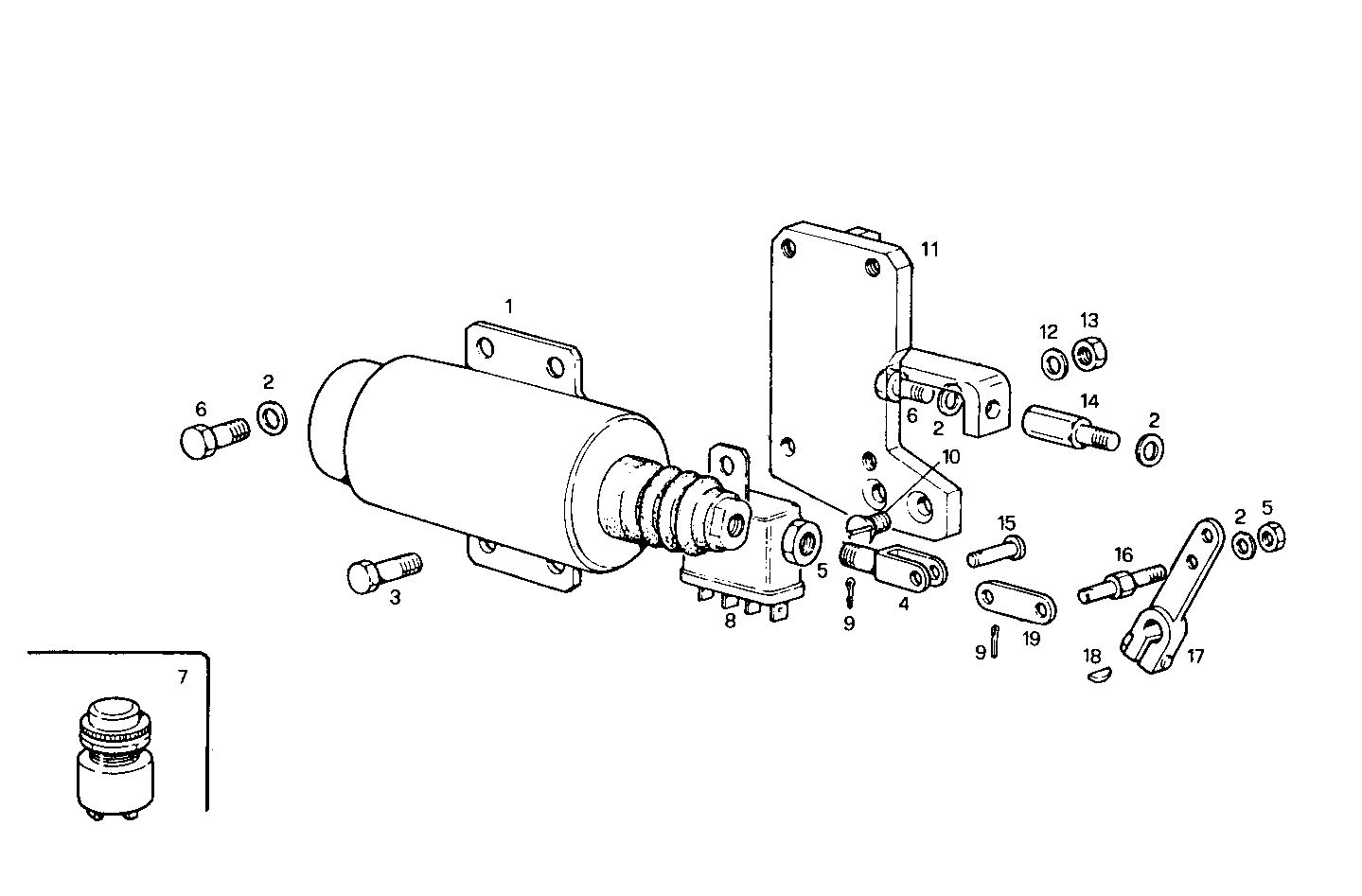

5650.001 ELECTRIC STOP ENGINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8105420 | SOLENOID 12V opt. |
| 2 | 11197771 | SPRING WASHER �6X12 MM SP=1,2 MM |
| 3 | 10978021 | HEXAGON BOLT M5X20 MM |
| 4 | 8108834 | CLEVIS |
| 5 | 15896221 | HEXAGON NUT M6X1 |
| 6 | 10902121 | HEXAGON BOLT M6X14 MM |
| 7 | 8105611 | PUSH BUTTON STOP |
| 8 | 8109522 | RELAY STOP |
| 9 | 10734101 | SPLIT PIN �1,3 MM |
| 10 | 10353411 | C'SUNK SCREW M6X12 MM |
| 11 | 8108879 | SUPPORT |
| 12 | 14496301 | WASHER �5,4 MM |
| 13 | 15896411 | HEXAGON NUT M5 |
| 14 | 8110818 | SPACING BAR |
| 15 | 17718411 | PIN �5 MM |
| 16 | 8110876 | SPACING BAR |
| 17 | 772487 | LEVER |
| 18 | 8101048 | KEY 3X5X12,5 |
| 19 | 8110880 | CLEVIS |
