8061SRM24.10

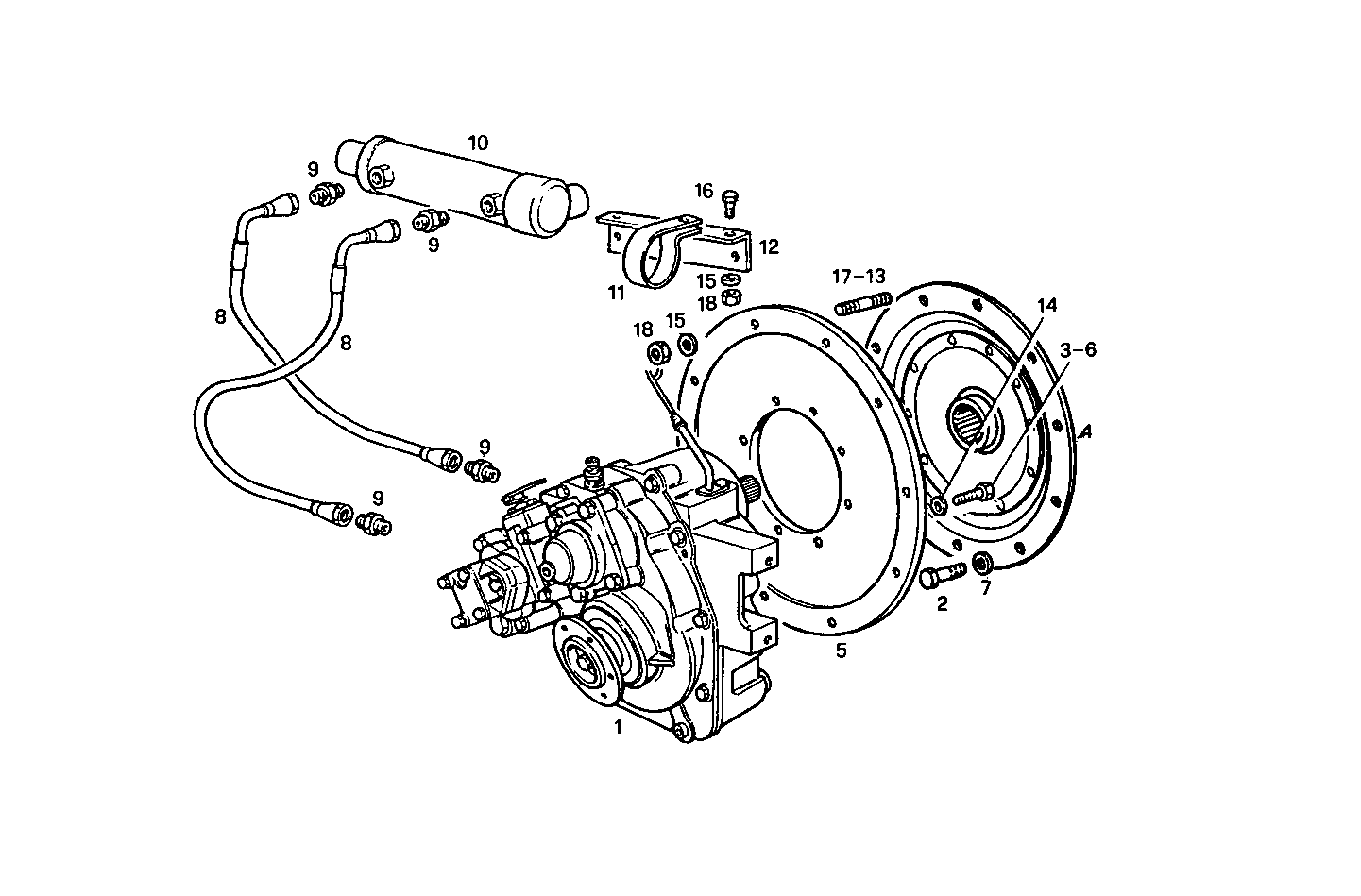

A51130011/01 MARINE GEAR TWIN DISC MG 502-1 (ang. 10º) - ratio 2.00:1

Iveco/FPT MARINE GEAR TWIN DISC MG 502-1 (ang. 10º)

Item Part number Description
1 8106905 MARINE GEAR 2,00:1
2 15970521 HEXAGON BOLT M10X20 MM
3 4916789 SCREW
4 8113696 FLEXIBLE COUPLING
5 4931240 FLANGE
6 4931242 SCREW
7 10571879 WASHER
8 4935779 HOSE
9 4935465 PIPE SOCKET
10 4919188 MARINE GEAR OIL HEAT EXCH ASSY
11 8100667 CLIP
12 8113053 RETAINER [up to 05-94]
13 13449721 STUD M10X15X30
14 11198679 SPRING WASHER Ø13 MM
15 11198379 SPRING WASHER Ø10X20 MM SP=2,6
16 15004021 HEXAGON BOLT M10X1,25X25 MM
17 13449521 STUD M10X15X25
18 12164711 HEXAGON NUT M10X1,25
