8061SRM24.10

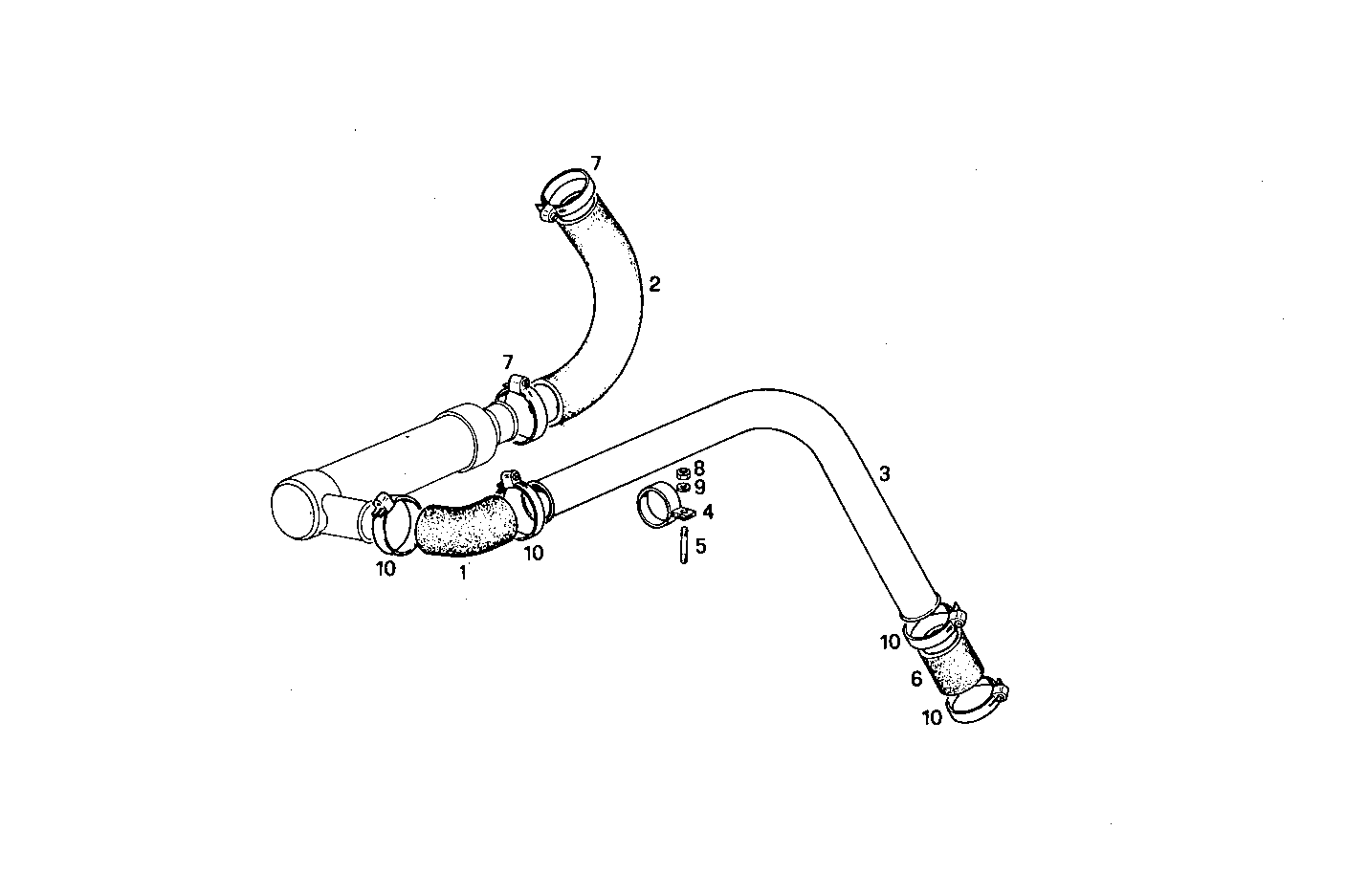

A51790004/03 MARINE GEAR HURTH HSW 630 A - ratio 1.56:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8017516 | WATER HOSE |
| 2 | 4929958 | RUBBER SLEEVE |
| 3 | 8100297 | WATER PIPE [up to 05-94] |
| 4 | 4936741 | CLIP |
| 5 | 13449321 | STUD M10X1,25X15X20 MM |
| 6 | 17742687 | RUBBER SLEEVE |
| 7 | 17764993 | CLIP Ø50/70 MM |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 11198371 | SPRING WASHER Ø10X20 MM |
| 10 | 17764793 | CLIP Ø32/50 MM |
