8061SRM25.10

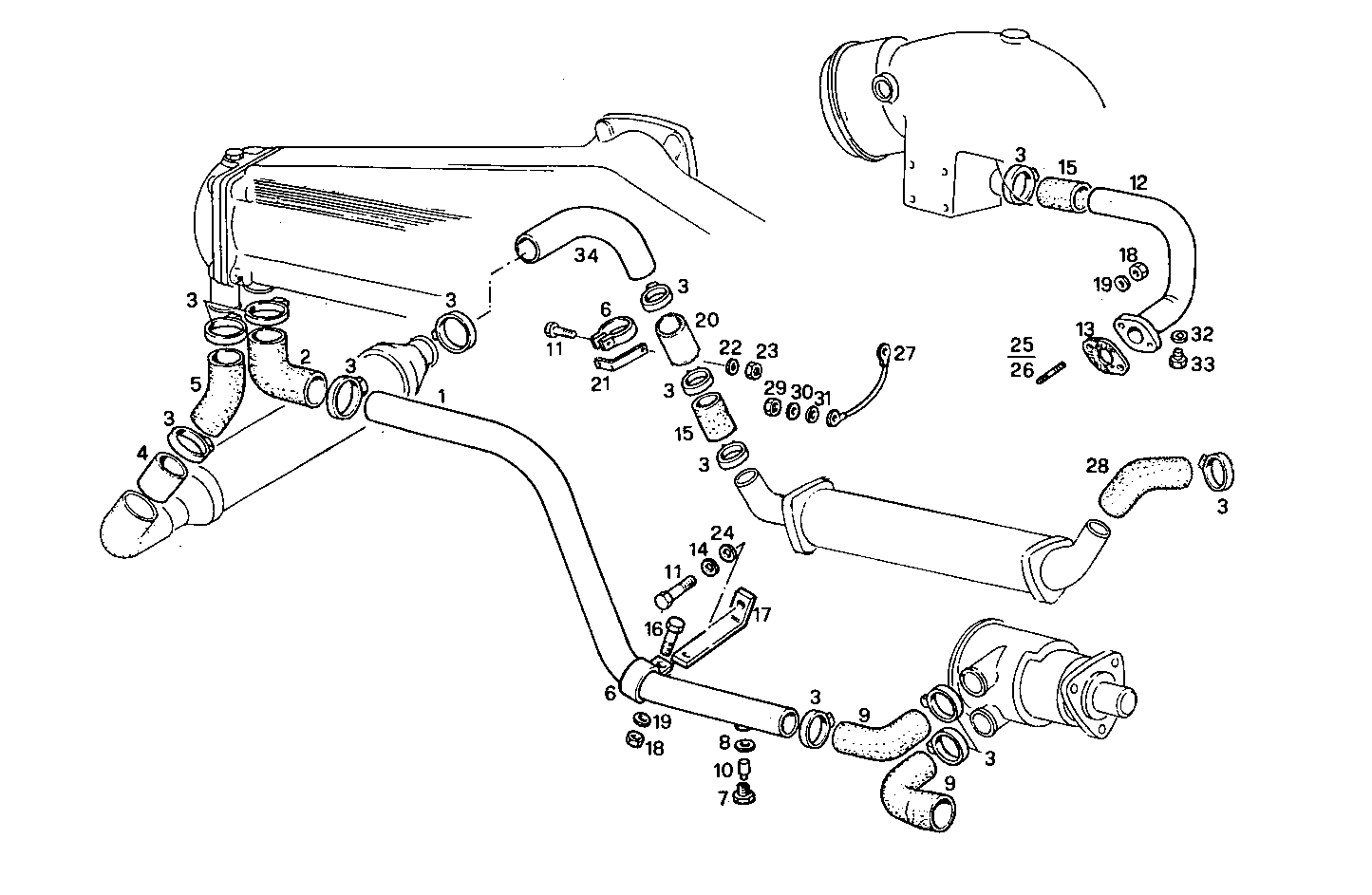

3390.015 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8006647 | WATER PIPE |
| 2 | 8102099 | RUBBER SLEEVE |
| 3 | 17764893 | CLIP �40/60 MM |
| 4 | 8006643 | WATER PIPE |
| 5 | 8813238 | WATER HOSE |
| 6 | 4936741 | CLIP |
| 7 | 4917793 | PLUG M18 |
| 8 | 4858610 | WASHER �18X24 MM SP=1,5 MM |
| 9 | 8100546 | RUBBER SLEEVE |
| 10 | 8105277 | SACRIFICAL ANODE �14 MM |
| 11 | 15970521 | HEXAGON BOLT M10X20 MM |
| 12 | 8006644 | WATER PIPE |
| 13 | 8008755 | FLAT ENGINE GASKET |
| 14 | 17091074 | WASHER �12X24X2,8 MM |
| 15 | 17742687 | RUBBER SLEEVE |
| 16 | 16605524 | HEXAGON BOLT M8X20 MM |
| 17 | 8007479 | RETAINER |
| 18 | 17037931 | HEXAGON NUT M8X1,25 |
| 19 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 20 | 8009539 | WATER PIPE |
| 21 | 8114420 | RETAINER |
| 22 | 17090174 | SPRING WASHER �10X20 MM |
| 23 | 12164711 | HEXAGON NUT M10X1,25 |
| 24 | 17095304 | WASHER �12X24 MM |
| 25 | 13516921 | STUD M8X12X22 MM |
| 26 | 16730024 | STUD M8X55 |
| 27 | 8109924 | ENGINE HARNESS GND |
| 28 | 8017516 | WATER HOSE |
| 29 | 15896411 | HEXAGON NUT M5 |
| 30 | 17094504 | WASHER �5,3X10 MM |
| 31 | 11199271 | SPRING WASHER �5X10 MM |
| 33 | 8008747 | PLUG |
| 34 | 4644083 | WATER HOSE |
