8061SRM25.10

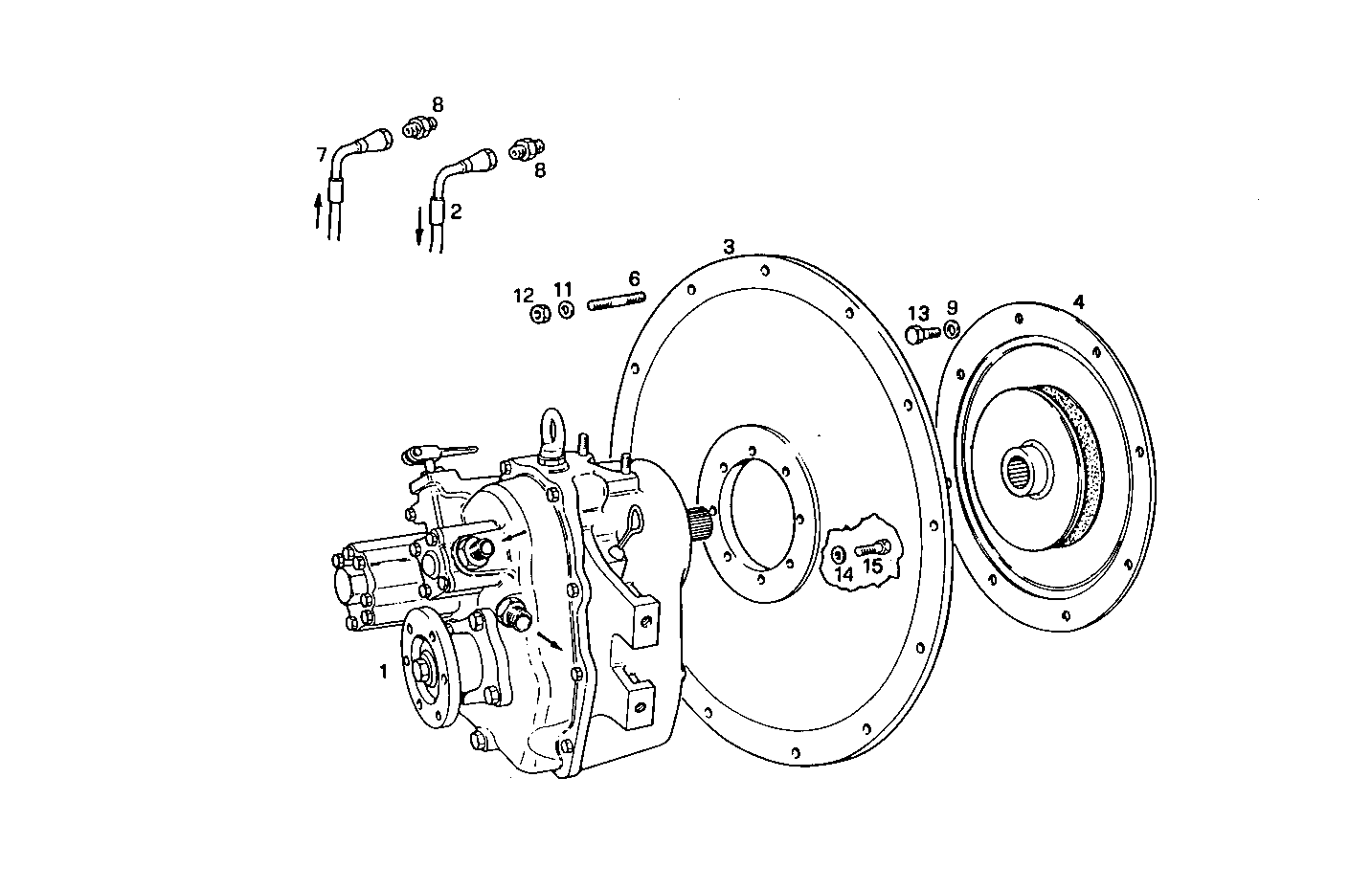

A51720011 MARINE GEAR TECHNODRIVE TM 170 - ratio 2.04:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8019195 | MARINE GEAR 2,04:1 |
| 2 | 8105620 | HOSE |
| 3 | 8012407 | COUPLING BELL |
| 4 | 8113695 | FLEXIBLE COUPLING |
| 5 | 8022809 | FLEXPLATE |
| 6 | 13449521 | STUD M10X15X25 |
| 7 | 4935779 | HOSE |
| 8 | 8101073 | PIPE SOCKET |
| 9 | 10571879 | WASHER |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17038221 | HEXAGON NUT M10 |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 17091074 | WASHER Ø12X24X2,8 MM |
| 15 | 16610024 | SCREW M12X35 |
