8061SRM25.10

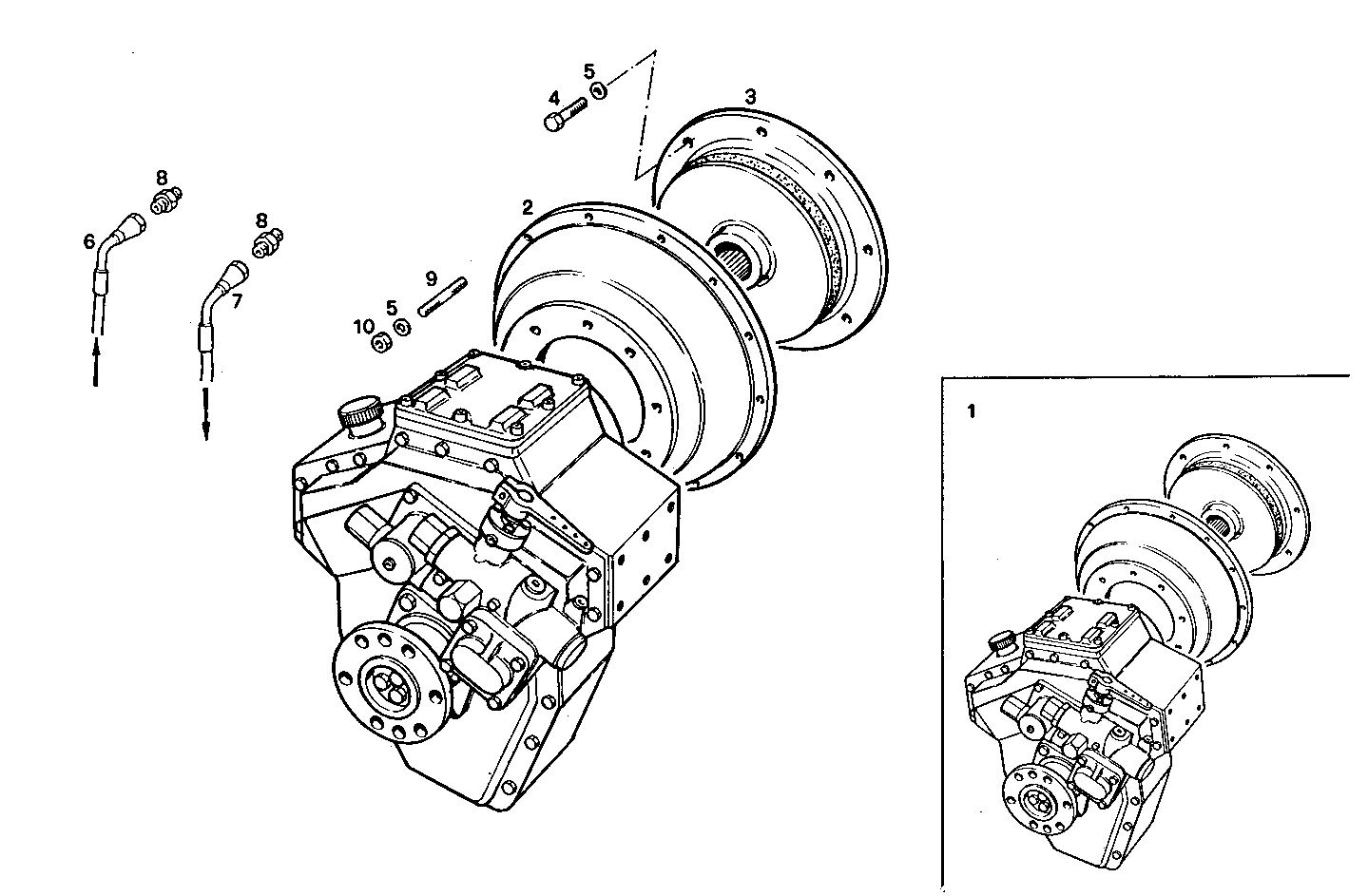

A51730001 MARINE GEAR TECHNODRIVE TM 200 B - ratio 3.60:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8012762 | MARINE GEAR 3,60:1 |
| 2 | 8012798 | COUPLING BELL |
| 3 | 8012802 | FLEXIBLE COUPLING |
| 4 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 4935779 | HOSE |
| 7 | 4936603 | OIL HOSE |
| 8 | 4935465 | PIPE SOCKET |
| 9 | 13449521 | STUD M10X15X25 |
| 10 | 17038221 | HEXAGON NUT M10 |
