8061SRM25.10

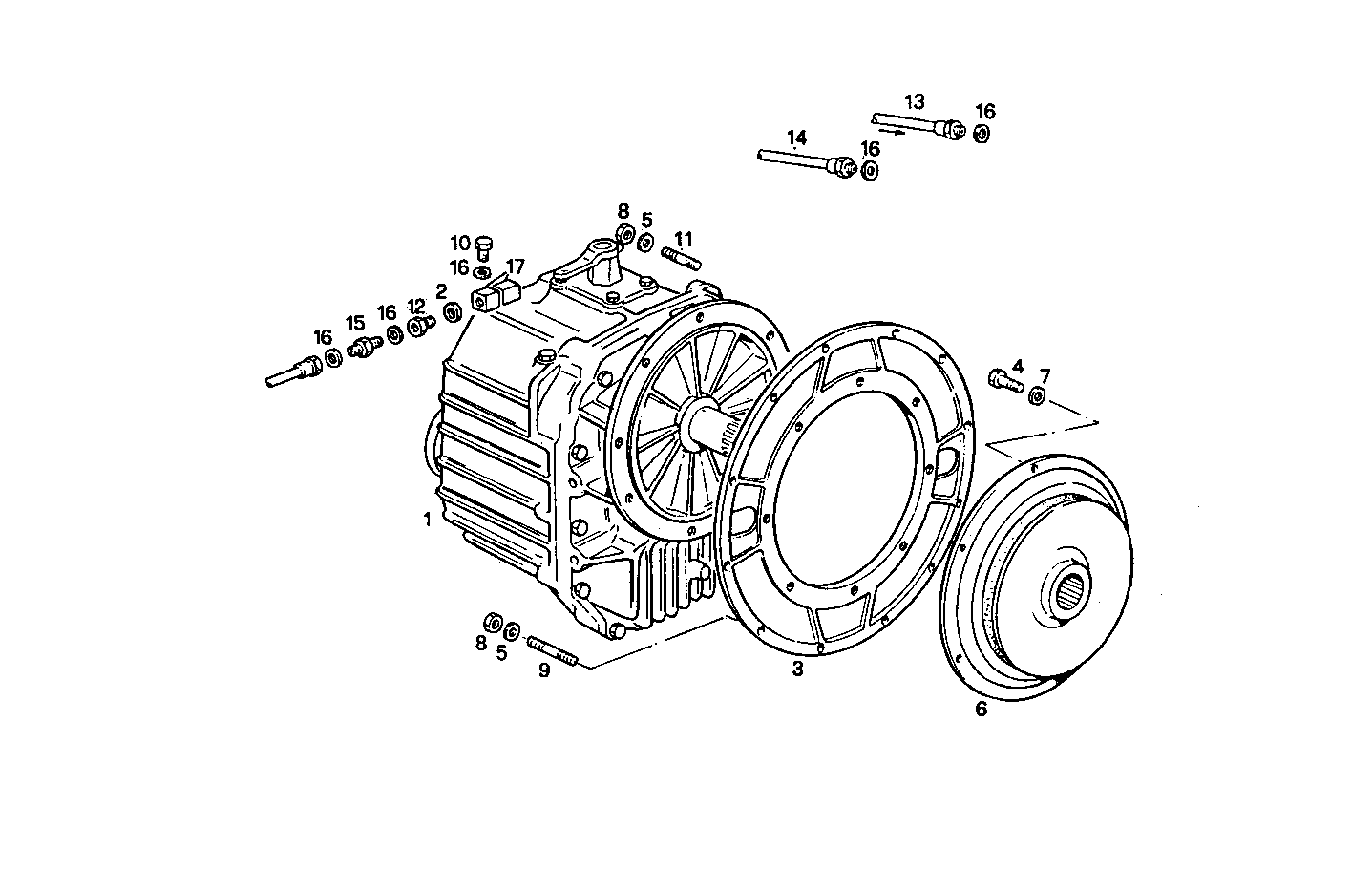

A51790013 MARINE GEAR HURTH HSW 630 A - ratio 1.56:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8110095 | MARINE GEAR 1,56:1 |
| 2 | 11270460 | GASKET Ø17X21X1,5 MM |
| 3 | 4934782 | COUPLING BELL |
| 4 | 15970521 | HEXAGON BOLT M10X20 MM |
| 5 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 6 | 8113696 | FLEXIBLE COUPLING |
| 7 | 10571879 | WASHER |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 13449721 | STUD M10X15X30 |
| 10 | 10183317 | LOCK PLUG M16X1,5 |
| 11 | 13546321 | STUD M10X25 MM |
| 12 | 8105826 | PIPE SOCKET |
| 13 | 4935780 | OIL HOSE |
| 14 | 8111496 | HOSE |
| 15 | 4935465 | PIPE SOCKET |
| 16 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
| 17 | 8107173 | PIPE SOCKET |
