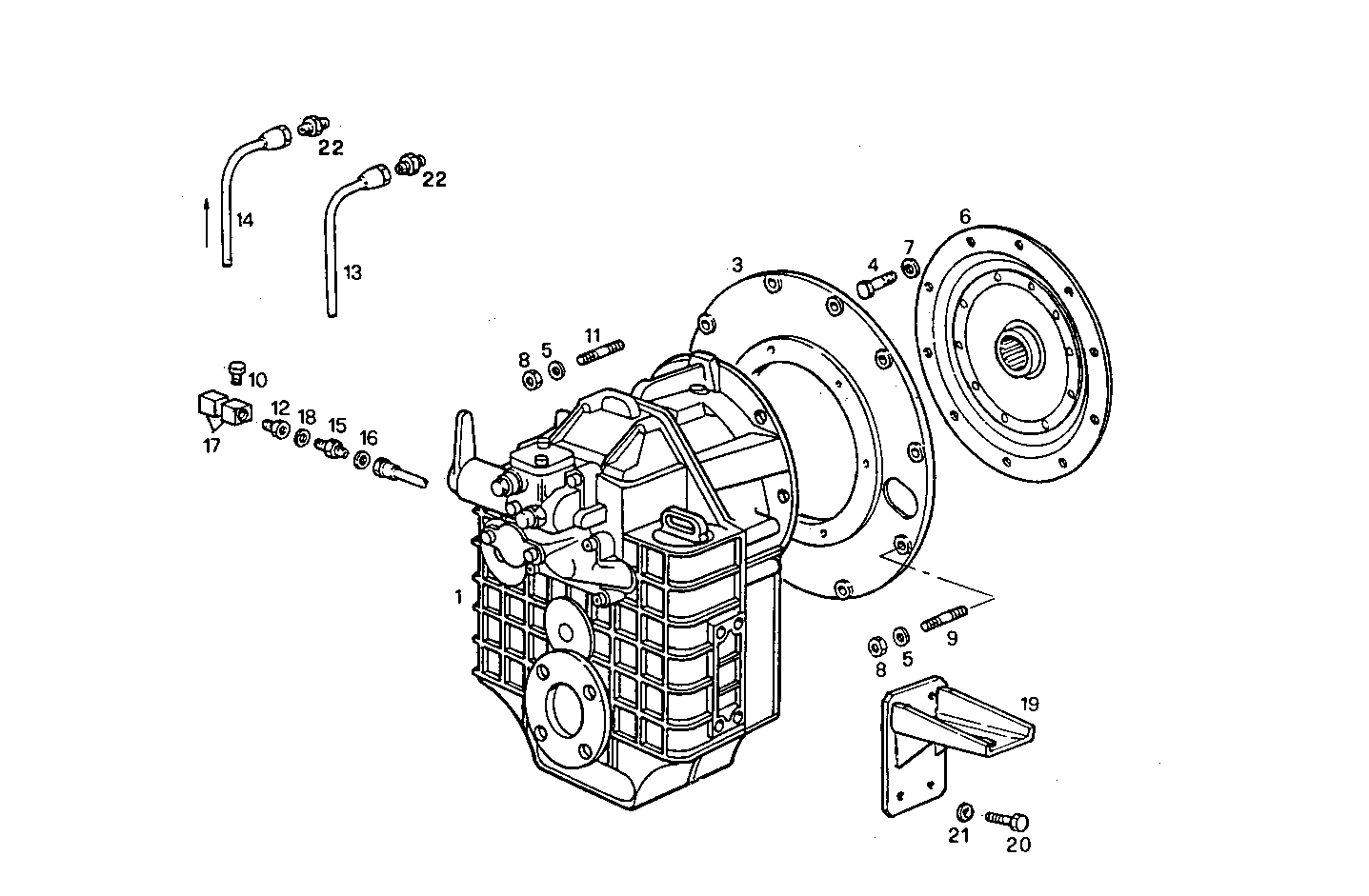

A51900006 MARINE GEAR HURTH HSW 630 V - ratio 1.56:1

Iveco/FPT MARINE GEAR HURTH HSW 630 V

Item Part number Description
1 8005567 MARINE GEAR 1,56:1
3 4934782 COUPLING BELL
4 15004021 HEXAGON BOLT M10X1,25X25 MM
5 11198371 SPRING WASHER Ø10X20 MM
6 8113696 FLEXIBLE COUPLING
7 10571879 WASHER
8 12164711 HEXAGON NUT M10X1,25
9 13449721 STUD M10X15X30
10 10183317 LOCK PLUG M16X1,5
11 13546321 STUD M10X25 MM
12 8105826 PIPE SOCKET
13 4935780 OIL HOSE
14 8111496 HOSE
15 4935465 PIPE SOCKET
16 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
17 8107173 PIPE SOCKET
18 11270460 GASKET Ø17X21X1,5 MM
19 8012536 SUPPORT
20 16609824 HEXAGON BOLT M12X1,75X25 MM
21 17091074 WASHER Ø12X24X2,8 MM
22 8101073 PIPE SOCKET
