8061SRM25.10

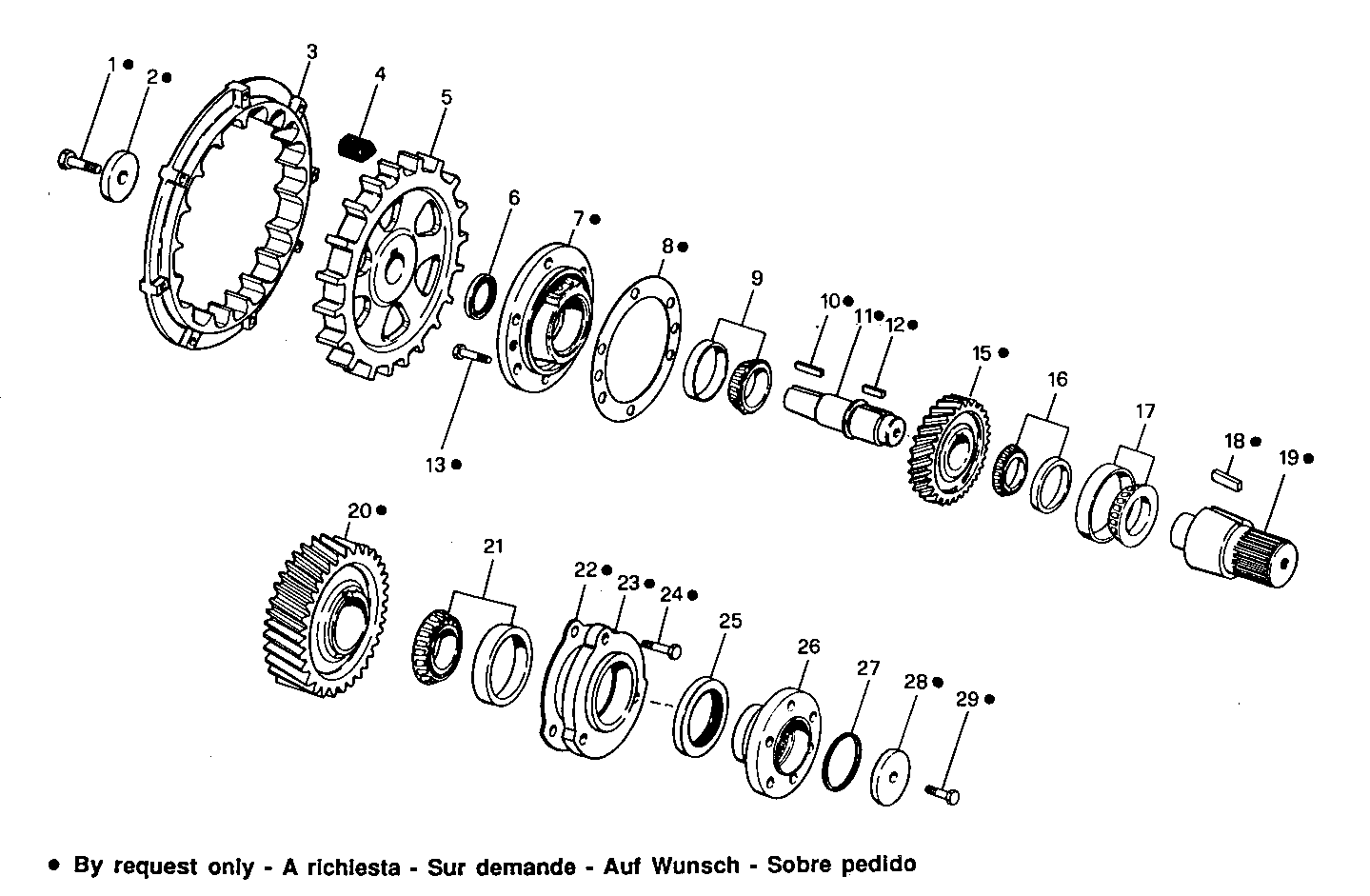

T5114001/02 MARINE GEAR - (components)

Iveco/FPT MARINE GEAR

Item Part number Description
3 4919968 FLANGE
4 4934462 RUBBER PAD
5 4919969 RING
6 8090448 O-RING
9 8090449 DRIVE BEARING
16 8090450 DRIVE BEARING 1,00:1 - 2,42:1 - 2,91:1
17 8090749 DRIVE BEARING 1,00:1 - 2,42:1 - 2,91:1
17 8090474 DRIVE BEARING 1,47:1 - 1,93:1
21 8090475 DRIVE BEARING 1,47:1 - 1,93:1
25 8090596 O-RING 1,00:1 - 2,42:1 - 2,91:1
25 8090451 O-RING 1,47:1 - 1,93:1
26 8090452 FLANGE 1,47:1 - 1,93:1
26 8090751 FLANGE 1,00:1 - 2,42:1 - 2,91:1
27 8090453 O-RING 1,47:1 - 1,93:1
27 8090599 O-RING 1,00:1 - 2,42:1 - 2,91:1
