8061SRM25.13

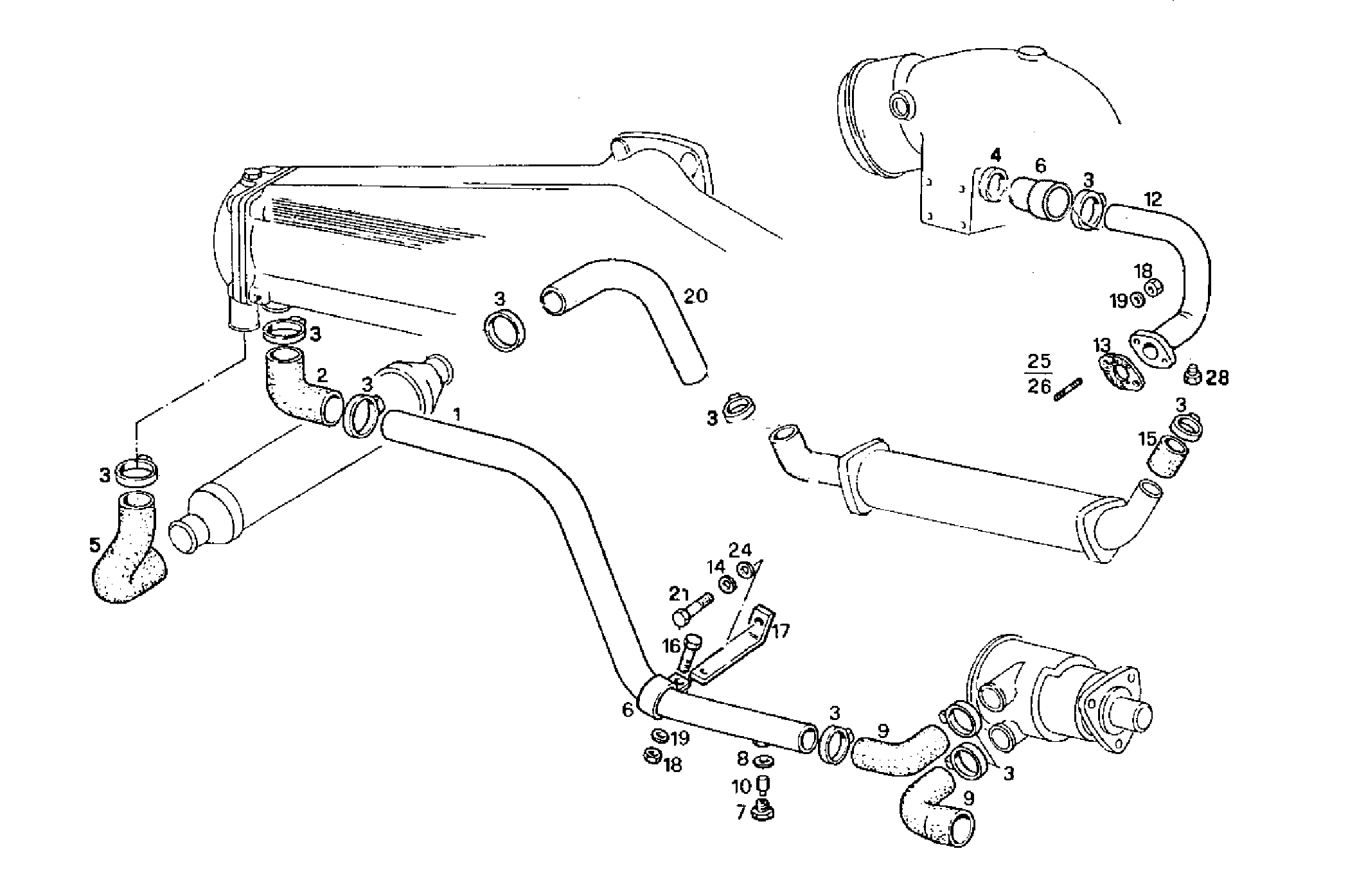

3390.033 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8006647 WATER PIPE
2 8102099 RUBBER SLEEVE
3 17764793 CLIP Ø32/50 MM
4 17764893 CLIP Ø40/60 MM
5 8018455 WATER HOSE
6 8813238 WATER HOSE
7 4917793 PLUG M18
8 4858610 WASHER Ø18X24 MM SP=1,5 MM
9 8100546 RUBBER SLEEVE
10 8105277 SACRIFICAL ANODE Ø14 MM
12 8017130 WATER PIPE
13 8008755 FLAT ENGINE GASKET
14 17091074 WASHER Ø12X24X2,8 MM
15 17742687 RUBBER SLEEVE
16 16605524 HEXAGON BOLT M8X20 MM
17 8007479 RETAINER
18 17037931 HEXAGON NUT M8X1,25
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 8020637 RUBBER SLEEVE
21 16609824 HEXAGON BOLT M12X1,75X25 MM
24 17095304 WASHER Ø12X24 MM
25 13516921 STUD M8X12X22 MM
26 16730024 STUD M8X55
28 8008747 PLUG
