8061SRM25.13

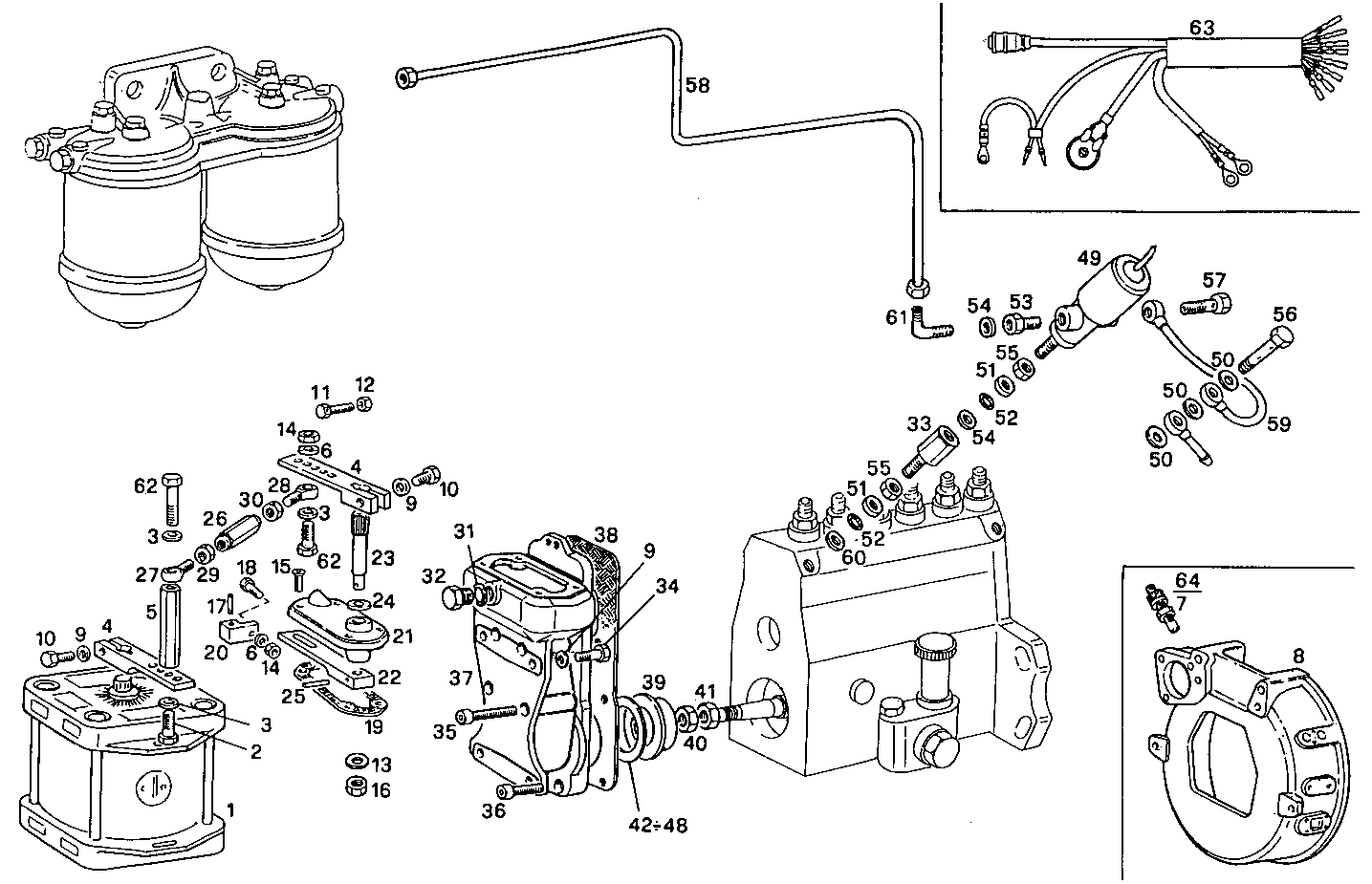

A28010060 ELECTRONIC GOVERNOR WOODWARD - 24V

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

Item Part number Description
1 8107492 INJECTION CONTROL ASSY
2 16602124 SCREW M5X16 MM
3 11199279 SPRING WASHER Ø5X10X0,5 MM
4 8108603 LEVER
5 8108656 SPACING BAR
6 17094714 WASHER Ø6,4X12 MM
7 4931603 PIPE SOCKET
8 8111654 FLYWHEEL HOUSING ASSY
9 17088474 WASHER Ø6X12 MM
10 16603724 HEXAGON BOLT M6X20 MM (8.8)
11 8108715 SCREW
12 17037721 NUT M5X0,8
13 8013188 WASHER
14 17152621 NUT M5X0,8
15 8109360 SCREW M5X12
16 16979331 HEXAGON NUT M6X1
17 8108604 PIN
18 10977821 HEXAGON BOLT M5X16 MM
19 8009910 GASKET
20 8007646 SPACING BAR
21 8007452 COVER ASSY
22 8108601 LEVER
23 8109731 PIN
24 8109732 WASHER
25 14158570 DOWEL PIN Ø2,3 MM
26 8016413 TIE ROD M6X1 [up to 06-95]
27 8016587 TIE ROD RIGHT [up to 06-95]
28 8016588 TIE ROD LEFT [up to 06-95]
29 15896240 NUT M6 - RIGHT [up to 06-95]
30 10789640 NUT M6 - LEFT [up to 06-95]
31 4858609 WASHER Ø16X22 MM SP=1,5 MM
32 16992411 THREADED PLUG M16X1,5
33 4728410 PIPE SOCKET
34 4934404 SCREW
35 14309221 SCREW M6X65
36 16689134 SOCKET-HEAD SCREW M6X16 MM
37 8007453 SUPPORT
38 8013620 GASKET
39 8108613 FLANGE
40 10717311 NUT M12
41 8108716 NUT
42 8012533 SPACING BAR 0,50 MM
43 8012532 SPACING BAR 0,75 MM
44 8012622 SHIM 0,90 MM
45 8012531 SPACING BAR 1,20 MM
46 8012530 SPACING BAR 1,50 MM
47 8012529 SPACING BAR 1,80 MM
48 8012528 SPACING BAR 2,00 MM
49 8017500 ELECTROVALVE [from 04-94]
50 98474308 SEAL GASKET Ø14X22 MM
51 8006339 CAP
52 17281581 O-RING Ø12,37X2,62 MM
53 8102465 VALVE
54 4858608 SEAL GASKET dia.14x19,5x1,5
55 16508711 NUT M14X1,5 [from 05-92]
56 61608319 SCREW CONNECTOR
57 8020609 SCREW CONNECTOR [from 04-94]
58 8022988 FUEL LINE
59 8022989 FUEL LINE
60 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
61 8006222 PIPE SOCKET [from 05-92]
62 8016470 SCREW M5
63 8020693 ENGINE HARNESS ASSY [from 06-95]
64 8018673 PICK-UP
