8061SRM25.33

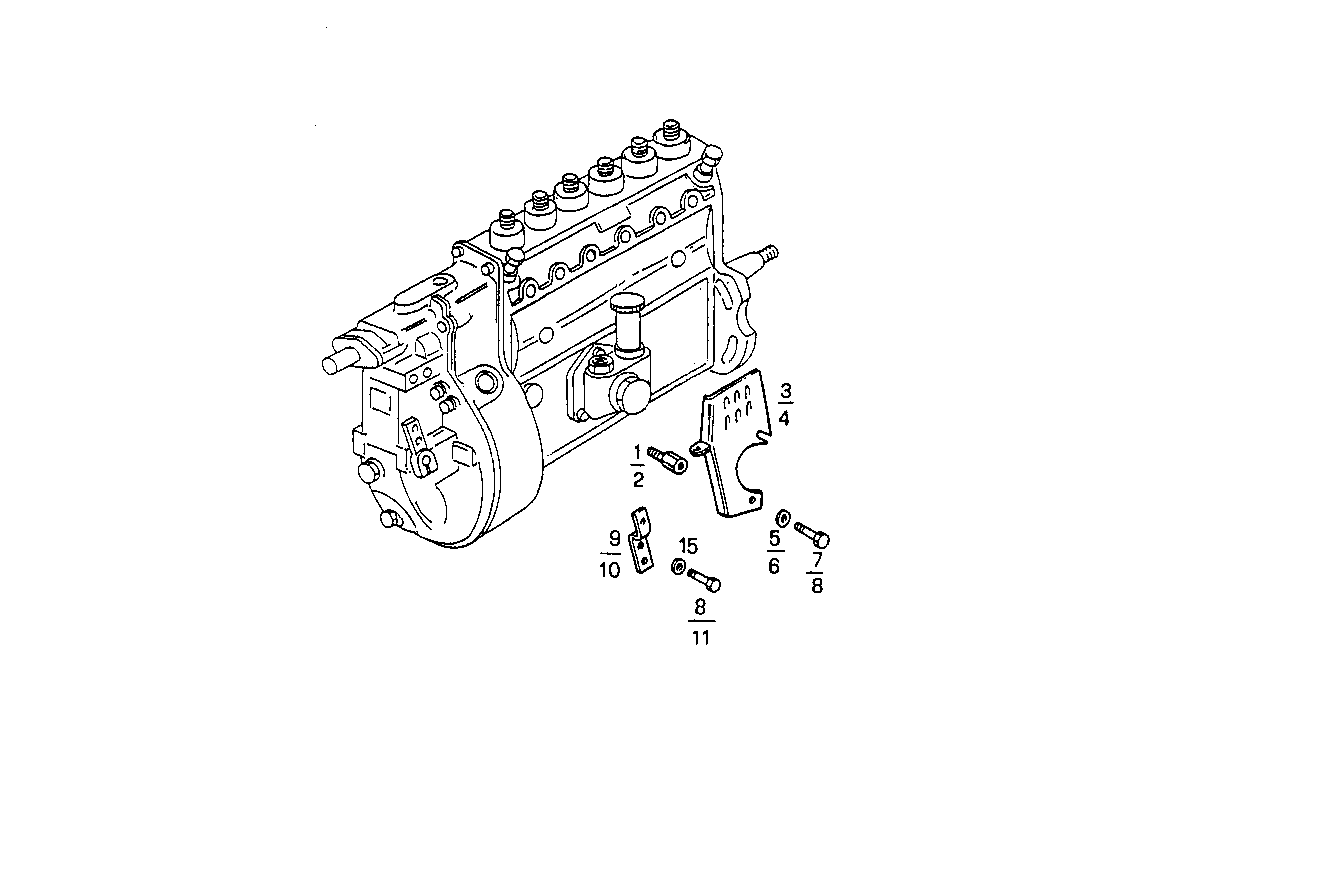

5600.007 HAND ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8012080 | SPACING BAR [from 05-92] |
| 2 | 8113637 | SPACING BAR |
| 3 | 8012081 | SUPPORT [from 05-92] |
| 4 | 8114174 | RETAINER |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605424 | SCREW M8X16 MM (8.8) |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 9 | 8012091 | LEVER [from 05-92] |
| 10 | 8114173 | RETAINER |
| 11 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
