8061SRM25.33

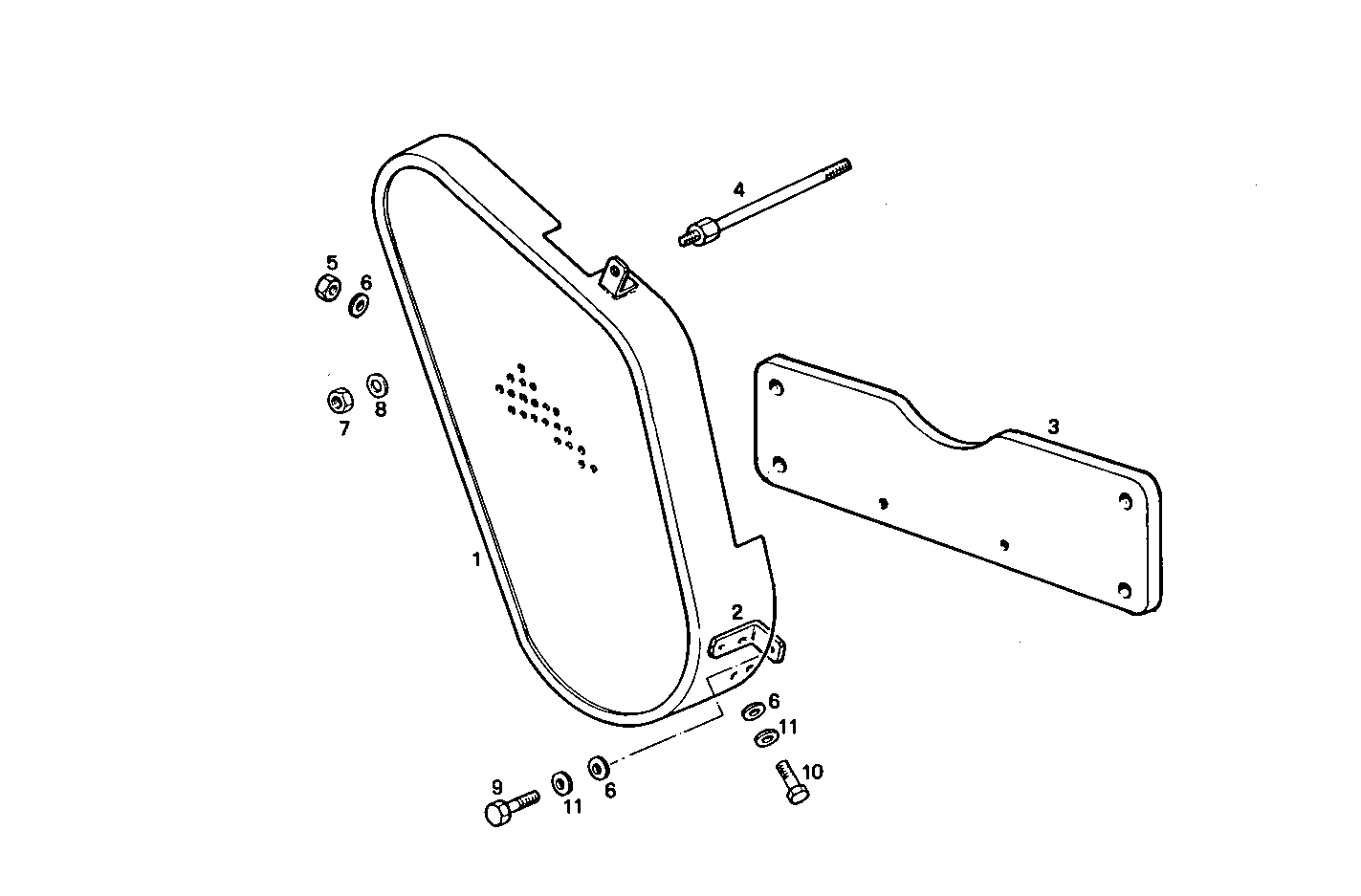

A48020026 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8019993 | PROTECTION |
| 2 | 8019996 | RETAINER |
| 3 | 8020043 | PLATE |
| 4 | 8013196 | STUD |
| 5 | 16979431 | NUT M8 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 17094914 | WASHER 8x16 |
