8061SRM25.42

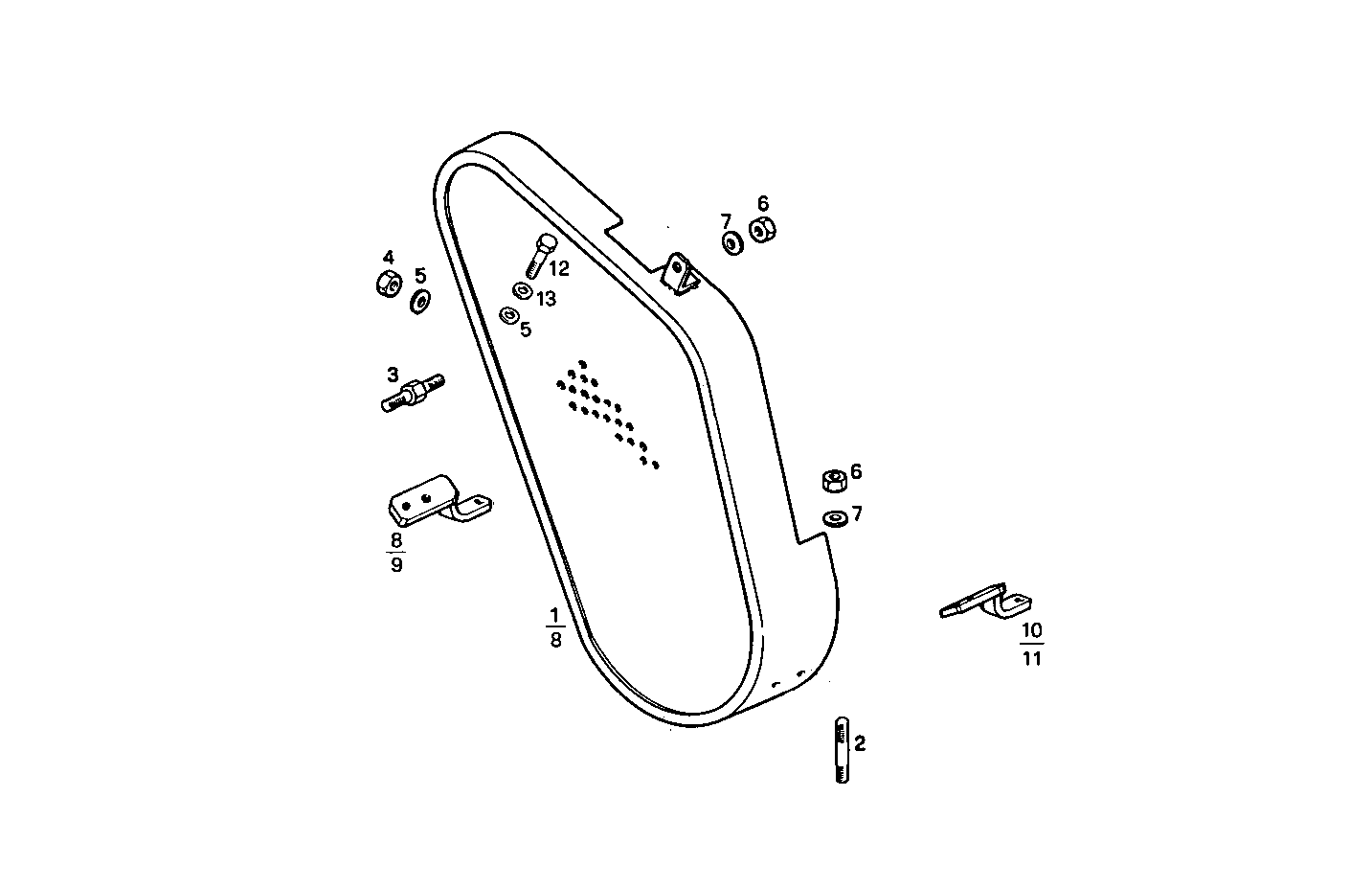

A48020025 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8019993 | PROTECTION |
| 2 | 13451921 | STUD M10X1,25X140 |
| 3 | 8013196 | STUD |
| 4 | 16979431 | NUT M8 |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8022752 | RETAINER [from 06-96] |
| 9 | 8019994 | RETAINER [up to 06-96] |
| 10 | 8022773 | RETAINER [from 06-96] |
| 11 | 8019995 | RETAINER [up to 06-96] |
| 12 | 16605424 | SCREW M8X16 MM (8.8) |
| 13 | 17094914 | WASHER 8x16 |
