8061SRM27.10

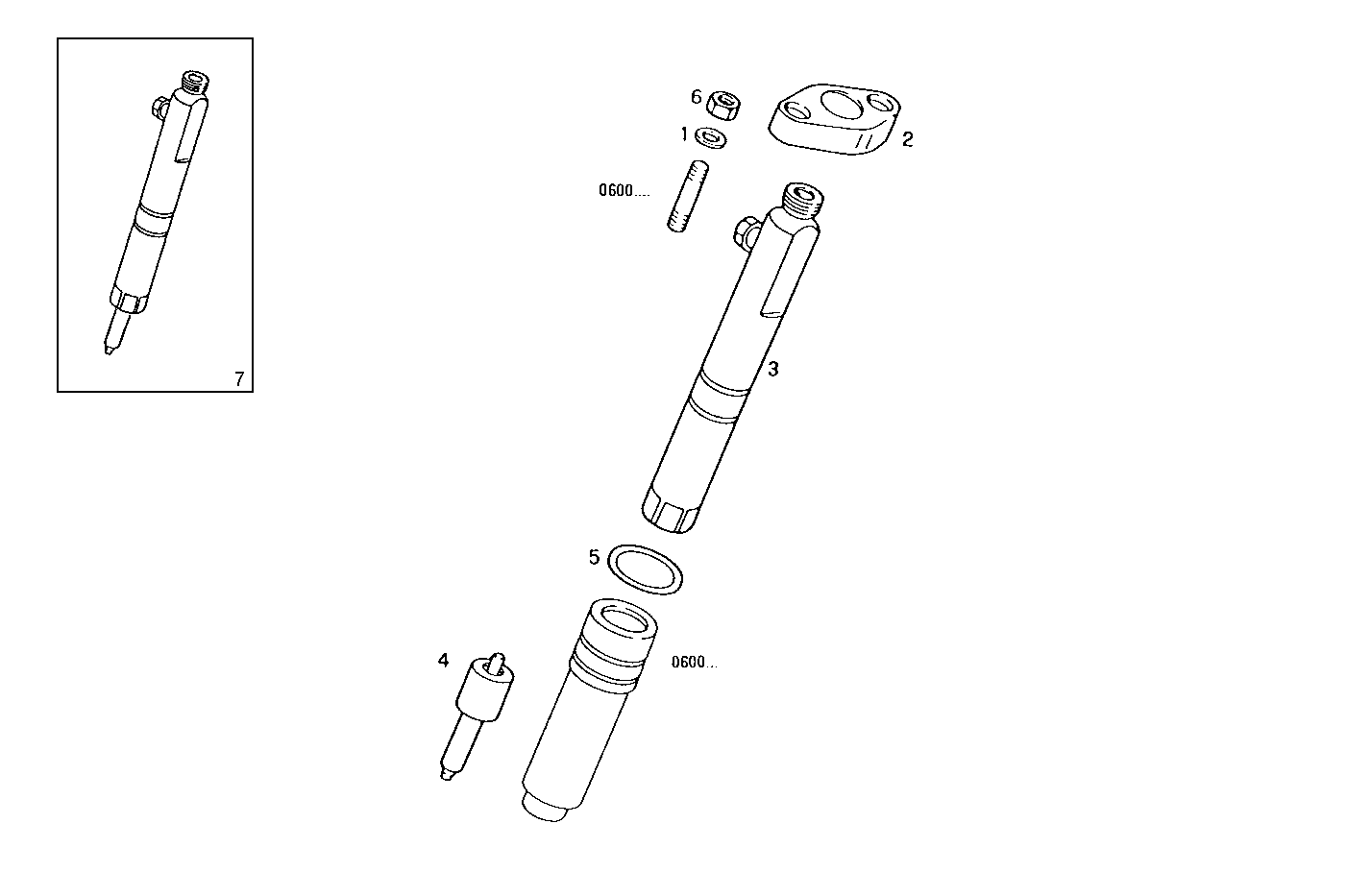

1420.100 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 771326 | WASHER Ø11,5 MM |
| 2 | 4780612 | FASTENING BRACKET |
| 3 | 8012621 | NOZZLE HOLDER ASSY STANADYNE |
| 4 | 8012677 | FUEL NOZZLE |
| 5 | 17278589 | O-RING Ø18,77 MM SP=1,78 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 8011945 | NOZZLE |
