8061SRM27.10

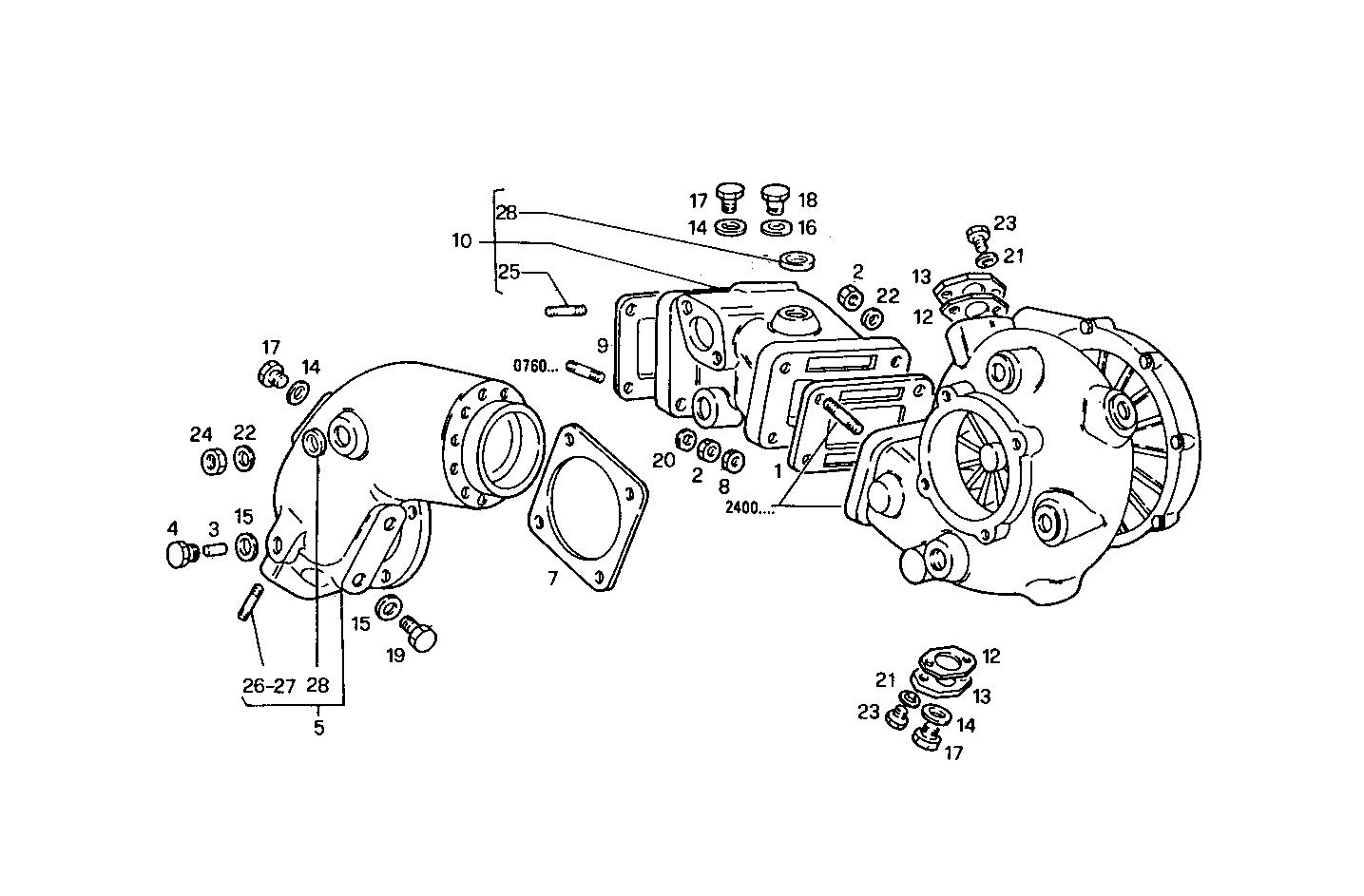

2420.010 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 4632123 GASKET
2 4927248 NUT M10X1,25
3 8105277 SACRIFICAL ANODE Ø14 MM
4 4917793 PLUG M18
5 8102479 EXHAUST COOL. ELBOW ASSY
7 8009599 GASKET
8 8100961 NUT M10X1,25
9 8100140 GASKET
10 8102472 EXHAUST ELBOW ASSY
12 8009916 GASKET
13 8110641 COVER
14 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
15 10259960 WASHER Ø18,2X24 MM SP=1,5 MM
16 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
17 10300540 PLUG M12X1,5
18 16992440 THREADED PLUG M16X1,5
19 10300840 LOCK PLUG M18X1,5
20 10730501 WASHER Ø10,2 MM
21 11197779 SPRING WASHER Ø6X12 MM
22 11198379 SPRING WASHER Ø10X20 MM SP=2,6
23 10902521 HEXAGON BOLT M6X22 MM (8.8)
24 12164711 HEXAGON NUT M10X1,25
25 13516821 STUD M8X12X20 MM
26 13517021 STUD M8X25 MM
27 13517221 STUD M8X12X30 MM
28 14282470 LOCK PLUG Ø28 MM
