8061SRM27.10

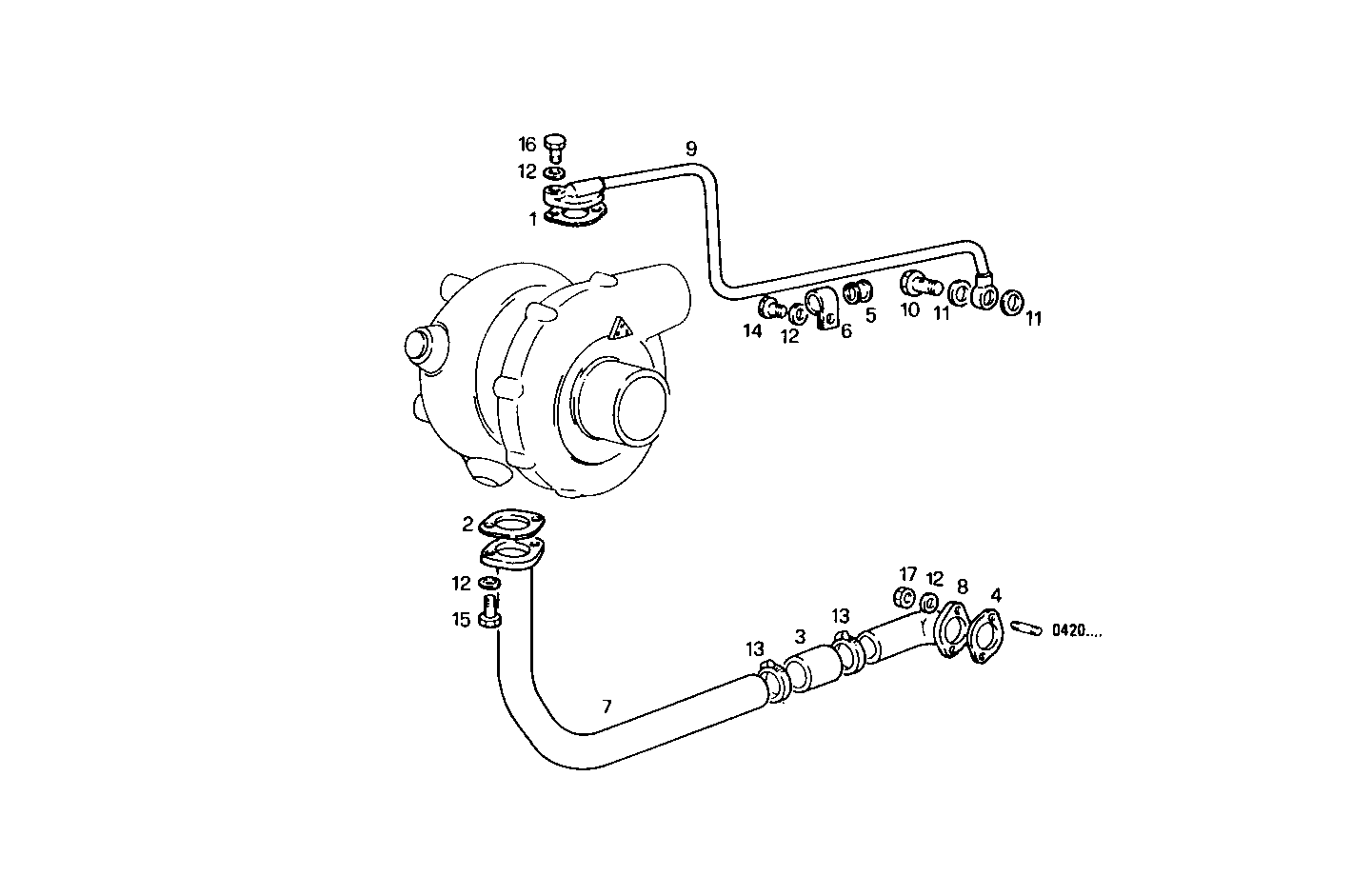

3010.013/03 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4626981 | FLAT ENGINE GASKET |
| 2 | 8009916 | GASKET |
| 3 | 4780206 | RUBBER SLEEVE |
| 4 | 98482697 | GASKET |
| 5 | 4755964 | RUBBER PAD |
| 6 | 4755963 | FASTENING BRACKET |
| 7 | 8108286 | OIL LINE |
| 8 | 8108287 | OIL LINE |
| 9 | 8108285 | OIL LINE |
| 10 | 10184417 | SCREW CONNECTOR M16X1,5 |
| 11 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
| 12 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 13 | 17764592 | CLIP Ø20/32 MM |
| 14 | 16043221 | HEXAGON BOLT M8X16 MM |
| 15 | 16043621 | HEXAGON BOLT M8X25 MM |
| 16 | 16625734 | HEXAGON BOLT M8X35 |
| 17 | 17037931 | HEXAGON NUT M8X1,25 |
