8061SRM27.10

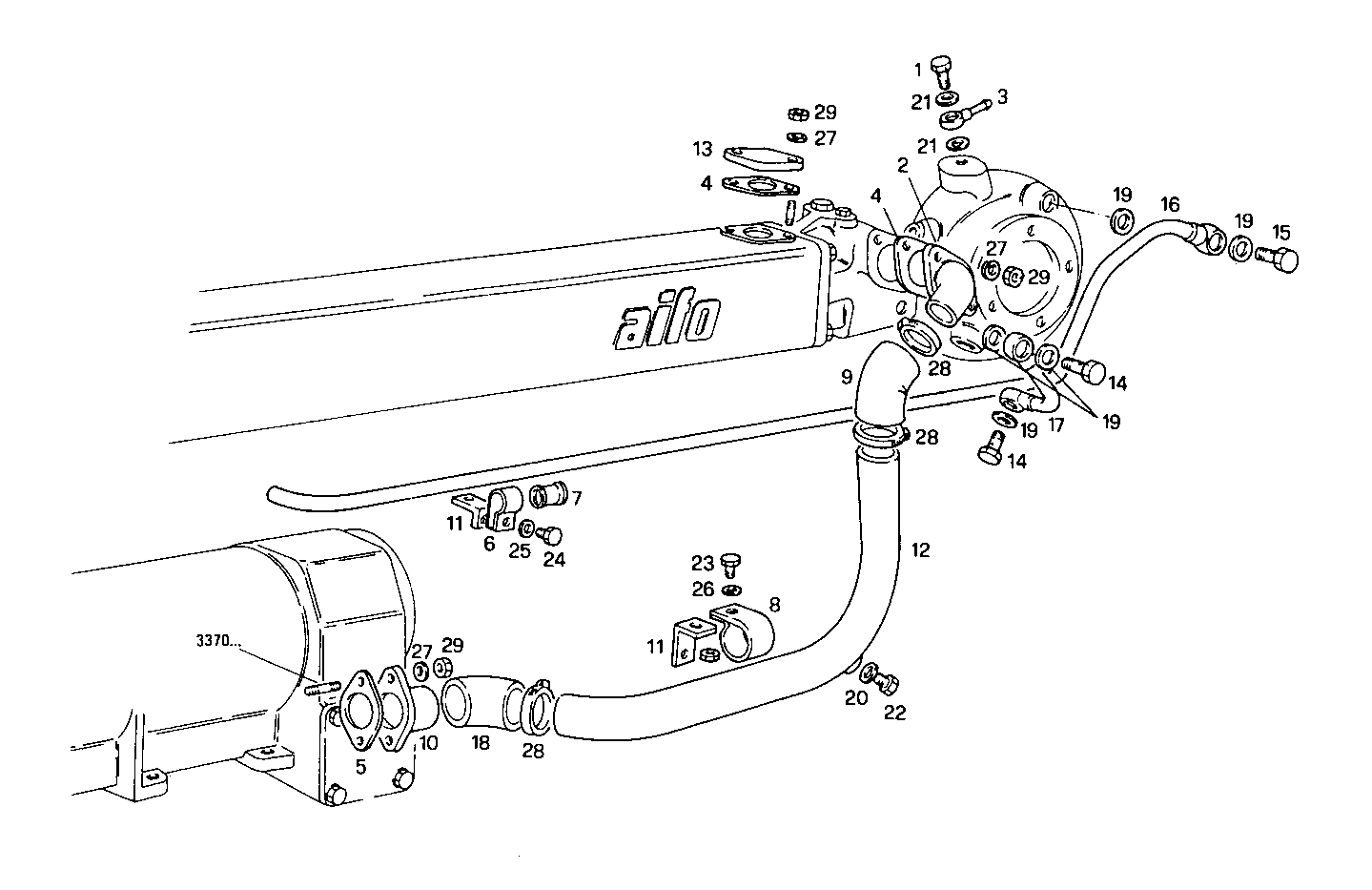

3210.017/03 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4927823 | SCREW CONNECTOR |
| 2 | 4919235 | WATER PIPE |
| 3 | 4636689 | SWIVEL COUPLING |
| 4 | 4918835 | GASKET |
| 5 | 4599562 | FLAT ENGINE GASKET |
| 6 | 4755963 | FASTENING BRACKET |
| 7 | 4755964 | RUBBER PAD |
| 8 | 4936741 | CLIP |
| 9 | 4604779 | WATER HOSE |
| 10 | 8100081 | WATER PIPE |
| 11 | 8102227 | RETAINER |
| 12 | 8108306 | WATER PIPE |
| 13 | 8100154 | COVER |
| 14 | 8108997 | SCREW CONNECTOR |
| 15 | 8110643 | SCREW CONNECTOR |
| 16 | 8110625 | WATER PIPE |
| 17 | 8110543 | WATER PIPE |
| 18 | 10136187 | RUBBER SLEEVE |
| 19 | 10263460 | WASHER Ø22X28X1,5 MM |
| 20 | 10284460 | SEAL GASKET Ø10X16 MM |
| 21 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
| 22 | 11903040 | LOCK PLUG M10X1 |
| 23 | 10902121 | HEXAGON BOLT M6X14 MM |
| 24 | 10979421 | HEXAGON BOLT M6X10 MM |
| 25 | 11197779 | SPRING WASHER Ø6X12 MM |
| 26 | 17088474 | WASHER Ø6X12 MM |
| 27 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 28 | 12177090 | CLIP Ø32-52 MM |
| 29 | 17037931 | HEXAGON NUT M8X1,25 |
